L 120 JMG crane - load chart, specs & dimensions (2025 - 2026)

max. carrying capacity: 12t – Carrying capacity: 1.8t – at max. reach: 7.77m – max. standard boom: 6.07m – Min. standard boom: 1m …

max. carrying capacity: 12t – Carrying capacity: 1.8t – at max. reach: 7.77m – max. standard boom: 6.07m – Min. standard boom: 1m – max. hook height: 9m

See load chart, specs, capacity, size and other technical data for JMG L 120 crane manufactured between 2025 - 2026. See information, like: max. carrying capacity: 12t – Carrying capacity: 1.8t – at max. reach: 7.77m – max. standard boom: 6.07m – Min. standard boom: 1m – max. hook height: 9m and more.

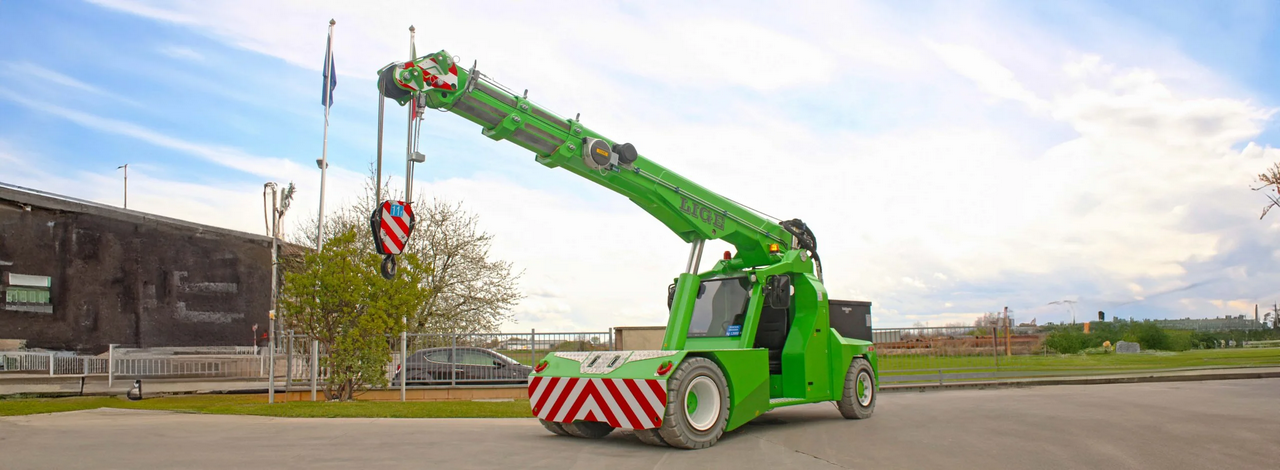

Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120
Industrial mobile cranes JMG L 120

Technical specs - L 120 JMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
12 t
Carrying capacity
1.8 t
at max. reach
7.77 m
max. standard boom
6.07 m
Min. standard boom
1 m
max. hook height
9 m
Power source
Electric
Engine power
20 kW
Standard tyres
Fr. 4x 4x300-15
Weight
12.3 t
Number of axles
2
Model series
L

More technical details, like: at reach, load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: at reach, load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
No
MOT approval
No
Add. hook
No
