QUY80 XCMG crane - load chart, specs & dimensions (2017 - 2026)

The QUY80 crawler crane - lattice boom model is manufactured by XCMG. Find and download detailed specs and data sheets for this ma…

The QUY80 crawler crane - lattice boom model is manufactured by XCMG. Find and download detailed specs and data sheets for this machine here.

It has an engine performace of 200kW or 268 horse power. The XCMG QUY80 can be grouped in the smallest machine segment in the crawler crane - lattice boom category. The max. Standard boom of this XCMG model is 58m. The XCMG QUY80 can carry up to 80t. 13m is the min. Standard boom for the XCMG QUY80 crane. XCMG QUY80 has 3375kNm in load torque.

It does not include Add. Ballast, Tip extension and Basic boom. Find detailed specifications and machine details in the original XCMG QUY80 datasheet.

Manufacturing of this model is still ongoing.

Want more detailed specifications? Download the latest XCMG QUY80 specs data sheet on LECTURA Specs today!

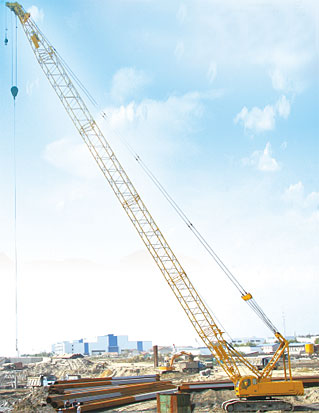

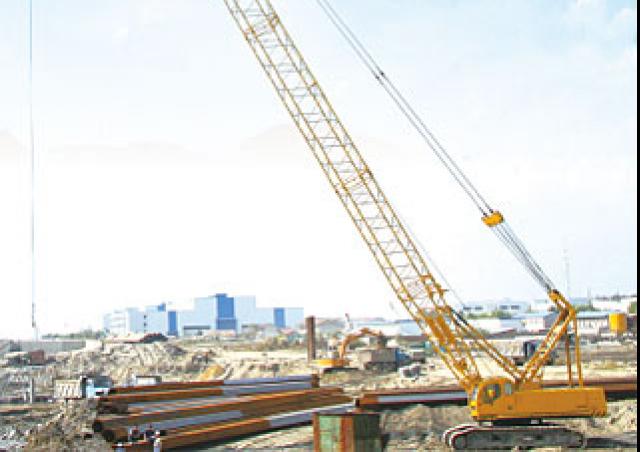

Crawler cranes - Lattice boom XCMG QUY80

Visit XCMG live at

Technical specs - QUY80 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
80 t
at reach
4 m
Carrying capacity
4.93 t
at max. reach
30 m
max. standard boom
58 m
Min. standard boom
13 m
Max. luffing jib
18 m
max. hook height
58 m
Load Torque
3375 kNm
Engine power
200 kW
Travel speed
1.2 km/h
Soil pressure
0.89 kg/cm²
Model series
QUY
Engine manuf.
N/A
Engine type
N/A

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
Add. ballast
No
Basic boom
No
Tip extension
No
