Manitowoc 8500-1
- max. carrying capacity:
- 80 t
- at reach:
- 12.2 m
- Carrying capacity:
- 1.4 t
- at max. reach:
- 61 m

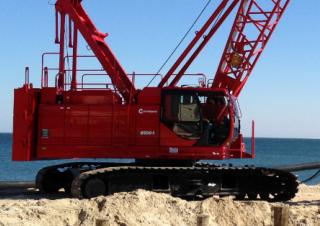

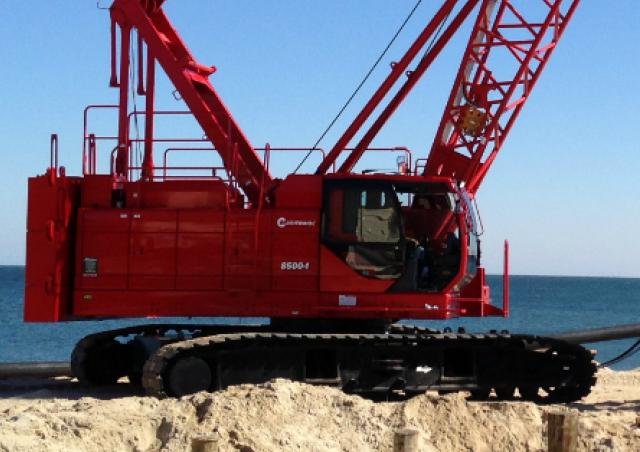

Manitowoc 8500-1 crane - load chart, specs & dimensions (2008 - 2019)
.jpg)
Technical specs - 8500-1 Manitowoc
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 80 t
- at reach
- 12.2 m
- Carrying capacity
- 1.4 t
- at max. reach
- 61 m
- max. standard boom
- 54.9 m
- Min. standard boom
- 12.2 m
- Max. luffing jib
- 18.3 m
- Engine power
- 213 kW
- Travel speed
- 1.73 km/h
- Model series
- 1
- Engine manuf.
- Hino
- Engine type
- J08E-UV
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 1017 Nm
- No. of cylinders
- 6
- Emission level
- Tier 4. IIIB
More technical details, like: max. hook height, load torque, soil pressure, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- Add. ballast
-
No
- Basic boom
-
No
- Tip extension
-
No
