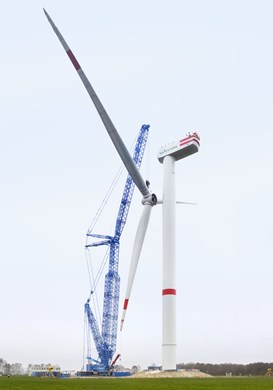

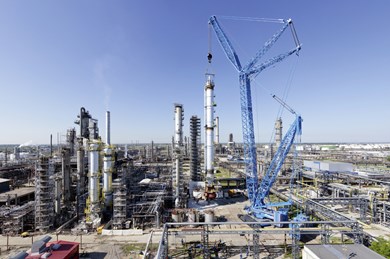

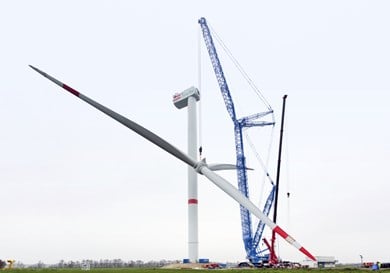

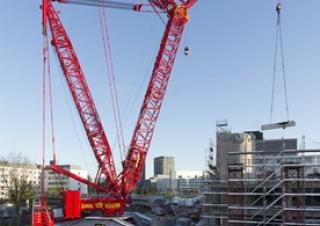

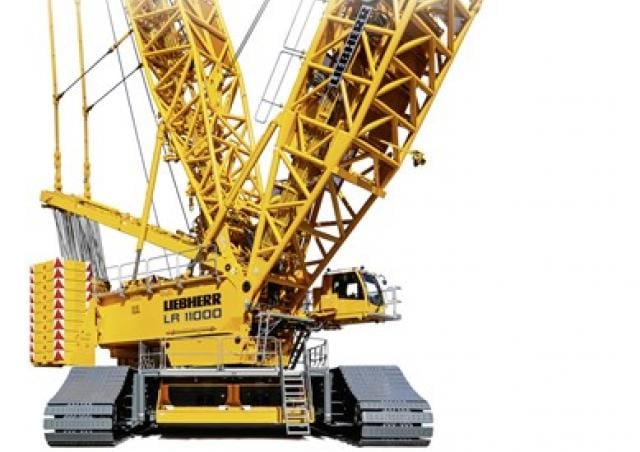

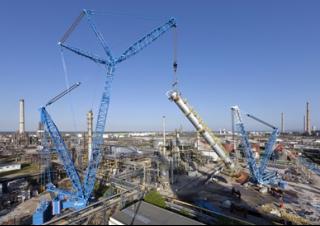

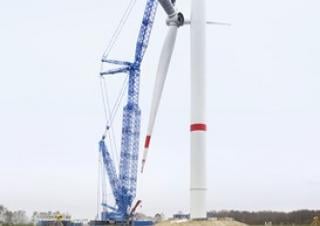

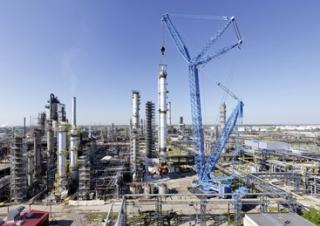

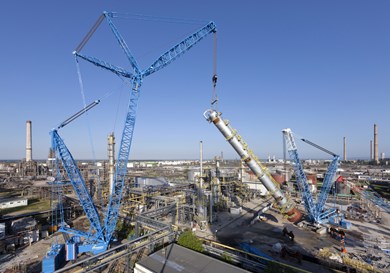

Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000
Crawler cranes - Lattice boom Liebherr LR 11000

Visit Liebherr live at

Technical specs - LR 11000 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
1000 t
at reach
11 m
Carrying capacity
6.7 t
at max. reach
184 m
max. standard boom
168 m
Min. standard boom
18 m
Max. luffing jib
114 m
max. hook height
220 m
Load Torque
15171 kNm
Engine power
500 kW
Travel speed
1.36 km/h
Model series
LR
Engine manuf.
Liebherr
Engine type
N/A
Max. torque
3068 Nm
No. of cylinders
8
Emission level
EPA

More technical details, like: soil pressure, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
Yes
Add. ballast
Yes
Basic boom
Yes
Tip extension
Yes

Download datasheets (PDF)
