7055 Kobelco crane - load chart, specs & dimensions (2017 - 2026)

max. carrying capacity: 55t – at reach: 3.7m – Carrying capacity: 1.1t – at max. reach: 38m – max. standard boom: 51.8m – Min. sta…

max. carrying capacity: 55t – at reach: 3.7m – Carrying capacity: 1.1t – at max. reach: 38m – max. standard boom: 51.8m – Min. standard boom: 9.1m

See load chart, specs, capacity, size and other technical data for Kobelco 7055 crane manufactured between 2017 - 2026. See information, like: max. carrying capacity: 55t – at reach: 3.7m – Carrying capacity: 1.1t – at max. reach: 38m – max. standard boom: 51.8m – Min. standard boom: 9.1m and more.

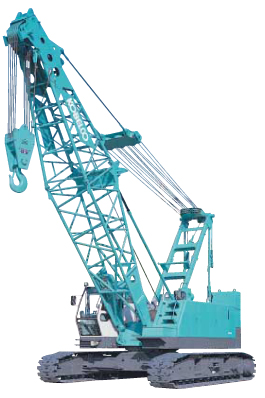

Crawler cranes - Lattice boom Kobelco 7055

Visit Kobelco live at

Technical specs - 7055 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
55 t
at reach
3.7 m
Carrying capacity
1.1 t
at max. reach
38 m
max. standard boom
51.8 m
Min. standard boom
9.1 m
Max. luffing jib
29 m
Engine power
159 kW
Travel speed
2.22 km/h
Soil pressure
0.74 kg/cm²
Engine manuf.
Hino
Engine type
J08E-VV

More technical details, like: max. hook height, load torque, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
Add. ballast
No
Basic boom
Yes
Tip extension
No

Download datasheets (PDF)

Kobelco 7055 overview

Hydraulic

Hydraulic System

Three variable displacement piston pumps are driven by heavy-duty pump drive. Two of the variable displacement pumps are used in the main hook hoist circuit, boom hoist circuit, auxiliary hook hoist circuit, third hoist circuit, and each propel circuit. The other is used in the swing circuit. Control: Full-flow hydraulic control system for infinitely variable pressure to front and rear drums, boom hoist brakes, and clutches. Controls respond instantly to the touch, delivering smooth function operation. Cooling: Oil-to-air heat exchanger (plate-fin type). Filtration: Full-flow and bypass type with replaceable element. Electrical system: All wiring corded for easy servicing, individual fused branch circuits. Max. relief valve pressure: Load hoist, boom hoist, and propel system: 31.9 MPa (325 kgf/cm²); Swing system: 27.5 MPa (280 kgf/cm²); Control system: 7.0 MPa (71 kgf/cm²). Reservoir capacity: 440 liters.


Boom

Boom Hoisting System

Powered by a hydraulic motor through a planetary reducer. Brake: A spring-set, hydraulically released multiple-disc brake is mounted on the boom hoist motor and operated through a counter-balance valve. Drum lock: External ratchet for locking drum. Drum: Single drum, grooved for 16 mm dia. wire rope. Line speed: Single line on first drum layer Hoisting/Lowering: 70 to 2 m/min
