XCA220 XCMG crane - load chart, specs & dimensions (2019 - 2026)

max. carrying capacity: 220t – at max. reach: 108.2m – max. standard boom: 73m – Min. standard boom: 13.4m – Superstructure engine…

max. carrying capacity: 220t – at max. reach: 108.2m – max. standard boom: 73m – Min. standard boom: 13.4m – Superstructure engine: 361.1kW – Travel speed: 84km/h

See load chart, specs, capacity, size and other technical data for XCMG XCA220 crane manufactured between 2019 - 2026. See information, like: max. carrying capacity: 220t – at max. reach: 108.2m – max. standard boom: 73m – Min. standard boom: 13.4m – Superstructure engine: 361.1kW – Travel speed: 84km/h and more.

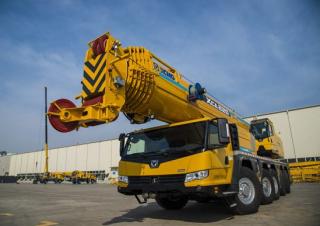

All-terrain Cranes XCMG XCA220

Visit XCMG live at

Technical specs - XCA220 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
220 t
at max. reach
108.2 m
max. standard boom
73 m
Min. standard boom
13.4 m
Superstructure engine
361.1 kW
Travel speed
84 km/h
Number of axles
5
axle load
12×3+9.5×2 t
Model series
XCA
Engine manuf.
Mercedes
Engine type
OM460LA.E3B/3
Engine power
361 kW
Revolutions at max torque
1300 rpm
Max. torque
2200 Nm

More technical details, like: at reach, carrying capacity, max. luffing jib, max. hook height, load torque, undercarriage engine, wheels/drive/steering, standard tyres, tipping load, outriggers spacing length, outriggers spacing width, dimension lxwxh...

More technical details, like: at reach, carrying capacity, max. luffing jib, max. hook height, load torque, undercarriage engine, wheels/drive/steering, standard tyres, tipping load, outriggers spacing length, outriggers spacing width, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
max. fold hydr.
No
Erection tip
No
Foucault current brake
No
Add. ballast
No
