STC500T5 Sany crane - load chart, specs & dimensions (2025 - 2026)

max. carrying capacity: 50t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 33.8m – max. standard boom: 44.5m – Min. sta…

max. carrying capacity: 50t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 33.8m – max. standard boom: 44.5m – Min. standard boom: 11.55m

See load chart, specs, capacity, size and other technical data for Sany STC500T5 crane manufactured between 2025 - 2026. See information, like: max. carrying capacity: 50t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 33.8m – max. standard boom: 44.5m – Min. standard boom: 11.55m and more.

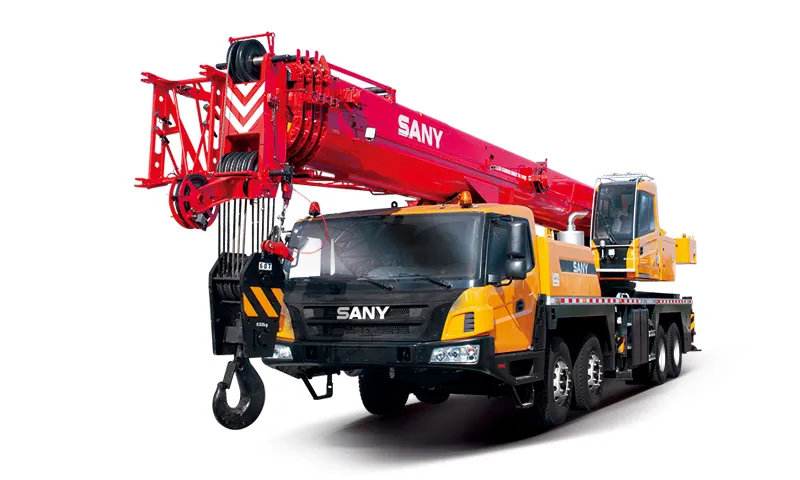

All-terrain Cranes Sany STC500T5

Visit Sany live at

Technical specs - STC500T5 Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
50 t
at reach
3 m
Carrying capacity
0.6 t
at max. reach
33.8 m
max. standard boom
44.5 m
Min. standard boom
11.55 m
Max. luffing jib
60.5 m
max. hook height
61 m
Load Torque
2058 kNm
Travel speed
85 km/h
Number of axles
4
Wheels/Drive/Steering
8x4x4
axle load
42 t
Standard tyres
315/80R22.5
Outriggers spacing length
6.05 m
Outriggers spacing width
7.4 m
Model series
STC
Engine manuf.
Cummins China
Engine type
ISLe340 30
Engine power
250 kW
Revolutions at max torque
2100 rpm
Max. torque
1425/1400 Nm
No. of cylinders
6
Emission level
Euro III

More technical details, like: undercarriage engine, superstructure engine, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
max. fold hydr.
No
Erection tip
No
Foucault current brake
No
Add. ballast
No
