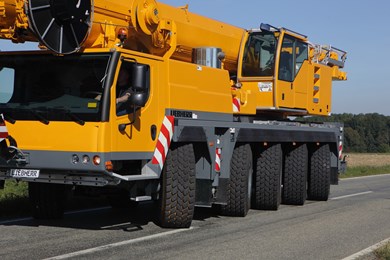

P2 All-wheel steering

The axles 3, 4 and 5 are turned depending on the axle lock of the front axles by the steering wheel so far that the smallest turning radii are achieved.

P3 Crab steering

The axles 3, 4 and 5 are turned in the same direction as the wheel lock on axles 1 and 2 by the steering wheel.

P4 Reduced swing out

The axles 3, 4 and 5 are turned depending on the axle lock of the front axles, so that the swing out of the chassis rear gets minimized.

Intelligent crane control

The soft and hardware of the mobile crane control is developed by Liebherr in-house. The centre is the LICCON computer system (Liebherr Computed Control). Integrated LML load moment limiter. Key components are in-house manufactured by Liebherr. Guaranteed spare parts availability. Worldwide proven under the most different climate conditions. Operator friendly. The second control generation LICCON2 is the result of a continuous development by the Liebherr specialists and enables the adaption to the constantly increasing demands of the markets due to its modern and future-oriented control.

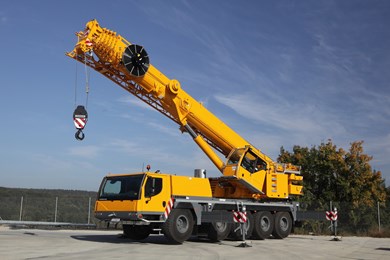

Supporting the crane

By use of the BTT, the mobile crane will be set up comfortably and safely. Engine start/stop and speed regulation, electronic inclination display, and automatic levelling are standard. Optionally, the BTT can also display the outrigger forces.

Touch display

Below the joysticks integrated in the armrest, touch displays are provided with which various working functions can be selected. Among others, these are the drive and steering programmes of the carrier, the supporting of the crane, the adjustment of the working floodlights, as well as the heating and ventilation control.

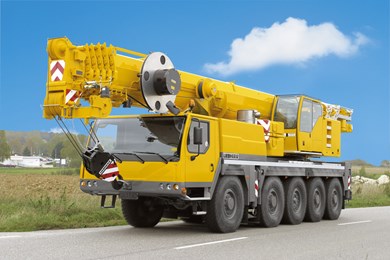

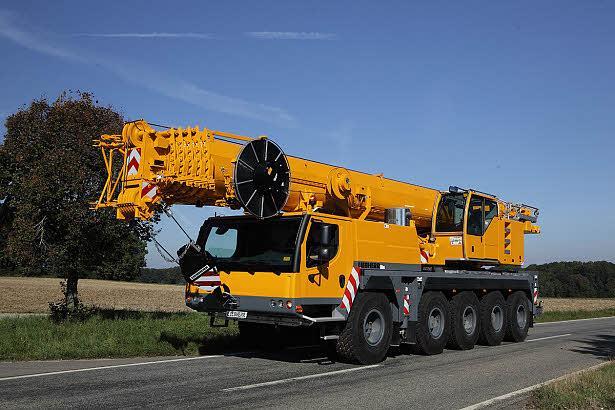

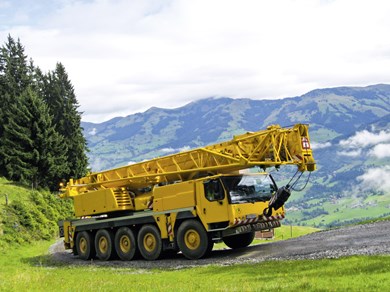

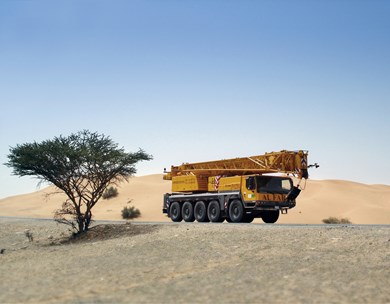

Most modern chassis and drive technology

A powerful 6-cylinder Liebherr turbo-diesel engine with 370 kW/503 HP ensures swift driving performance. The automatic 12-speed power shift system ZF-AS-TRONIC with intarder provides a high level of cost effectiveness and excellent comfort. Reduced fuel consumption due to the large number of gears and the high efficiency of the dry clutch. Best manoeuvrability and minimum crawling speed due to 2-stage distribution gearbox. Wear free braking with ZF-intarder. Telma eddy current brake optional, wear free and comfortable.

Modern driver’s cab and crane cab

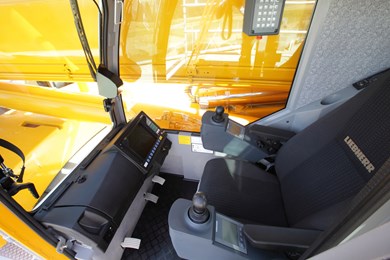

Both the modern driver’s cab and the rearwards tiltable crane cab offer a comfortable and functional working environment. The control elements and displays are ergonomically arranged. Thus a safe and fatigue free working is assured.

The fully automatic telescoping system TELEMATIK

Increase of capacities at long booms and wider radii due to "light" telescoping system. Single stage hydraulic cylinder with hydraulically activated drive pin. Maintenance free telescoping system. Telescoping fully automatic. Simple operation, monitoring of the telescoping procedure at LICCON-monitor.

High-power crane drive

The drive components for crane operation are designed for high performance and ensure sensitive and precise load handling. They are specially designed to suit the crane’s usage and have been subjected to hard endurance tests.Crane engine: 4-cylinder Liebherr turbo diesel engine, 129 kW/175 HP, max. torque 815 Nm, optimised fuel consumption due to electronic engine managementDiesel-hydraulic crane drive, open hydraulic circuits with electronic “LOAD SENSING” control, 4 working movements simultaneously possibleElectric/electronic SPS crane control through the LICCON computer systemComfortable armrest controls with 2 self-centering 4-fold multifunctional joysticks, stepless control of all crane motions, with winch and slewing gear indicators, electronic precontrolSlewing system changeable from open to hydraulically locked as standard, thus the movement can be adjusted to the different operational conditions, e. g. sensitive control for assembly work or fast cycle work.

The LICCON work planner

Computer programme for planning, simulating and documenting crane operations on a PC. Representation of all the crane's load charts. Automatic search for suitable crane based on load, radius and lifting height parameters. Simulation of crane operations with outline functions and supporting force display.

Attaching and detaching of the hook block

The BITT – Bluetooth Terminal offers the crane driver the possibility to attach or detach the hook block at the front of the vehicle within sight, as the hoist winch and the luffing cylinder of the telescopic boom are remote controlled.

Wireless remote control (option)

All crane motions can be controlled outside of the cab. Higher efficiency. Free view and closeness to the load. Prevention of communication errors between the crane driver and the job site personnel.

Colour monitor

The readability of the data on the monitor of the LICCON2 control system in the crane cab is enhanced by the colour display. Warnings and crane utilization are considerably better recognized.

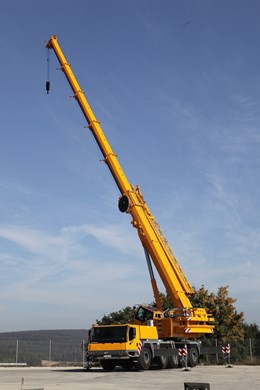

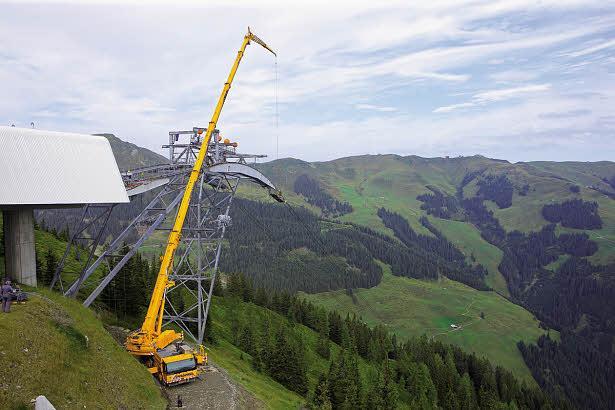

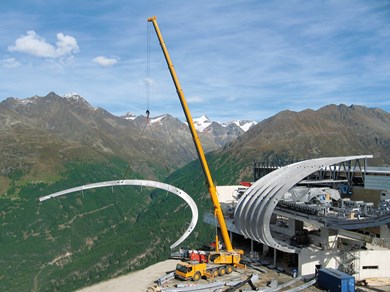

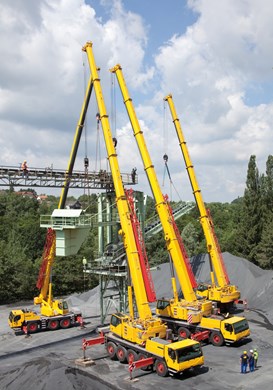

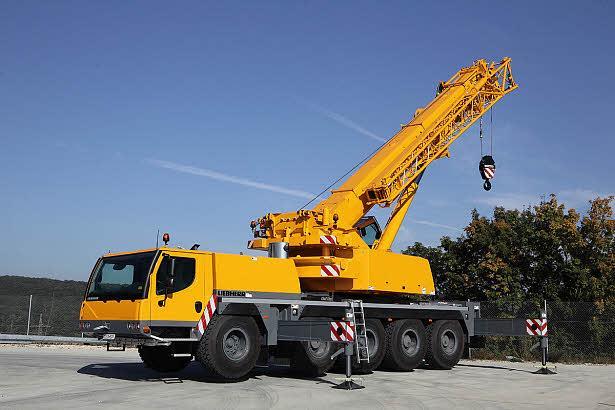

High-capacity, long telescopic boom and functional lattice extensions

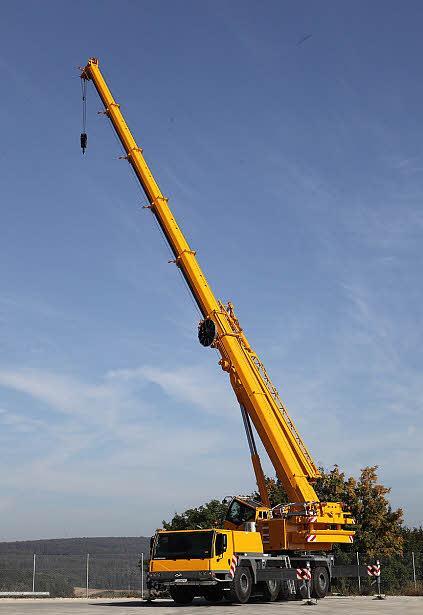

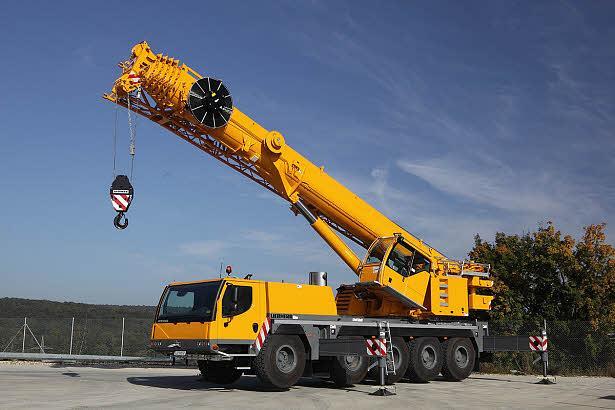

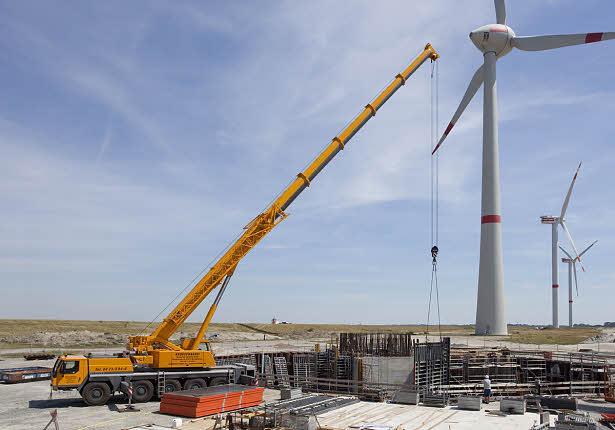

The telescopic boom comprises of the base section and 5 telescopic sections, which can be comfortably and automatically extended and pinned to the requested lengths by the thousand fold proven single cylinder telescoping system TELEMATIK. 58 m long telescopic boom. 10.5 m – 19 m long double swing away jib, attachable at 0°, 20° and 40°. Hydraulic adjustment of the swing away jib under full load from 0° - 40° (option), interpolation of the load charts. Hydraulic assembly assistance for attaching of the swing away jib with the BTT. 7 m section for extending the telescopic boom for operation with swing away jib.

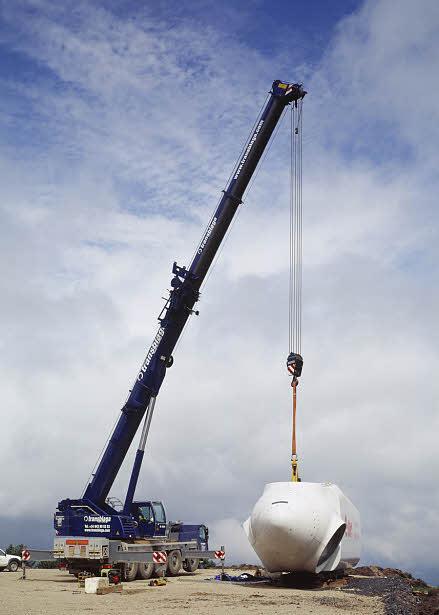

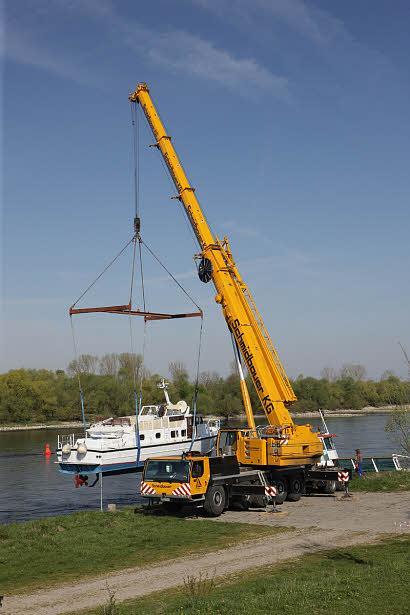

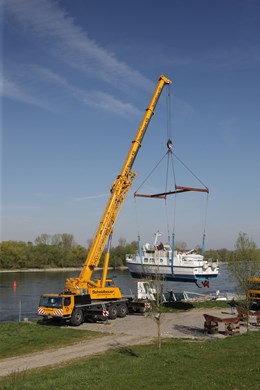

High lifting capacities both with full and partial counterweight offer a wide operational range

High lateral stability due to the oval boom profile. Optimised load charts due to multitude of extension versions. Load 6.4 t at 58 m long telescopic boom.

High capacities at unpinned telescopic lengths

High telescopable loads due to interpolation. Separate load charts for holding the loads at unpinned telescopic lengths. Display at LICCON-monitor.
