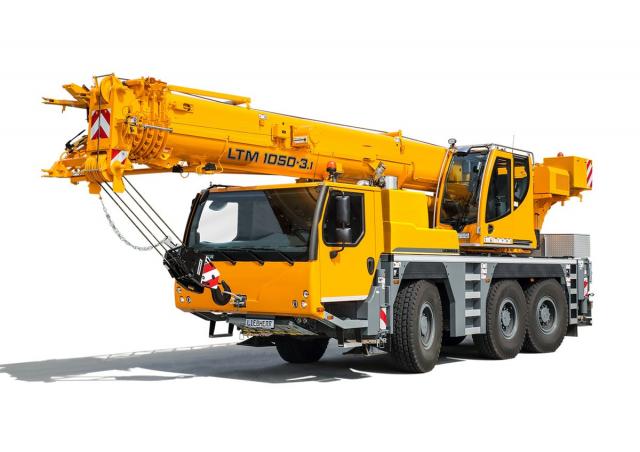

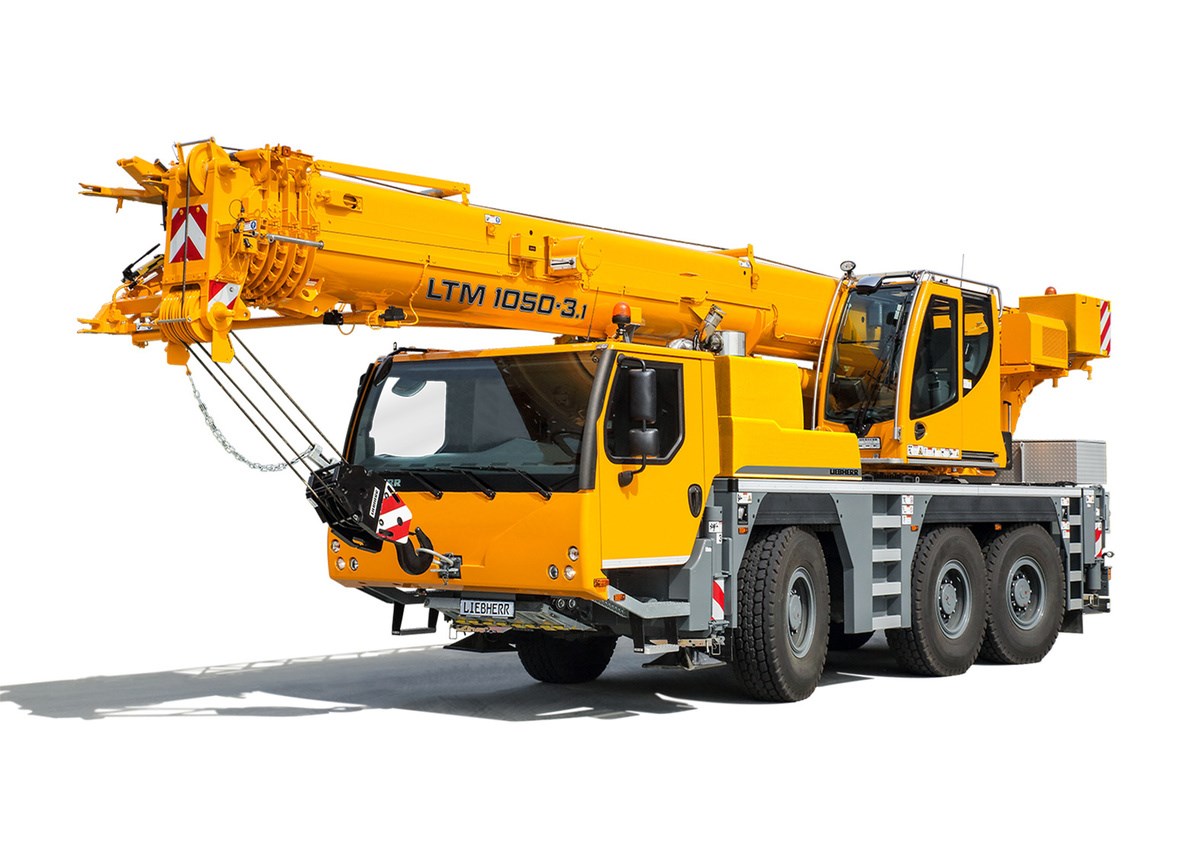

Liebherr LTM 1050-3.1
- max. carrying capacity:
- 50 t
- at reach:
- 3 m
- Carrying capacity:
- 0.6 t
- at max. reach:
- 44 m
Liebherr LTM 1050-3.1 crane - load chart, specs (2021 - 2025)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - LTM 1050-3.1 Liebherr
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 50 t
- at reach
- 3 m
- Carrying capacity
- 0.6 t
- at max. reach
- 44 m
- max. standard boom
- 38 m
- Min. standard boom
- 11.4 m
- Max. luffing jib
- 16 m
- max. hook height
- 54 m
- Load Torque
- 1760 kNm
- Undercarriage engine
- 270 kW
- Travel speed
- 80 km/h
- Number of axles
- 3
- Wheels/Drive/Steering
- 6/6/6
- Standard tyres
- 385/95 R25
- Outriggers spacing length
- 7.151 m
- Outriggers spacing width
- 6.4 m
- Model series
- LTM
- Engine manuf.
- Liebherr
- Engine type
- N/A
- Engine power
- 270 kW
- Max. torque
- 1965 Nm
- No. of cylinders
- 6
- Emission level
- EPA
More technical details, like: superstructure engine, axle load, tipping load, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
Yes
- max. fold hydr.
-
No
- Erection tip
-
Yes
- Foucault current brake
-
No
- Add. ballast
-
Yes
