max. carrying capacity: 100t – at reach: 2.4m – Carrying capacity: 1t – at max. reach: 53m – max. standard boom: 60m – Min. standa…
max. carrying capacity: 100t – at reach: 2.4m – Carrying capacity: 1t – at max. reach: 53m – max. standard boom: 60m – Min. standard boom: 11.7m

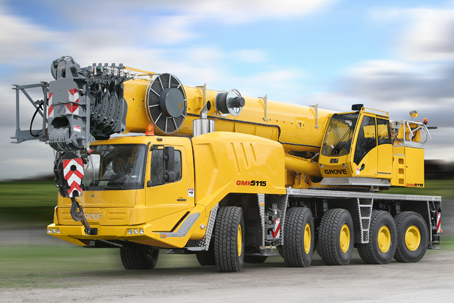

See load chart, specs, capacity, size and other technical data for Grove GMK5115 crane manufactured between 2008 - 2017. See information, like: max. carrying capacity: 100t – at reach: 2.4m – Carrying capacity: 1t – at max. reach: 53m – max. standard boom: 60m – Min. standard boom: 11.7m and more.
More technical details, like: load torque, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.
1st axle line – steer 2nd axle line – drive/steer 3rd axle line – steer (optional drive off-highway) 4th axle line – drive/steer (connects for all wheel steer) 5th axle line – drive/steer. Drive axles with planetary hub reduction and center mounted differential-gearing. Inter-axle and cross axle differential locks.
Suspension
Exclusive MEGATRAK™ suspension. Independent hydro-pneumatic system acting on all wheels with hydraulic lockout. Suspension can be raised 170 mm (6.7 in) or lowered 130 mm (5.1 in) both longitudinally and transversely. Features an automatic leveling system for highway travel.
Steering
Dual circuit, hydraulic power assisted steering system. Transfer case mounted, ground driven emergency steering pump. Axles 1, 2, 3 and 5 steer on highway. Separate steering of the 4th and 5th axles for all wheel and crab steering, controlled by an electronic rocker switch.
Brakes
Service brakes: pneumatic dual circuit acting on all wheels, anti lock prevention. Parking brake: pneumatically operated spring loaded brake acting on axle lines 2, 4 and 5. Air dryer.
Specification & technical data
EKS 5 Light
Monitoring the lifting condition of the crane at all times EKS works together with, but independently of the ECOS as a complete command and control system or separately as a load moment indicator.
Ecos
Electronic Crane Operating System - ECOS enables control of the entire crane's principle operations. Simple programming eases lift planning and a supply of essential information allows full concentration on the lift itself.
Cranes control system
Full electronic control of all crane movements using electrical control levers with automatic reset to zero. Controls are integrated with the LMI and engine management system by CAN-BUS. ECOS system with graphic display.
Counterweight
27 100 kg (59,700 lb) consisting of various sections with hydraulic installation/removal system. Controlled from the superstructure cab.
Hydraulic system
2 separate circuits, 1 axial piston variable displacement pump (load sensing) with electronic power limiting control and 1 gear pump for swing. Dual thermostatically controlled oil coolers keep oil at optimum operating temperature. Tank capacity: 600 L (158 gal).
