V 120 Yanmar V 120 Specifications & Technical Data (2016—2024)

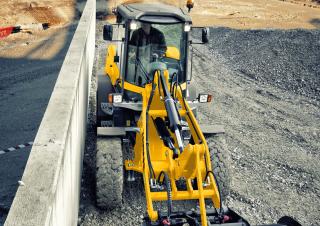

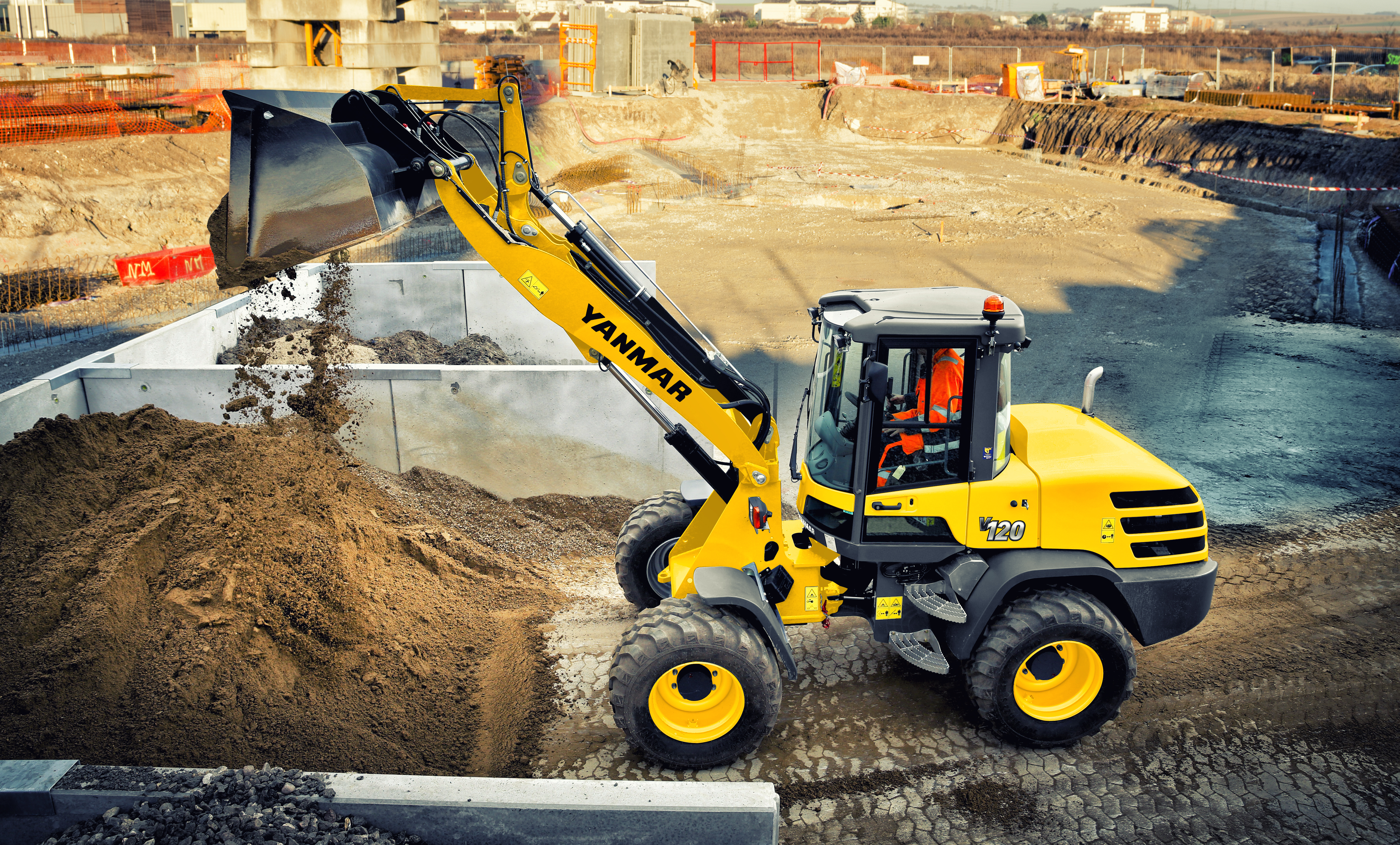

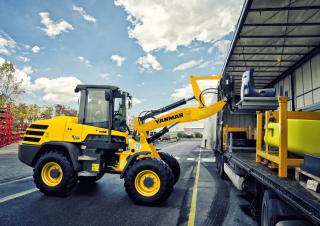

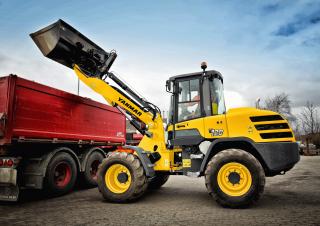

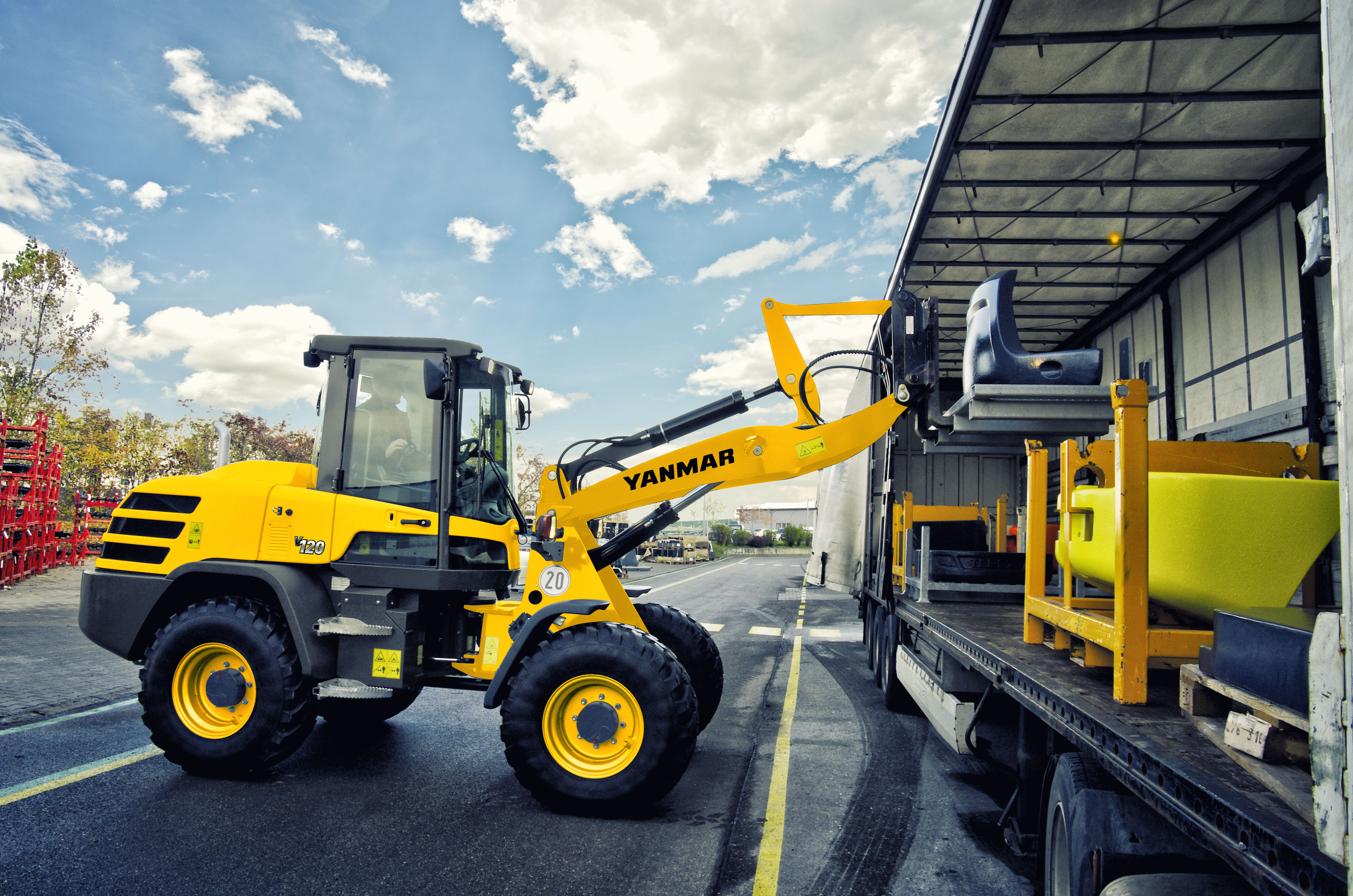

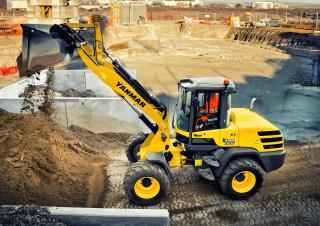

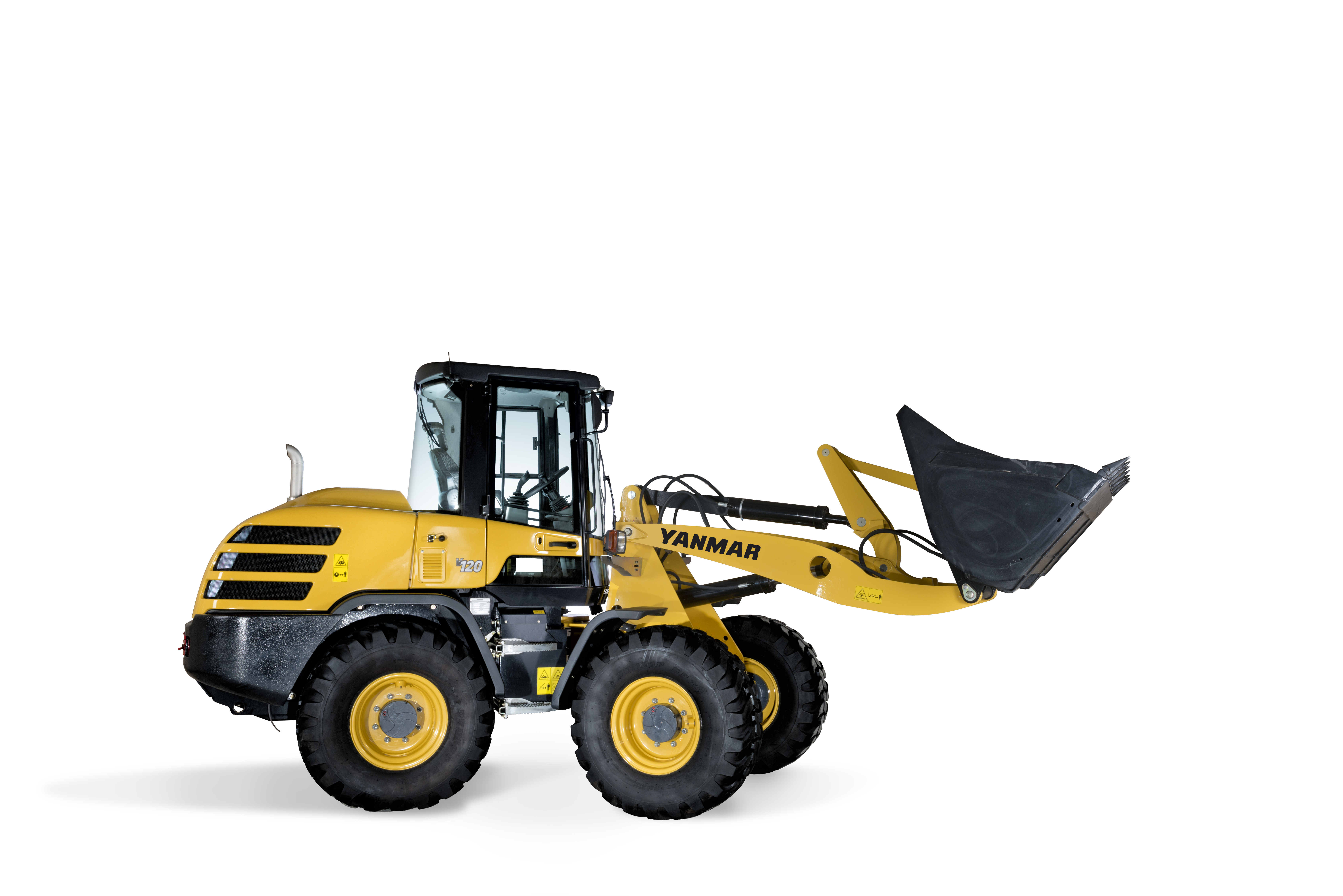

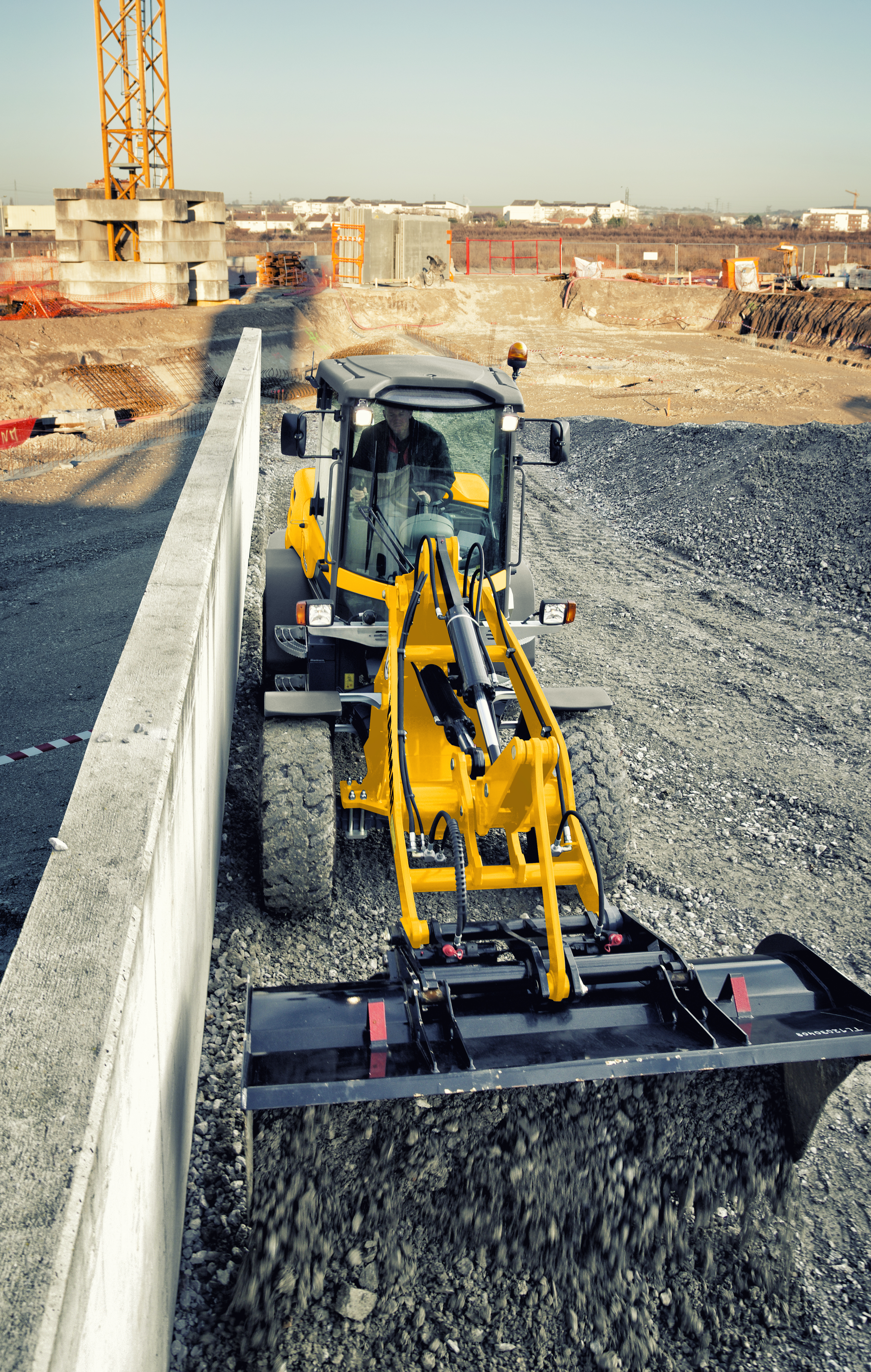

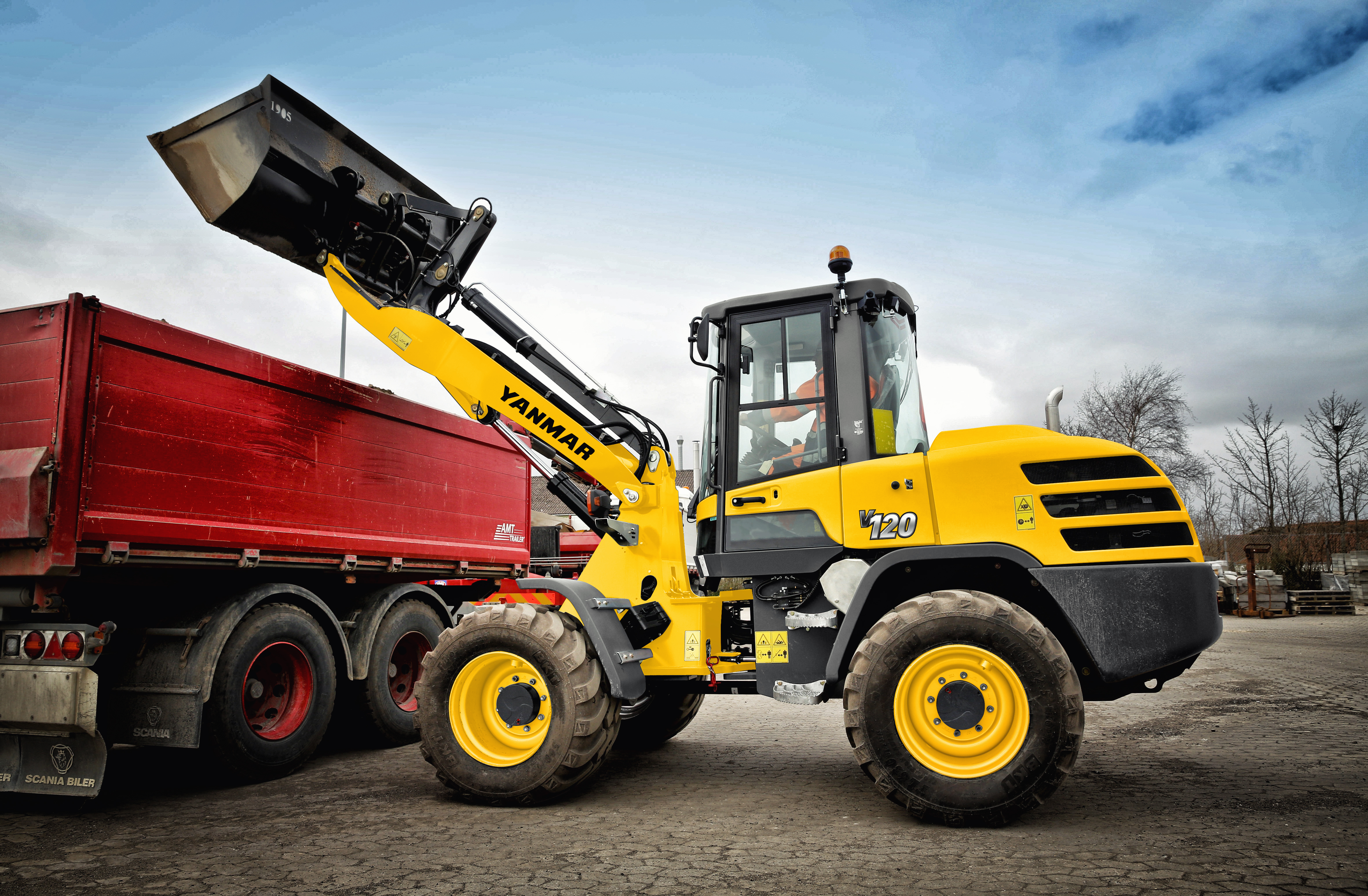

The Yanmar V 120 is a wheel loader manufactured since 2016. It has a weight of 7 tons and a transport length of 5.27 meters. The b…

The Yanmar V 120 is a wheel loader manufactured since 2016. It has a weight of 7 tons and a transport length of 5.27 meters. The bucket capacity is 1.2 cubic meters, with a bucket width of 2.1 meters. The maximum discharge height is 2.635 meters. It has a travel speed of 36 km/h and a transport width of 2.1 meters. The transport height is 2.765 meters. The lifting force is 59 kN and the turning radius outside is 4.68 meters. The bucket capacity ranges from 1.2 to 1.8 cubic meters. It is equipped with air conditioning, a diesel particulate filter, and quick hitch hydraulic and mechanical systems.

V 120

Years of manufacture: 2016—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V 120 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7 t

Standard tyres: 406/70 R 20

Bucket width: 2.1 m

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 1.8 m³

Steering mode: KL

Transport length: 5.27 m

Transport width: 2.1 m

Transport height: 2.765 m

Travel speed: 36 km/h

Max. discharge height: 2.635 m

Turning radius outside: 4.68 m

Lifting force: 59 kN

Model series: V

Engine manuf.: Deutz

Engine type: TCD 3.6 L4

Engine power: 74.4 kW

Revolutions at max torque: 1600 rpm

Max. torque: 300 Nm

Emission level: Tier 4f

More technical details, like: dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Yanmar V 120 FAQ

When was the Yanmar V 120 manufactured?

The Yanmar V 120 was manufactured from 2016 to 2024.

How much does the Yanmar V 120 wheel loader weigh?

The Yanmar V 120 wheel loader weighs 7 tons.

What are the transport dimensions of the Yanmar V 120 wheel loader?

The Yanmar V 120 has a transport length of 5.27 meters, a transport width of 2.1 meters, and a transport height of 2.77 meters.

What is the travel speed of the Yanmar V 120 wheel loader?

The Yanmar V 120 wheel loader has a travel speed of 36 km/h.

What are the standard tyres of the Yanmar V 120 wheel loader?

The Yanmar V 120 wheel loader is equipped with standard tyres sized 406/70 R 20.

What are the maneuverability specifications of the Yanmar V 120 wheel loader?

The Yanmar V 120 wheel loader has an articulated-frame steering system and an outside turning radius of 4.68 meters.

What is the power rating of the Yanmar V 120 wheel loader?

The power rating of the Yanmar V 120 wheel loader is not provided in the available data.

What is the material handling capacity of the Yanmar V 120 in terms of discharge height?

The Yanmar V 120 has a maximum discharge height of 2.64 meters.

What are the specifications of the bucket on the Yanmar V 120 wheel loader?

The Yanmar V 120 wheel loader has a bucket capacity ranging from 1.2 to 1.8 cubic meters, with a standard bucket capacity of 1.2 cubic meters and a bucket width of 2.1 meters.
