V 100 Yanmar V 100 Specifications & Technical Data (2016—2024)

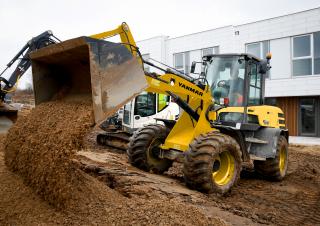

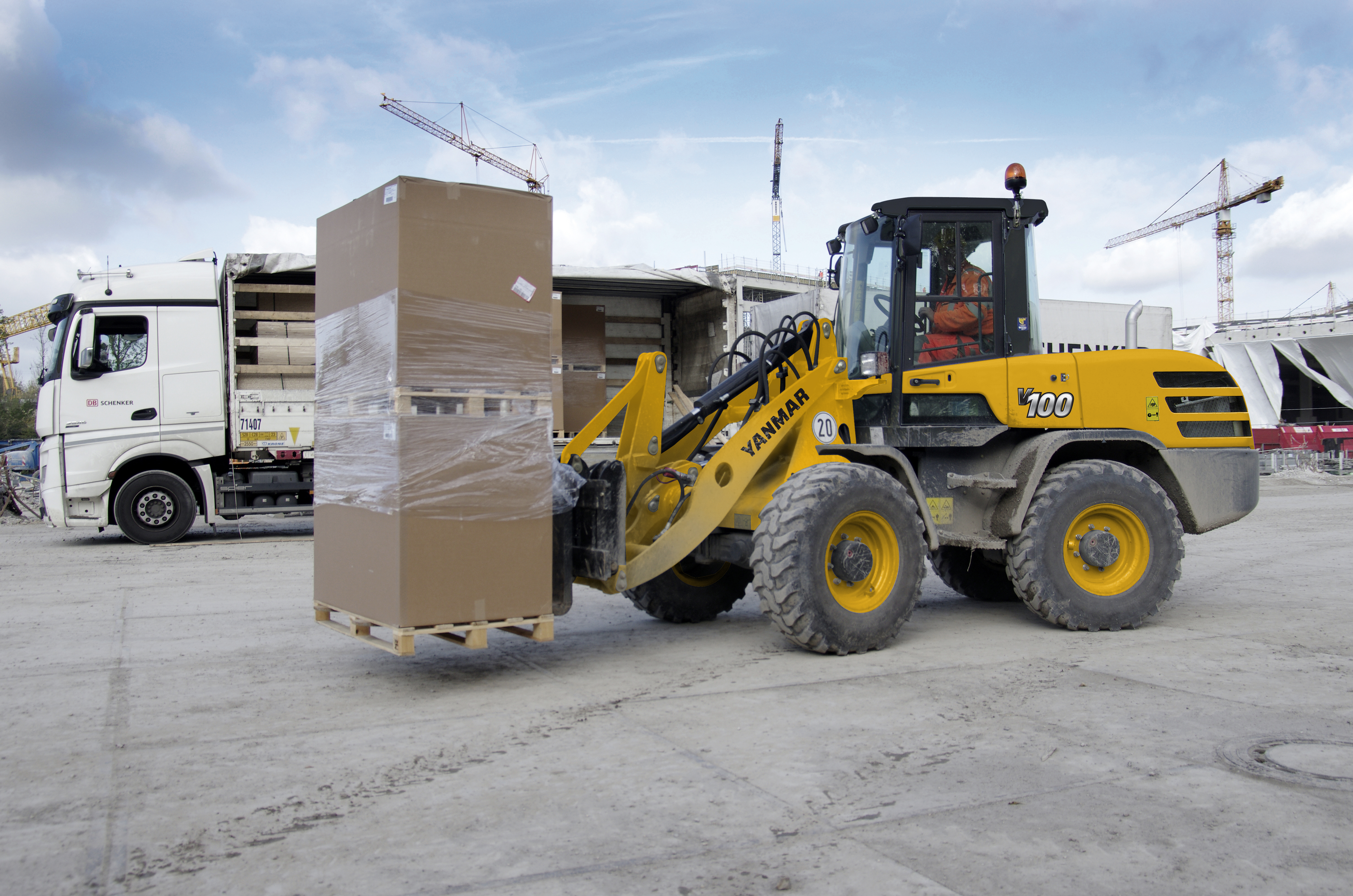

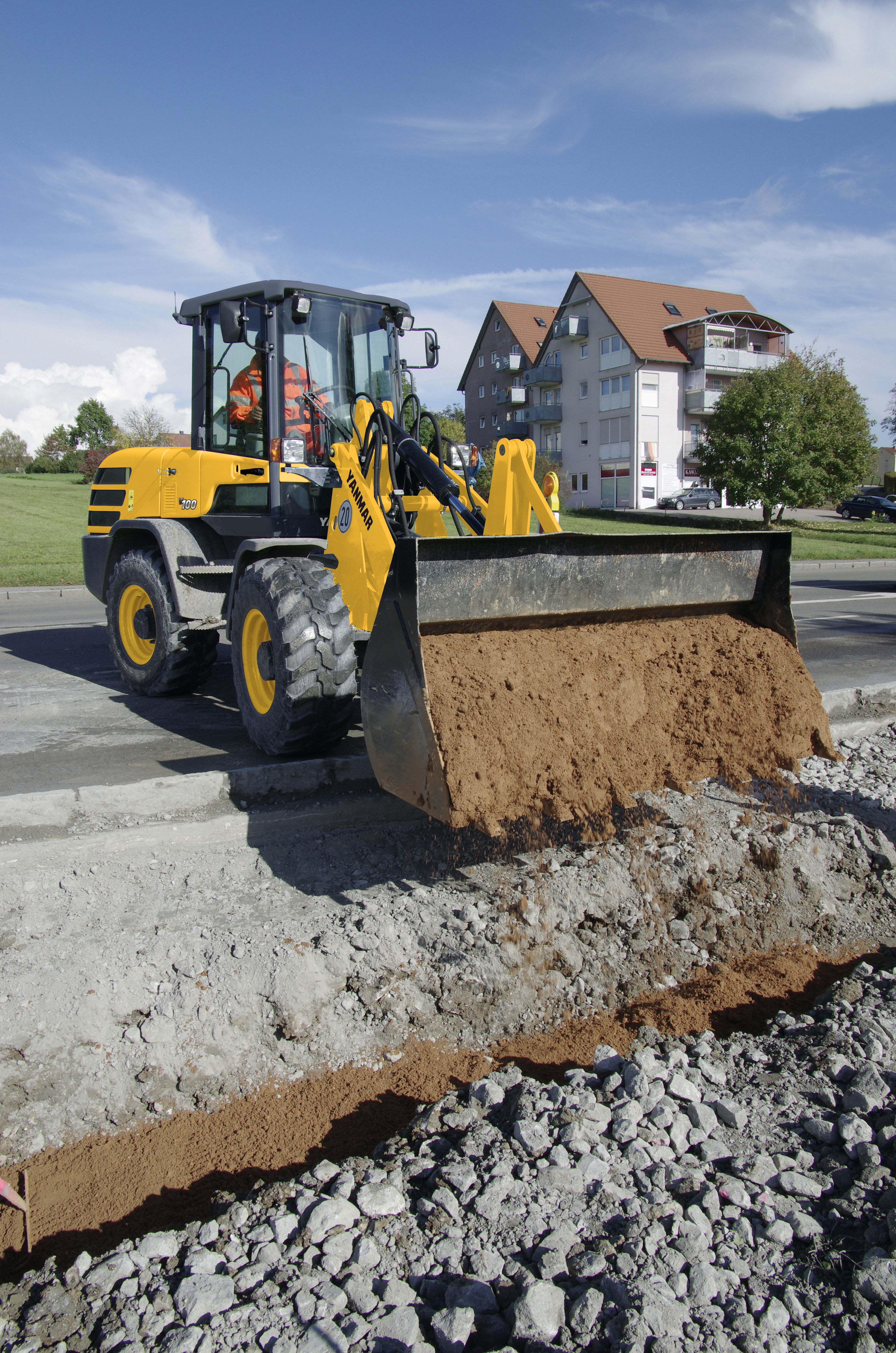

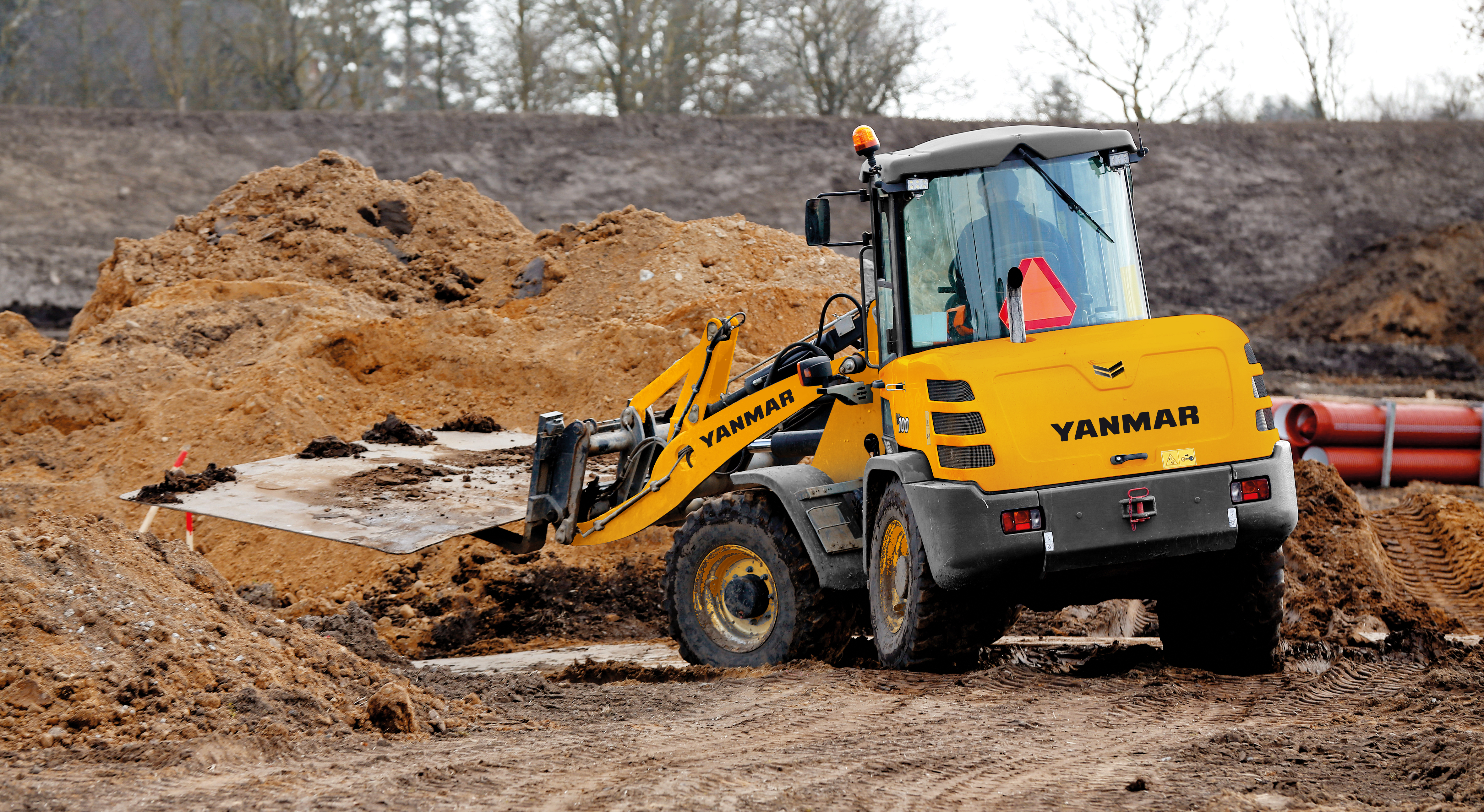

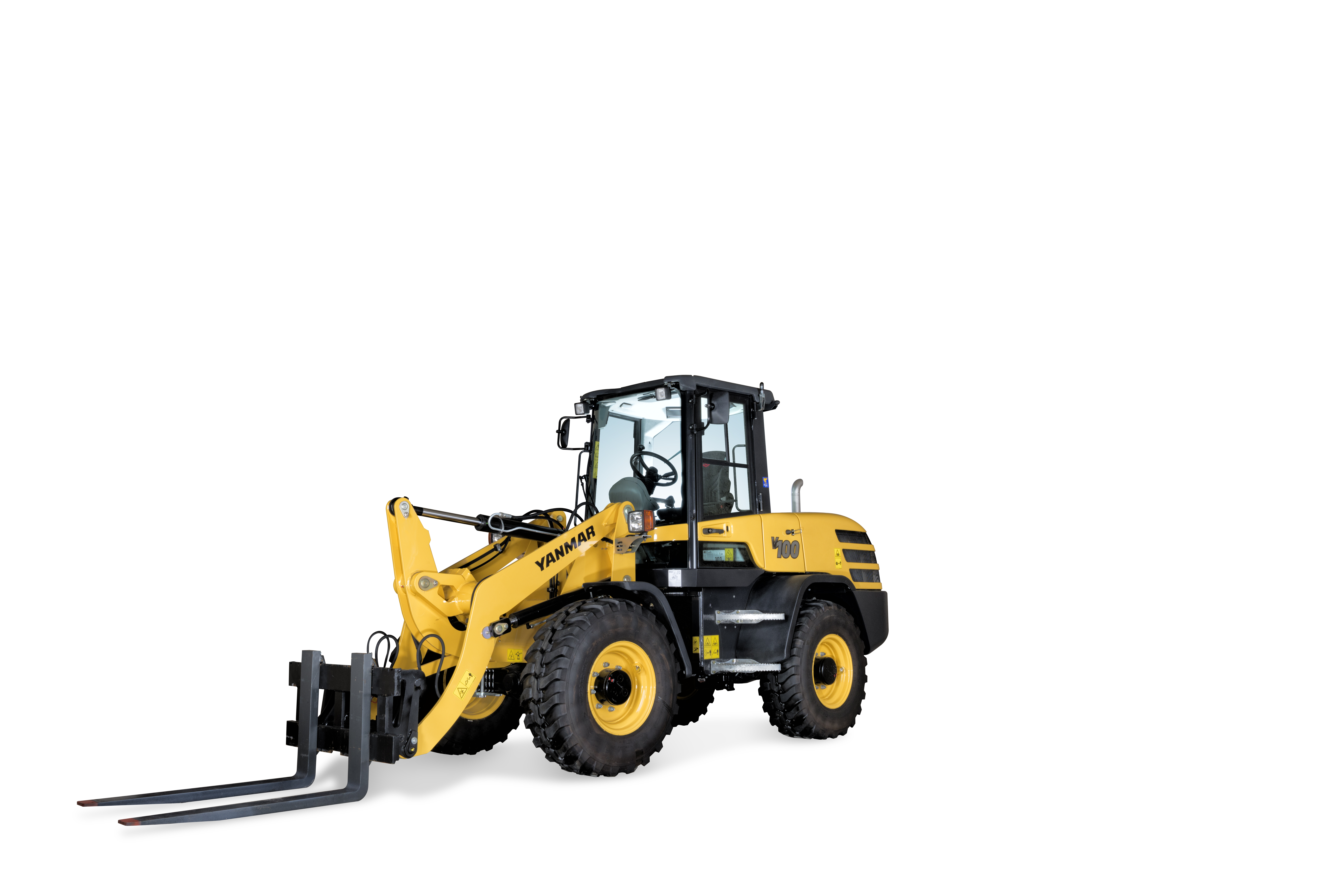

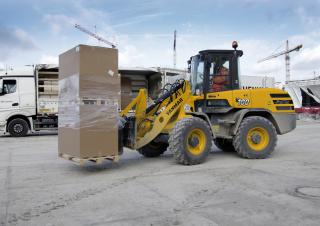

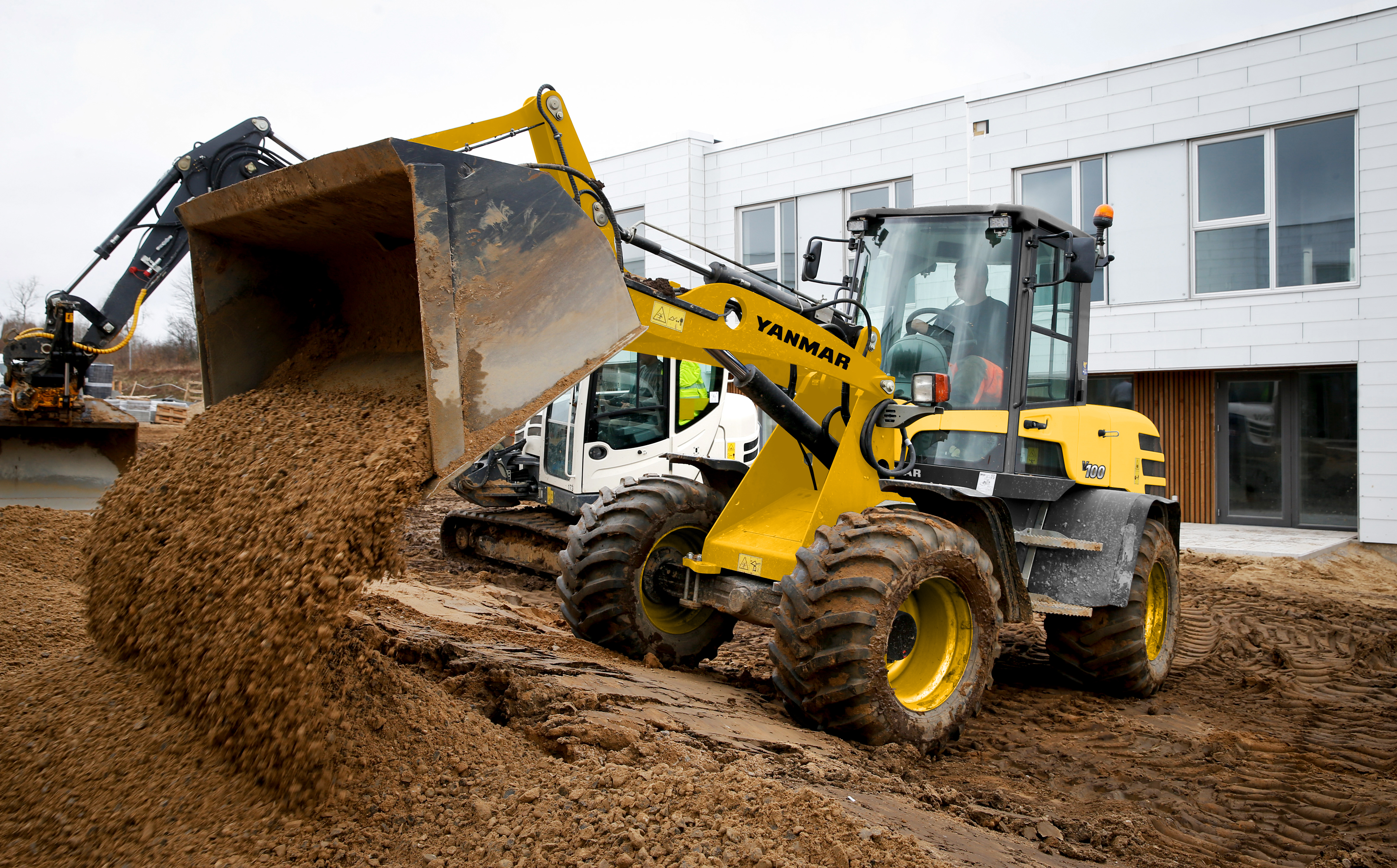

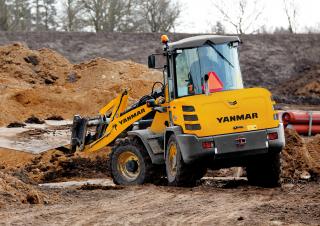

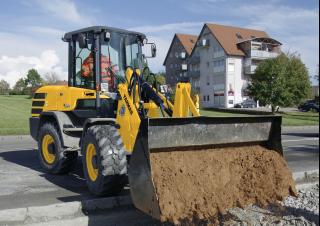

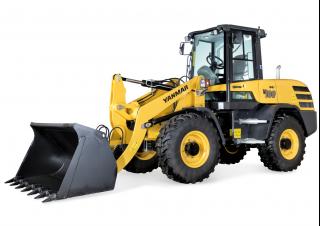

The Yanmar V 100 is a wheel loader manufactured since 2016. It has a weight of 5.8 tons and a transport length of 5.27 meters. The…

The Yanmar V 100 is a wheel loader manufactured since 2016. It has a weight of 5.8 tons and a transport length of 5.27 meters. The bucket capacity is 1 cubic meter, with a bucket width of 1.95 meters. The maximum discharge height is 2.635 meters. It has a travel speed of 36 km/h and a transport width of 1.95 meters. The transport height is 2.765 meters. The lifting force is 55.4 kN and the turning radius outside is 4.445 meters. The machine is equipped with special features such as air conditioning, a diesel particulate filter, and quick hitch hydraulic and mechanical systems.

V 100

Years of manufacture: 2016—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V 100 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 405/70 R 20

Bucket width: 1.95 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Bucket capacity max.: 1.5 m³

Steering mode: KL

Transport length: 5.27 m

Transport width: 1.95 m

Transport height: 2.765 m

Travel speed: 36 km/h

Max. discharge height: 2.635 m

Turning radius outside: 4.445 m

Lifting force: 55.4 kN

Model series: V

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 45 kW

Revolutions at max torque: 1600 rpm

Max. torque: 240 Nm

Emission level: Tier 4f

More technical details, like: dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Yanmar V 100 FAQ

When was the Yanmar V 100 manufactured?

The Yanmar V 100 was manufactured from 2016 to 2024.

How much does the Yanmar V 100 wheel loader weigh?

The Yanmar V 100 wheel loader weighs 5.8 tons.

What are the transport dimensions of the Yanmar V 100 wheel loader?

The Yanmar V 100 has a transport length of 5.27 meters, a transport width of 1.95 meters, and a transport height of 2.77 meters.

What is the travel speed of the Yanmar V 100 wheel loader?

The Yanmar V 100 wheel loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the Yanmar V 100 wheel loader?

The Yanmar V 100 wheel loader is equipped with standard tyres sized 405/70 R 20.

What are the maneuverability specifications of the Yanmar V 100 wheel loader?

The Yanmar V 100 wheel loader has an articulated-frame steering mode and an outside turning radius of 4.445 meters.

What is the lifting force of the Yanmar V 100 wheel loader?

The Yanmar V 100 wheel loader has a lifting force of 55.4 kN.

What is the maximum discharge height of the Yanmar V 100 wheel loader?

The Yanmar V 100 wheel loader has a maximum discharge height of 2.64 meters.

What are the bucket specifications of the Yanmar V 100 wheel loader?

The Yanmar V 100 wheel loader has a bucket capacity ranging from 1 to 1.5 cubic meters and a bucket width of 1.95 meters.
