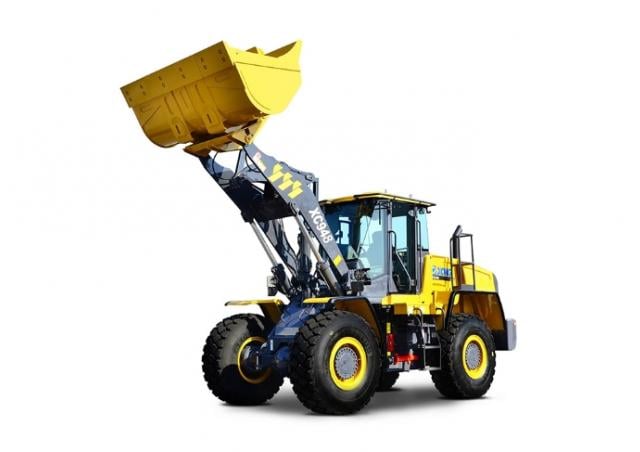

XC948 XCMG XC948 Specifications & Technical Data (2021—2026)

The XCMG XC948 is a wheel loader manufactured since 2021. It has a weight of 15.3 tons and a transport length of 7.882 meters. The…

The XCMG XC948 is a wheel loader manufactured since 2021. It has a weight of 15.3 tons and a transport length of 7.882 meters. The bucket capacity is 2.4 cubic meters. The transport width is 2.5 meters and the transport height is 3.405 meters. It has a lifting force of 140 kN.

Wheel Loaders XCMG XC948

Visit XCMG live at

Technical specs - XC948 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.3 t
Standard tyres
20.5R25
Bucket width
3.016 m
Bucket capacity
2.4 m³
Bucket capacity min.
2.4 m³
Bucket capacity max.
2.7 m³
Transport length
6.632 m
Transport width
2.58 m
Transport height
3.31 m
Travel speed
34 km/h
Max. discharge height
2.841 m
Lifting force
140 kN
Model series
XC9
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1400 rpm
Max. torque
800 Nm
Emission level
Euro III

More technical details, like: steering mode, turning radius outside, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

XCMG XC948 FAQ

When was the XCMG XC948 manufactured?

The XCMG XC948 was first produced in 2021.

How much does the XCMG XC948 wheel loader weigh?

The XCMG XC948 wheel loader weighs 15.3 tons.

What are the transport dimensions of the XCMG XC948 wheel loader?

The XCMG XC948 has a transport length of 6.632 meters, a transport width of 2.58 meters, and a transport height of 3.31 meters.

What is the travel speed of the XCMG XC948 wheel loader?

The XCMG XC948 wheel loader has a travel speed of 34 km/h.

What is the standard tyre size of the XCMG XC948 wheel loader?

The XCMG XC948 wheel loader has standard tyres sized 20.5R25.

What is the power rating of the XCMG XC948 wheel loader?

The source data does not provide power rating information for the XCMG XC948 wheel loader.

What is the maximum discharge height of the XCMG XC948?

The XCMG XC948 has a maximum discharge height of 2.841 meters.

What are the specifications of the bucket on the XCMG XC948 wheel loader?

The XCMG XC948 wheel loader has a bucket with a capacity ranging from 2.4 to 2.7 cubic meters and a width of 3.016 meters.

How much is a XCMG XC948 Wheel loader (2021u20132025) worth?

The residual value of the XCMG XC948 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
