LW400KN XCMG LW400KN Specifications & Technical Data (2017—2026)

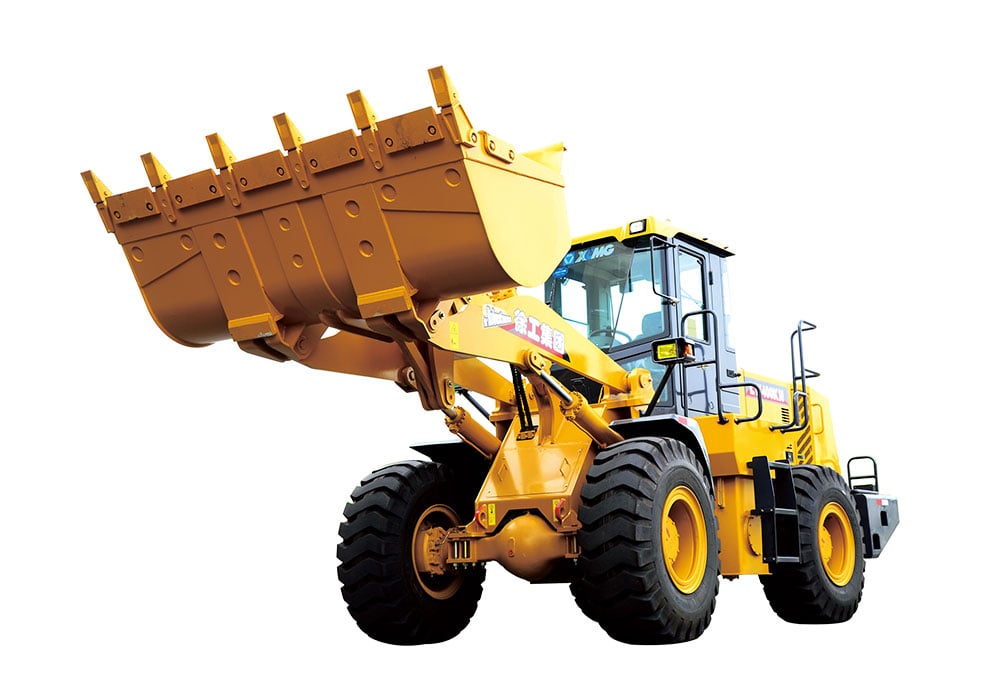

The XCMG LW400KN is a wheel loader manufactured since 2017. It has a weight of 14.5 tons and a transport length of 7.913 meters. T…

The XCMG LW400KN is a wheel loader manufactured since 2017. It has a weight of 14.5 tons and a transport length of 7.913 meters. The bucket capacity is 2.4 cubic meters with a width of 2.786 meters. The maximum discharge height is 2.841 meters. It has a travel speed of 35 km/h and a transport width of 2.58 meters. The transport height is 3.494 meters. The lifting force is 120 kN and the turning radius outside is 5.94 meters. The bucket capacity minimum is 2.4 cubic meters. It is equipped with air conditioning.

Wheel Loaders XCMG LW400KN

Visit XCMG live at

Technical specs - LW400KN XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Bucket width
2.786 m
Bucket capacity
2.4 m³
Bucket capacity min.
2.4 m³
Steering mode
KL
Transport length
7.913 m
Transport width
2.58 m
Transport height
3.494 m
Travel speed
35 km/h
Max. discharge height
2.841 m
Turning radius outside
5.94 m
Lifting force
120 kN
Model series
LW4
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity max., dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

XCMG LW400KN FAQ

When was the XCMG LW400KN manufactured?

The XCMG LW400KN was first produced in 2017.

How much does the XCMG LW400KN wheel loader weigh?

The XCMG LW400KN wheel loader weighs 14.5 tons.

What are the transport dimensions of the XCMG LW400KN wheel loader?

The XCMG LW400KN has a transport length of 7.91 meters, a transport width of 2.58 meters, and a transport height of 3.49 meters.

What is the travel speed of the XCMG LW400KN wheel loader?

The XCMG LW400KN has a travel speed of 35 km/h.

What are the maneuverability specifications of the XCMG LW400KN wheel loader?

The XCMG LW400KN wheel loader has an outside turning radius of 5.94 meters and uses articulated-frame steering for maneuverability.

What is the lifting force of the XCMG LW400KN wheel loader?

The XCMG LW400KN wheel loader has a lifting force of 120 kN.

What is the maximum discharge height of the XCMG LW400KN?

The XCMG LW400KN has a maximum discharge height of 2.84 meters.

What are the specifications of the bucket on the XCMG LW400KN wheel loader?

The XCMG LW400KN wheel loader has a bucket with a capacity of 2.4 cubic meters and a width of 2.79 meters.

How much is a XCMG LW400KN Wheel loader (2017u20132025) worth?

The residual value of the XCMG LW400KN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
