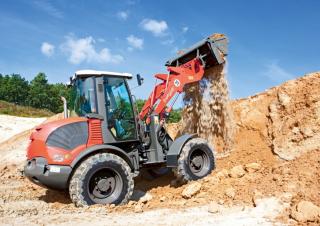

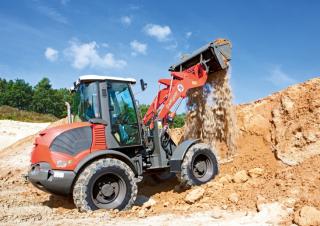

AR 85 e weycor AR 85 e Specifications & Technical Data (2016—2019)

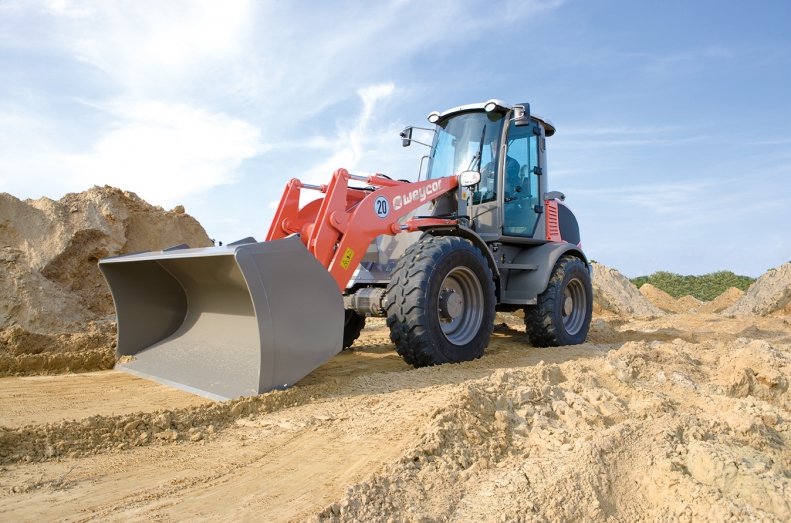

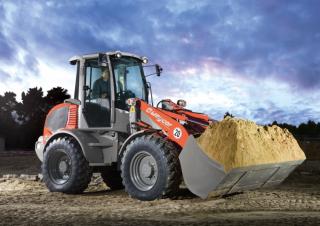

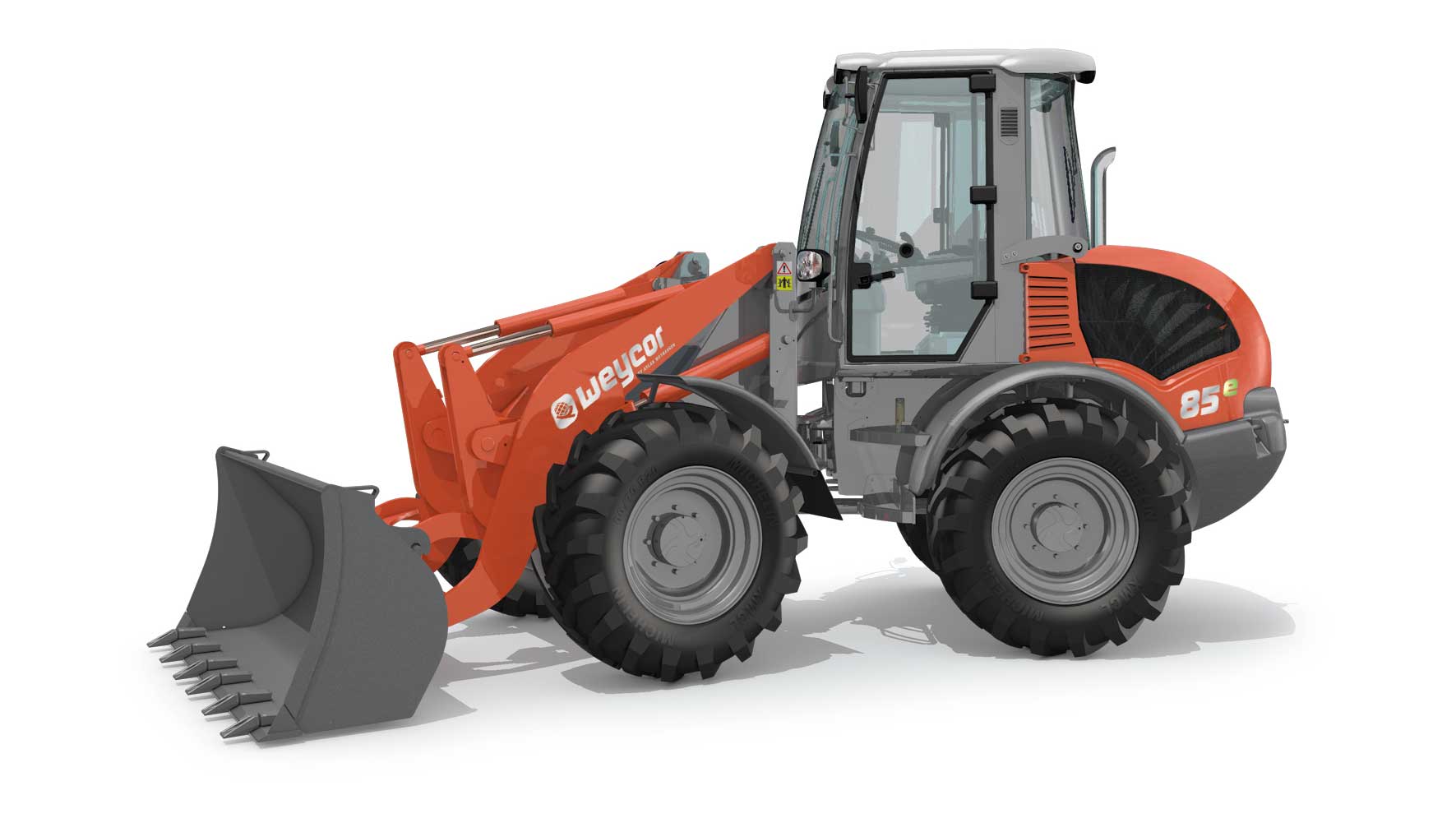

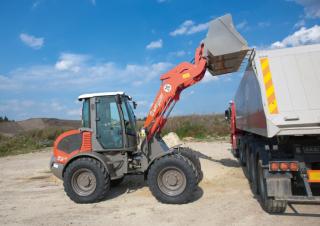

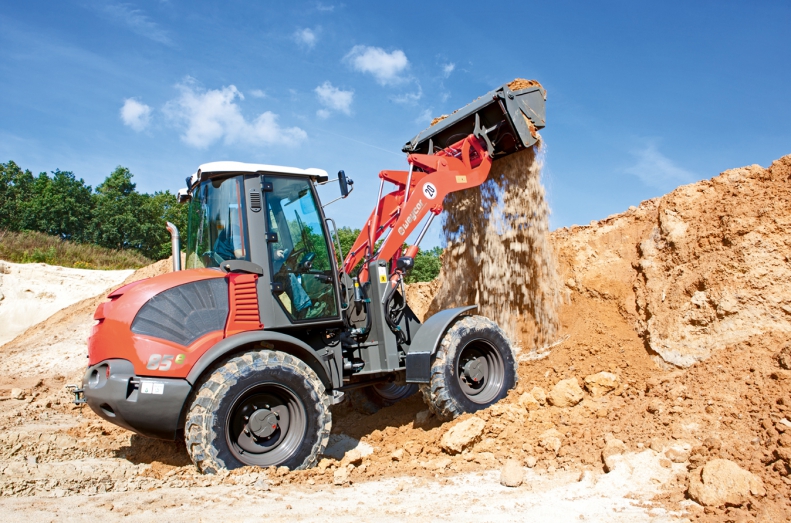

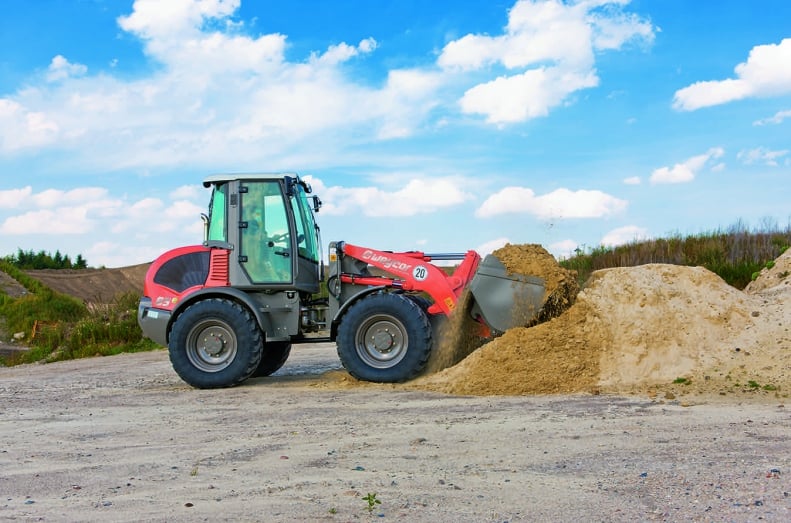

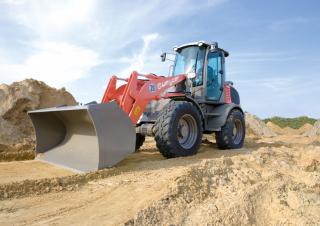

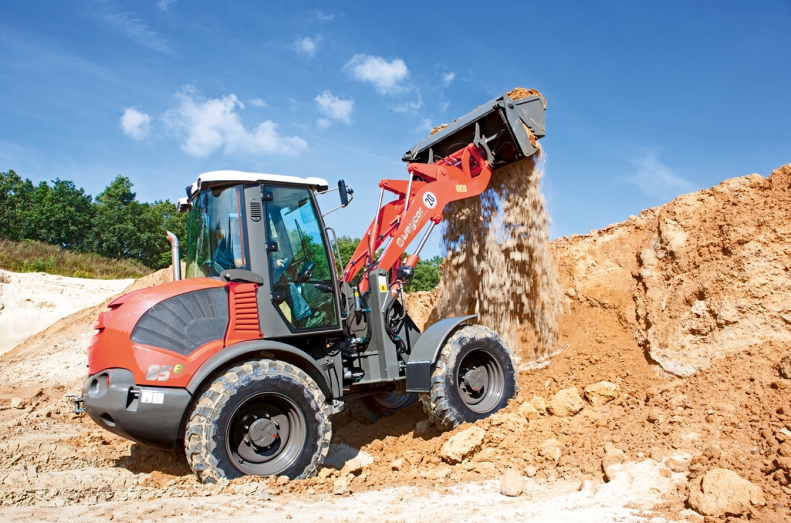

The Weycor AR 85 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 7 tons and a transport length of…

The Weycor AR 85 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 7 tons and a transport length of 5.68 meters. The bucket capacity is 1.3 cubic meters, with a bucket width of 2.25 meters. The maximum discharge height is 2.7 meters. It has a travel speed of 20 km/h and a transport width of 2.05 meters. The transport height is 2.8 meters. The lifting force is 60 kN. The turning radius outside is 4.24 meters. The machine is equipped with quick hitch hydr. and quick hitch mech. special equipment. The maximum bucket capacity is 1.5 cubic meters, while the minimum is 1.3 cubic meters.

Visit weycor live at

AR 85 e

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 85 e weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7 t

Standard tyres: 405/70 R24 EM

Bucket width: 2.25 m

Bucket capacity: 1.3 m³

Bucket capacity min.: 1.3 m³

Bucket capacity max.: 1.5 m³

Steering mode: KL

Transport length: 5.68 m

Transport width: 2.05 m

Transport height: 2.8 m

Travel speed: 20 km/h

Max. discharge height: 2.7 m

Turning radius outside: 4.24 m

Lifting force: 60 kN

Model series: AR

Engine manuf.: Deutz

Engine type: TCD3.6 L04

Engine power: 80 kW

Displacement: 3.62 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

AR 85 e weycor Specification for Europe (DE)

weycor AR 85 e FAQ

When was the weycor AR 85 e manufactured?

The weycor AR 85 e was manufactured from 2016 to 2019.

How much does the weycor AR 85 e weigh?

The weycor AR 85 e weighs 7 tons.

What are the transport dimensions of the weycor AR 85 e wheel loader?

The transport dimensions of the weycor AR 85 e are 5.68 meters in length, 2.05 meters in width, and 2.8 meters in height.

What is the travel speed of the weycor AR 85 e wheel loader?

The weycor AR 85 e has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 85 e wheel loader?

The weycor AR 85 e wheel loader is equipped with standard tyres sized 405/70 R24 EM.

What are the maneuverability specifications of the weycor AR 85 e wheel loader?

The weycor AR 85 e has an articulated-frame steering system and an outside turning radius of 4.24 meters.

What is the lifting force of the weycor AR 85 e wheel loader?

The weycor AR 85 e wheel loader has a lifting force of 60 kN.

What is the maximum discharge height of the Weycor AR 85 e?

The Weycor AR 85 e has a maximum discharge height of 2.7 meters.

What are the bucket specifications of the Weycor AR 85 e wheel loader?

The Weycor AR 85 e wheel loader has a bucket capacity of 1.3 cubic meters, a minimum bucket capacity of 1.3 cubic meters, a maximum bucket capacity of 1.5 cubic meters, and a bucket width of 2.25 meters.
