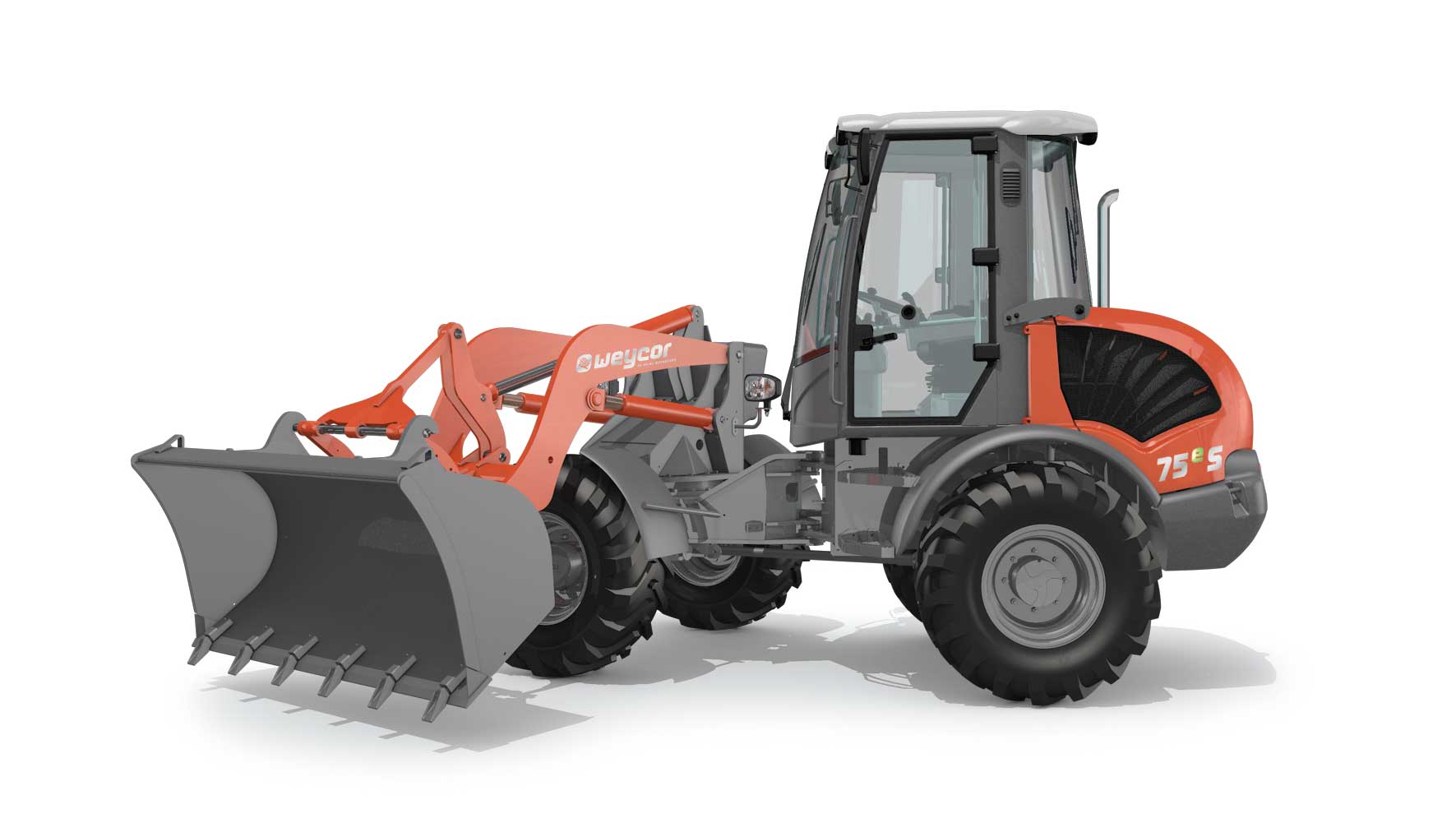

AR 75 e S weycor AR 75 e S Specifications & Technical Data (2016—2019)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit weycor live at
Technical specs - AR 75 e S weycor
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.28 t
- Standard tyres
- 16/70-20 MPT 14 PR
- Bucket width
- 1.97 m
- Bucket capacity
- 0.8 m³
- Bucket capacity min.
- 0.8 m³
- Steering mode
- KL
- Transport length
- 5.4 m
- Transport width
- 1.95 m
- Transport height
- 2.8 m
- Travel speed
- 20 km/h
- Max. discharge height
- 2.55 m
- Turning radius outside
- 3.76 m
- Lifting force
- 39 kN
- Model series
- AR
- Engine manuf.
- Deutz
- Engine type
- TD2.9 L04
- Engine power
- 54 kW
- Displacement
- 2.92 l
- Revolutions at max torque
- 1800 rpm
More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
Yes
