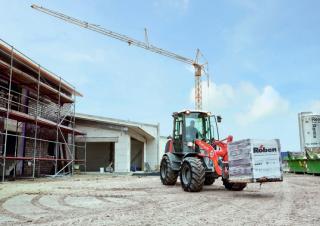

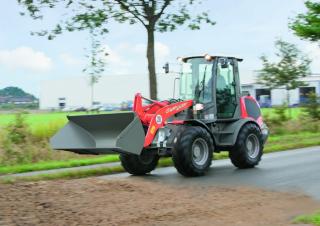

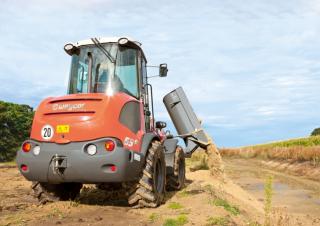

AR 65 e weycor AR 65 e Specifications & Technical Data (2016—2019)

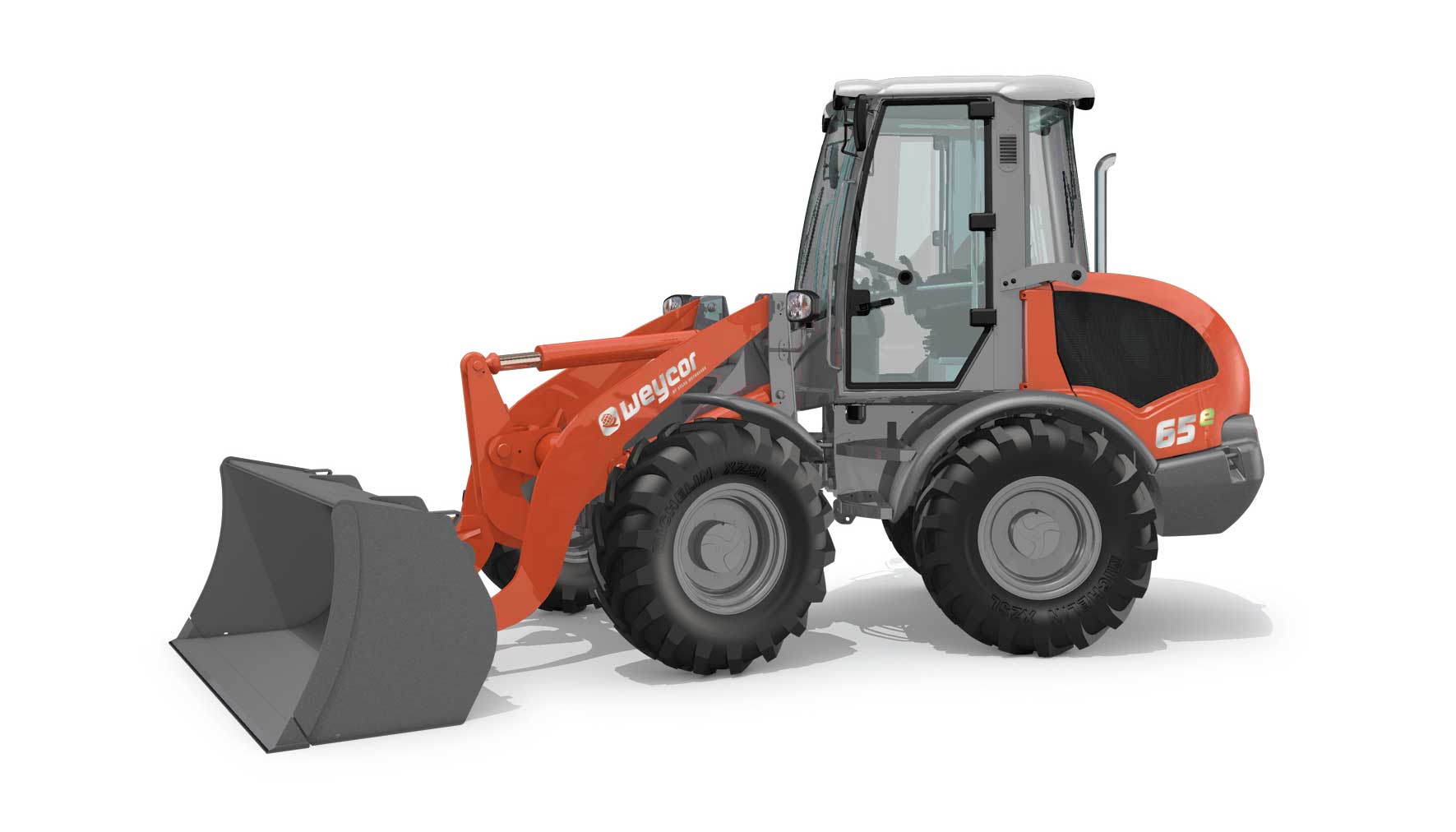

The Weycor AR 65 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 5.15 tons and a transport length…

The Weycor AR 65 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 5.15 tons and a transport length of 5.22 meters. The bucket capacity is 1 cubic meter with a width of 2.05 meters. The maximum discharge height is 2.47 meters. It has a travel speed of 20 km/h and a transport width of 1.87 meters. The transport height is 2.65 meters. The lifting force is 45.9 kN. The turning radius outside is 3.75 meters. It is equipped with quick hitch hydr. and quick hitch mech. special equipment.

Visit weycor live at

AR 65 e

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 65 e weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.15 t

Standard tyres: 12.5-20 MPT

Bucket width: 2.05 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Steering mode: KL

Transport length: 5.22 m

Transport width: 1.87 m

Transport height: 2.65 m

Travel speed: 20 km/h

Max. discharge height: 2.47 m

Turning radius outside: 3.75 m

Lifting force: 45.9 kN

Model series: AR

Engine manuf.: Deutz

Engine type: TD2.9 L4

Engine power: 54 kW

Displacement: 2.9 l

Emission level: T4

More technical details, like: bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

AR 65 e weycor Specification for Europe (DE)

weycor AR 65 e FAQ

When was the weycor AR 65 e manufactured?

The weycor AR 65 e was manufactured from 2016 to 2019.

How much does the weycor AR 65 e wheel loader weigh?

The weycor AR 65 e wheel loader weighs 5.15 tons.

What are the transport dimensions of the weycor AR 65 e wheel loader?

The transport dimensions of the weycor AR 65 e are 5.22 meters in length, 1.87 meters in width, and 2.65 meters in height.

What is the travel speed of the weycor AR 65 e wheel loader?

The weycor AR 65 e wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 65 e wheel loader?

The weycor AR 65 e wheel loader is equipped with standard tyres sized 12.5-20 MPT.

What are the maneuverability specifications of the weycor AR 65 e wheel loader?

The weycor AR 65 e wheel loader has an articulated-frame steering mode and an outside turning radius of 3.75 meters.

What are the power ratings of the weycor AR 65 e wheel loader?

There is no power rating information available for the weycor AR 65 e wheel loader in the provided data.

What is the maximum discharge height of the weycor AR 65 e wheel loader?

The maximum discharge height of the weycor AR 65 e wheel loader is 2.47 meters.

What are the specifications of the bucket on the weycor AR 65 e wheel loader?

The weycor AR 65 e wheel loader has a bucket capacity of 1 cubic meter, a minimum bucket capacity of 1 cubic meter, and a bucket width of 2.05 meters.
