AR 550 weycor AR 550 Specifications & Technical Data (2019—2026)

The Weycor AR 550 is a wheel loader manufactured since 2019. It has a weight of 8.25 tons and a transport length of 6.23 meters. T…

The Weycor AR 550 is a wheel loader manufactured since 2019. It has a weight of 8.25 tons and a transport length of 6.23 meters. The bucket capacity is 1.4 cubic meters, with a width of 2.3 meters. The maximum discharge height is 2.815 meters. It has a travel speed of 20 km/h and a transport width of 2.18 meters. The transport height is 2.932 meters. The lifting force is 82 kN, and the turning radius outside is 4.61 meters. The bucket capacity ranges from a minimum of 1.4 cubic meters to a maximum of 2.1 cubic meters.

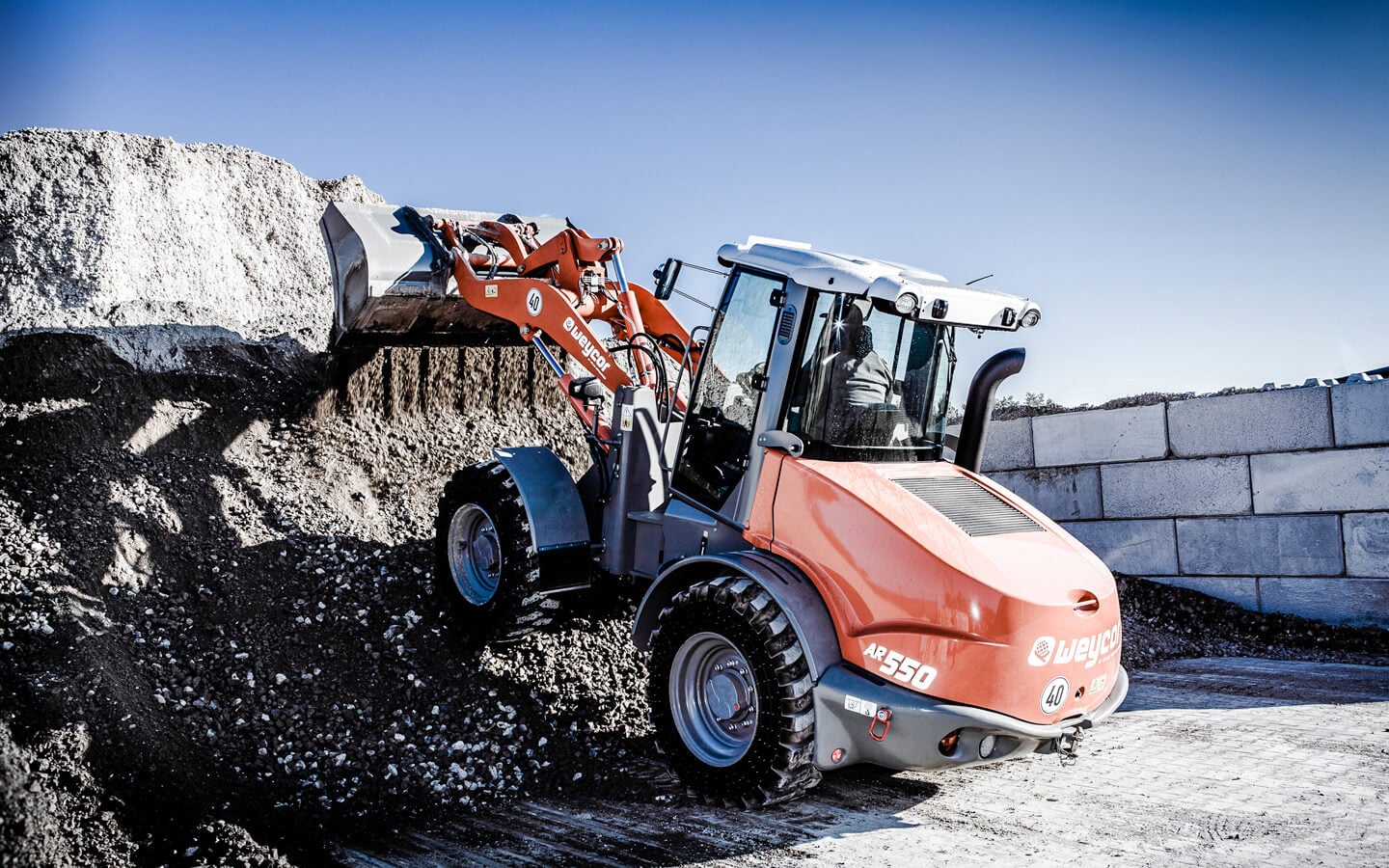

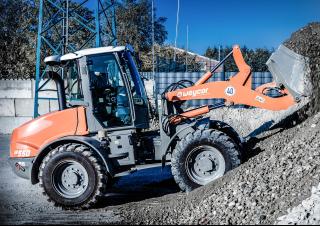

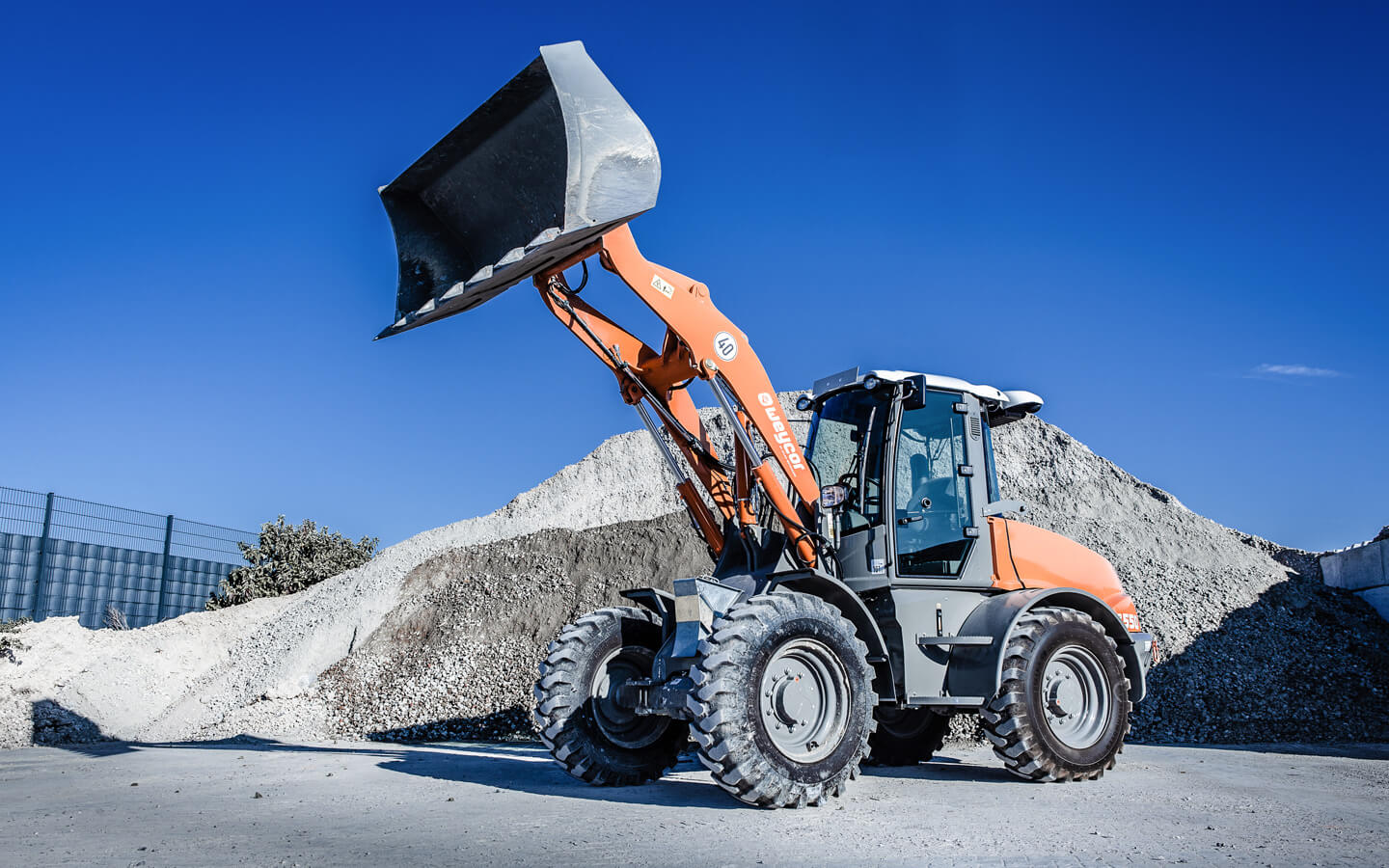

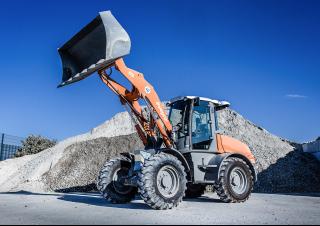

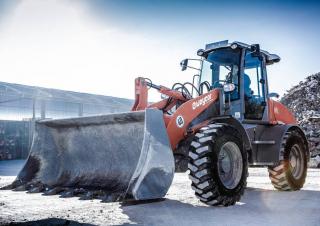

Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550
Wheel Loaders weycor AR 550

Visit weycor live at

Technical specs - AR 550 weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.25 t
Standard tyres
15.5-25 EM 20
Bucket width
2.3 m
Bucket capacity
1.4 m³
Bucket capacity min.
1.4 m³
Bucket capacity max.
2.1 m³
Steering mode
KL
Transport length
6.23 m
Transport width
2.18 m
Transport height
2.932 m
Travel speed
20 km/h
Max. discharge height
2.815 m
Turning radius outside
4.61 m
Lifting force
82 kN
Model series
AR
Engine manuf.
Deutz
Engine type
TCD3.6 L04
Engine power
85 kW
Displacement
3.62 l
Revolutions at max torque
2200 rpm
No. of cylinders
4

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

weycor AR 550 FAQ

When was the weycor AR 550 manufactured?

The weycor AR 550 was first produced in 2019.

How much does the Weycor AR 550 wheel loader weigh?

The Weycor AR 550 wheel loader weighs 8.25 tons.

What are the transport dimensions of the weycor AR 550 wheel loader?

The weycor AR 550 has a transport length of 6.23 meters, a transport width of 2.18 meters, and a transport height of 2.93 meters.

What is the travel speed of the weycor AR 550 wheel loader?

The weycor AR 550 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weycor AR 550 wheel loader?

The Weycor AR 550 wheel loader is equipped with standard tyres sized 15.5-25 EM 20.

What are the maneuverability specifications of the weycor AR 550 wheel loader?

The weycor AR 550 wheel loader has an articulated-frame steering system and an outside turning radius of 4.61 meters.

What is the power rating of the weycor AR 550 wheel loader?

The available data does not provide a power rating for the weycor AR 550 wheel loader.

What is the material handling capacity of the weycor AR 550 in terms of discharge height?

The weycor AR 550 has a maximum discharge height of 2.82 meters for material handling.

What are the specifications of the bucket on the weycor AR 550 wheel loader?

The weycor AR 550 wheel loader has a bucket capacity ranging from 1.4 to 2.1 cubic meters, with a bucket width of 2.3 meters.
