AR 520 weycor AR 520 Specifications & Technical Data (2018—2026)

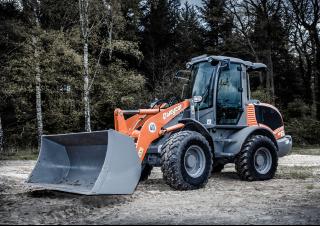

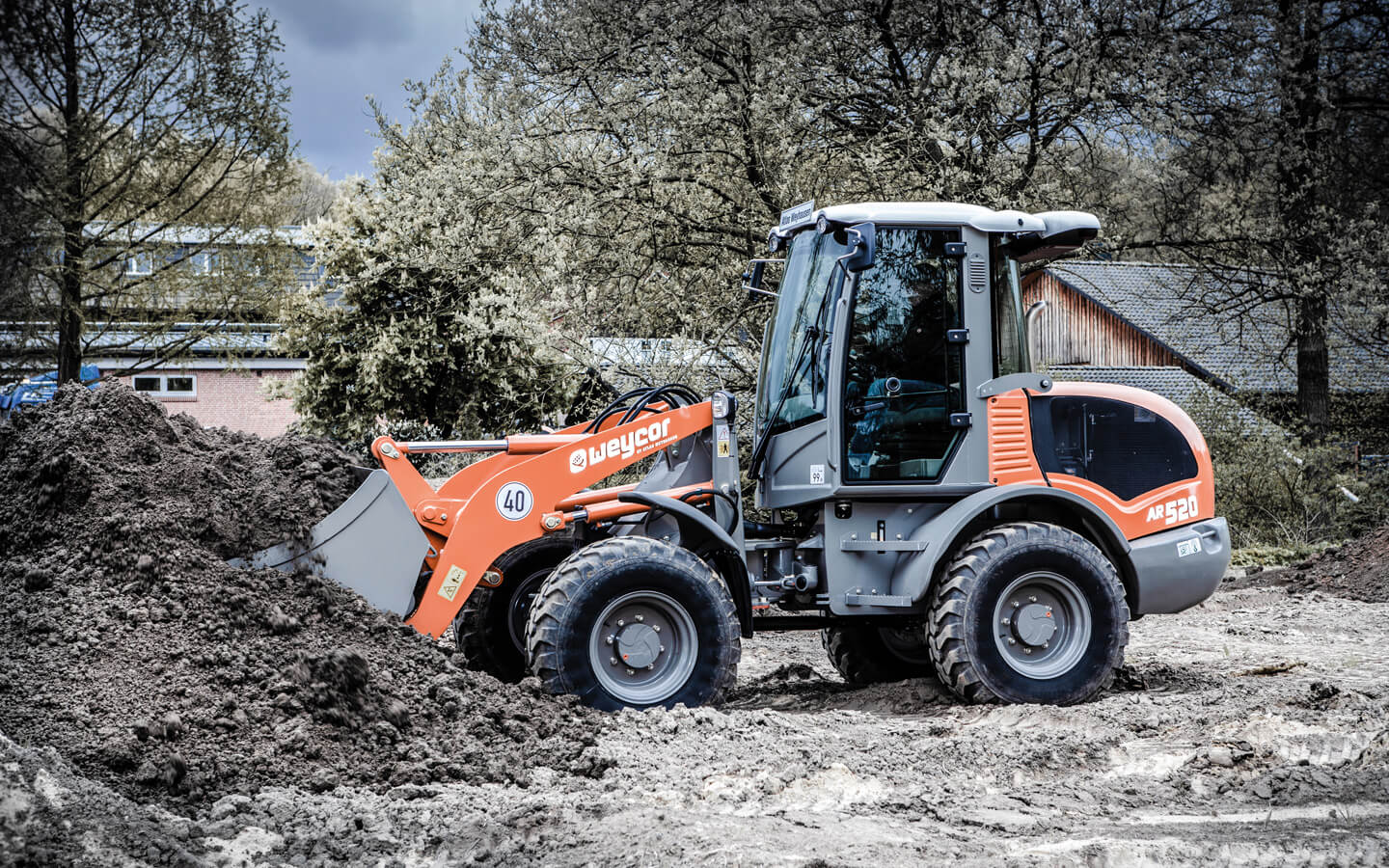

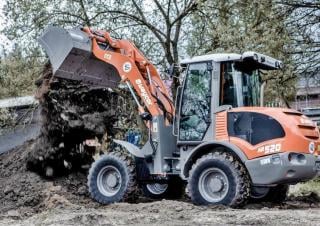

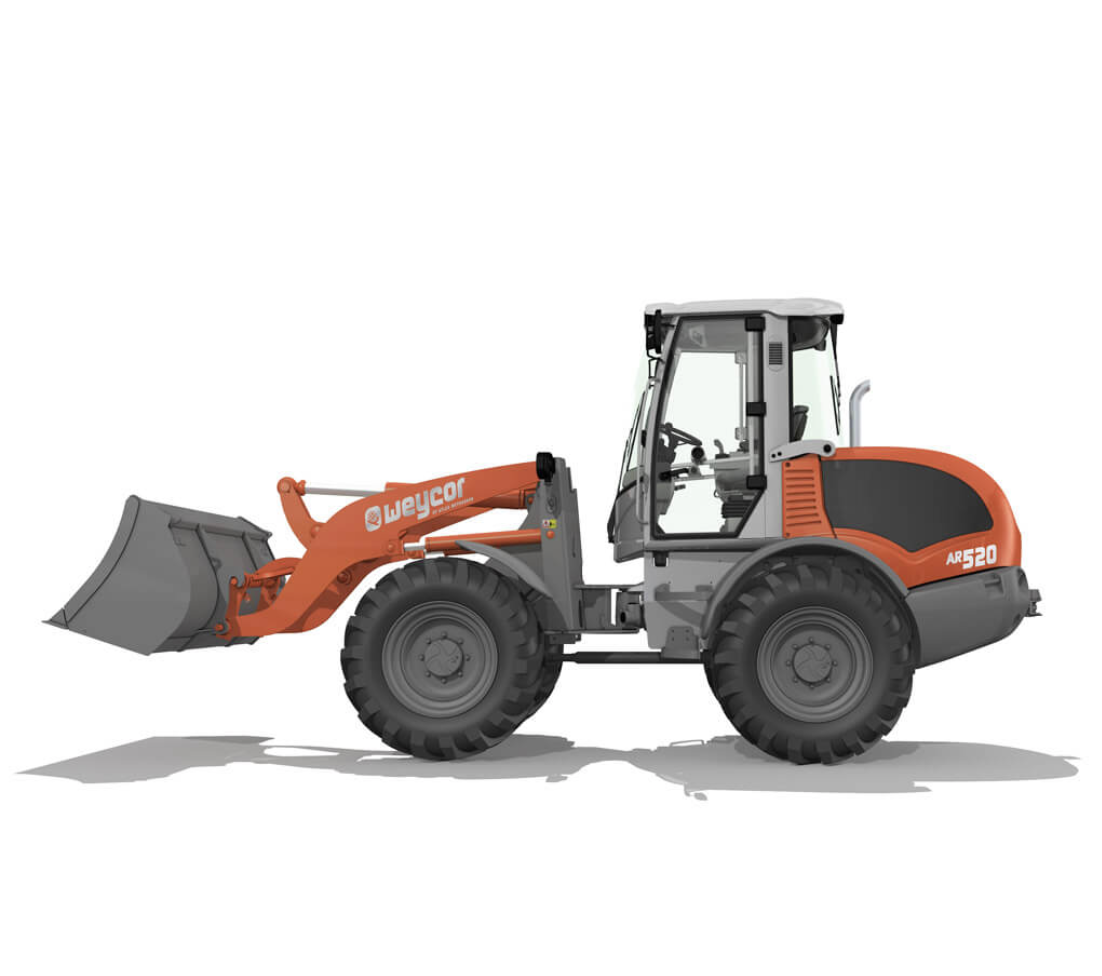

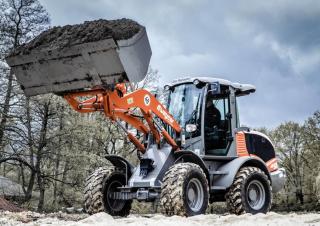

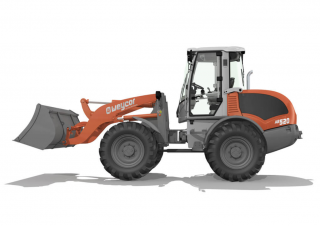

The Weycor AR 520 is a wheel loader manufactured since 2018. It has a weight of 6.45 tons and a transport length of 5.68 meters. T…

The Weycor AR 520 is a wheel loader manufactured since 2018. It has a weight of 6.45 tons and a transport length of 5.68 meters. The bucket capacity is 1.3 cubic meters, with a bucket width of 2.25 meters. The maximum discharge height is 2.7 meters. It has a travel speed of 20 km/h and a transport width of 2.05 meters. The transport height is 2.8 meters. The lifting force is 60 kN, and the turning radius outside is 4.24 meters. The machine is equipped with a quick hitch hydr. The maximum bucket capacity is 1.5 cubic meters, while the minimum is 1.2 cubic meters.

Visit weycor live at

AR 520

Years of manufacture: 2018—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 520 weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.45 t

Standard tyres: 405/70 R24 EM

Bucket width: 2.25 m

Bucket capacity: 1.3 m³

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 1.5 m³

Steering mode: KL

Transport length: 5.68 m

Transport width: 2.05 m

Transport height: 2.8 m

Travel speed: 20 km/h

Max. discharge height: 2.7 m

Turning radius outside: 4.24 m

Lifting force: 60 kN

Model series: AR

Engine manuf.: Deutz

Engine type: TCD3.6 L04

Engine power: 80 kW

Displacement: 3.62 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

weycor AR 520 FAQ

When was the weycor AR 520 manufactured?

The weycor AR 520 was first produced in 2018.

How much does the Weycor AR 520 wheel loader weigh?

The Weycor AR 520 wheel loader weighs 6.45 tons.

What are the transport dimensions of the weycor AR 520 wheel loader?

The weycor AR 520 has a transport length of 5.68 meters, a transport width of 2.05 meters, and a transport height of 2.8 meters.

What is the travel speed of the weycor AR 520 wheel loader?

The weycor AR 520 wheel loader has a travel speed of 20 km/h.

What are the standard tyre specifications for the weycor AR 520 wheel loader?

The weycor AR 520 wheel loader comes equipped with standard tyres sized 405/70 R24 EM.

What are the maneuverability specifications of the weycor AR 520 wheel loader?

The weycor AR 520 wheel loader has an articulated-frame steering system and an outside turning radius of 4.24 meters.

What is the lifting force of the weycor AR 520 wheel loader?

The weycor AR 520 wheel loader has a lifting force of 60 kN. No power rating data is available for this model.

What is the material handling capacity of the weycor AR 520 in terms of discharge height?

The weycor AR 520 has a maximum discharge height of 2.7 meters.

What are the specifications of the bucket on the weycor AR 520 wheel loader?

The weycor AR 520 wheel loader has a bucket capacity of 1.3 mu00b3, with a maximum capacity of 1.5 mu00b3 and a minimum capacity of 1.2 mu00b3, and the bucket width is 2.25 meters.
