AR 480 S weycor AR 480 S Specifications & Technical Data (2019—2026)

The weycor AR 480 S is a wheel loader manufactured since 2019. It has a weight of 6.28 tons and a transport length of 5.4 meters. …

The weycor AR 480 S is a wheel loader manufactured since 2019. It has a weight of 6.28 tons and a transport length of 5.4 meters. The bucket capacity is 0.8 cubic meters with a width of 1.97 meters. The maximum discharge height is 2.55 meters. It has a travel speed of 20 km/h and a transport width of 1.95 meters. The transport height is 2.796 meters. The lifting force is 39 kN and the turning radius outside is 4.226 meters. The minimum bucket capacity is also 0.8 cubic meters.

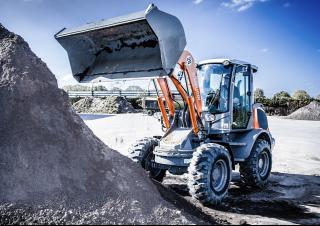

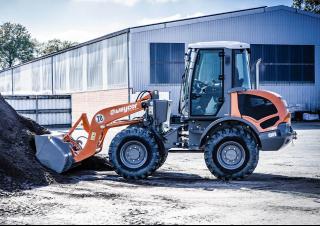

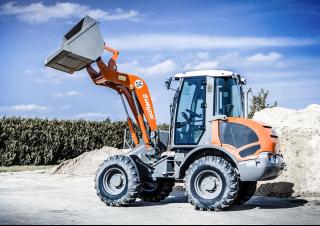

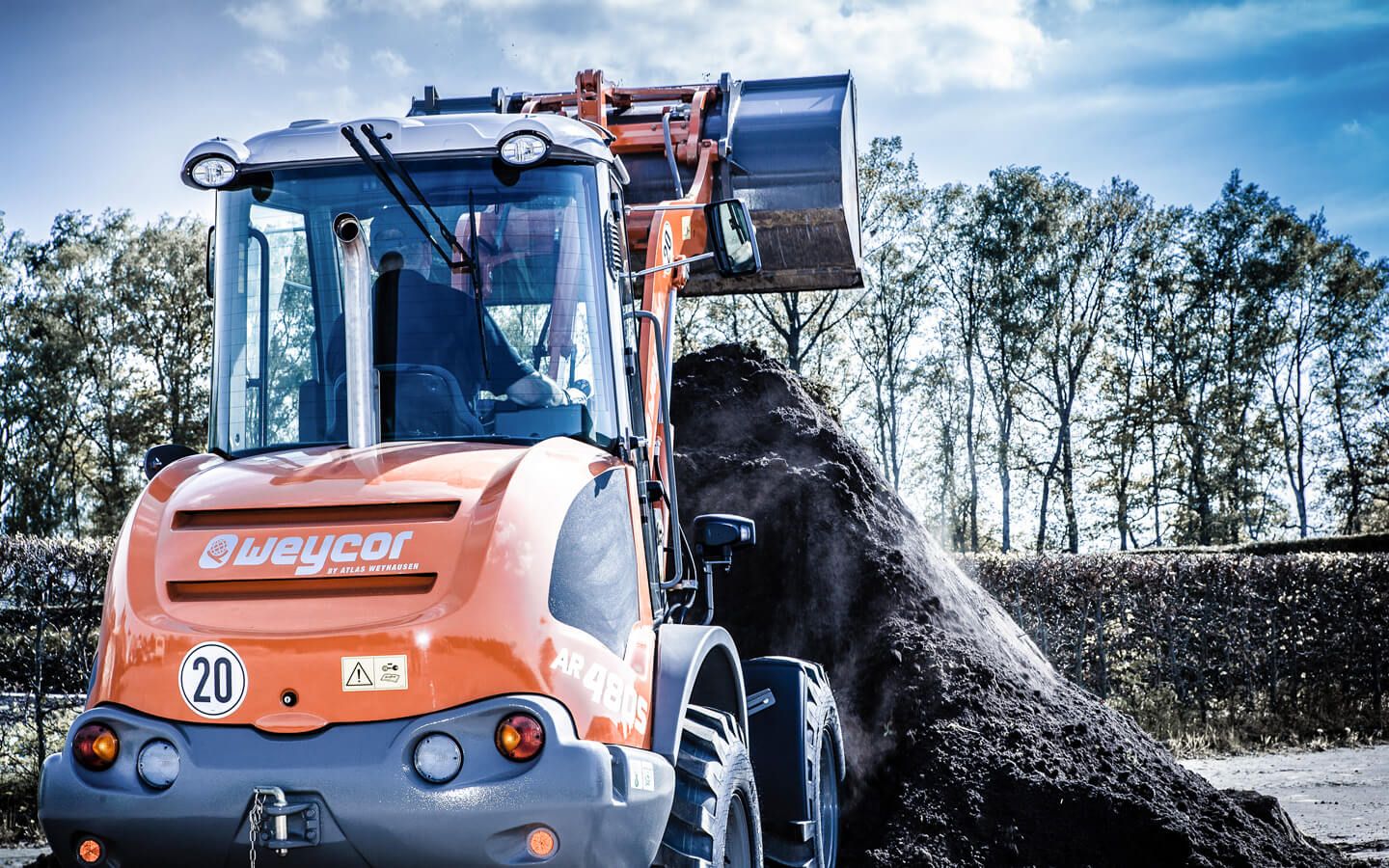

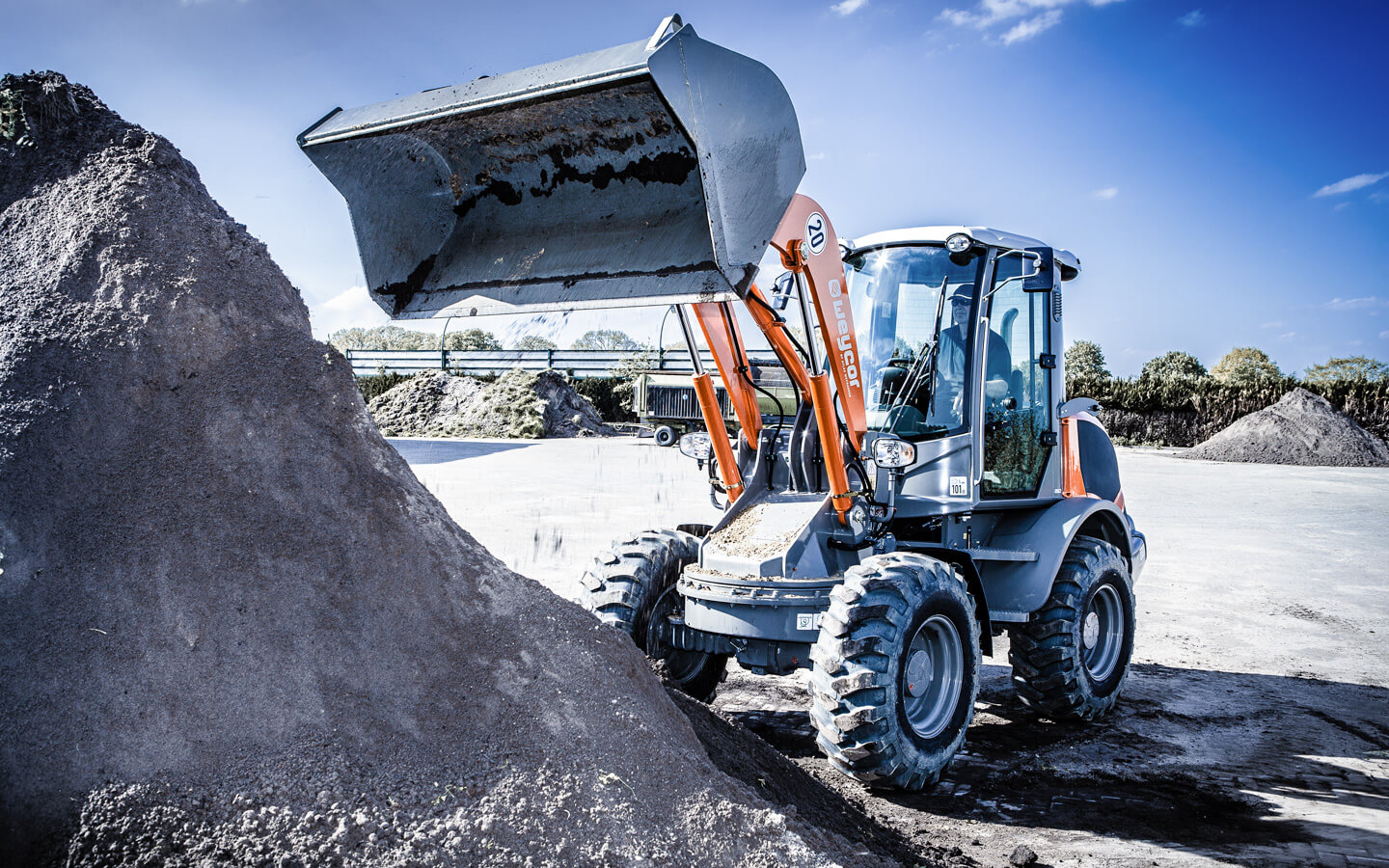

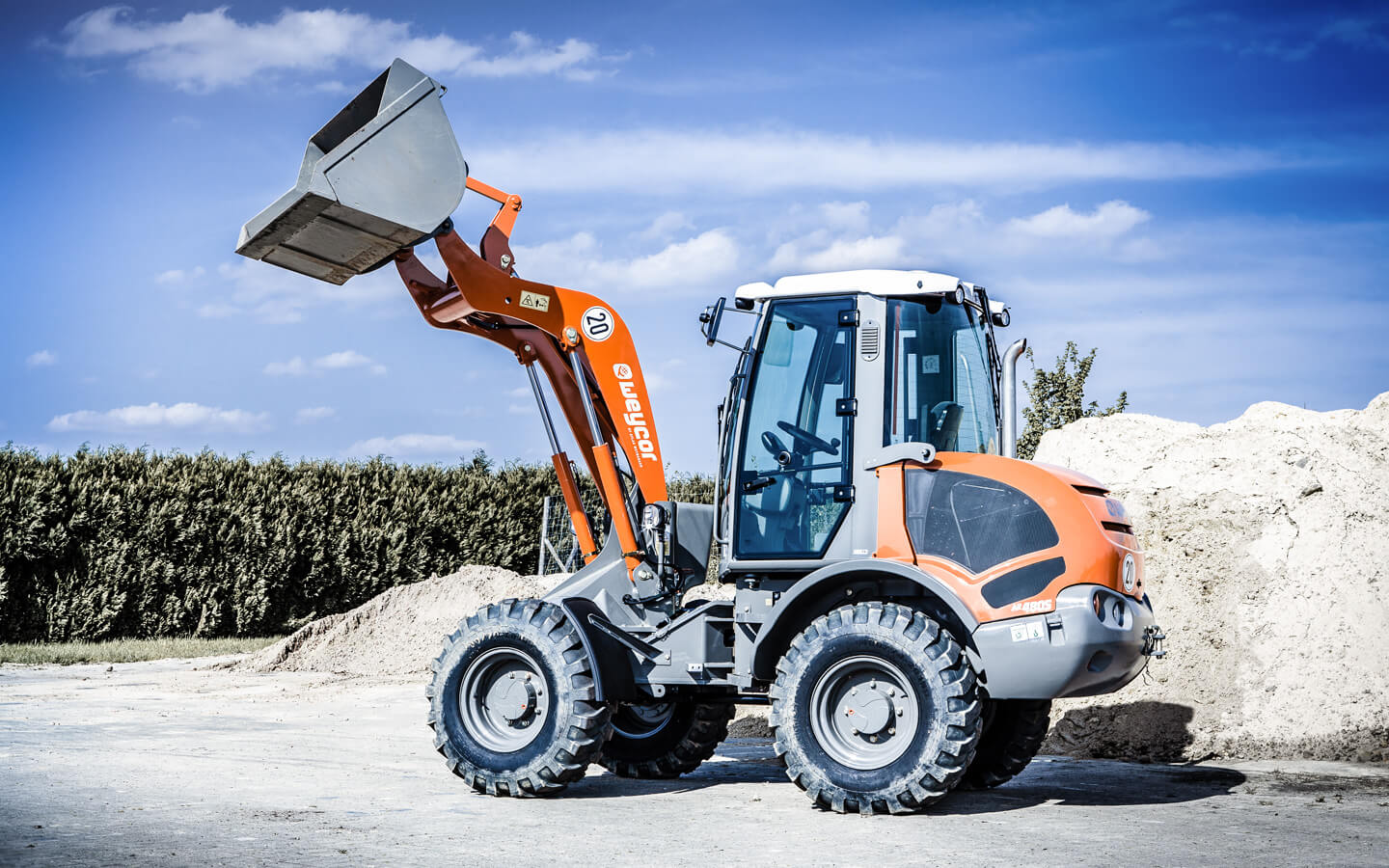

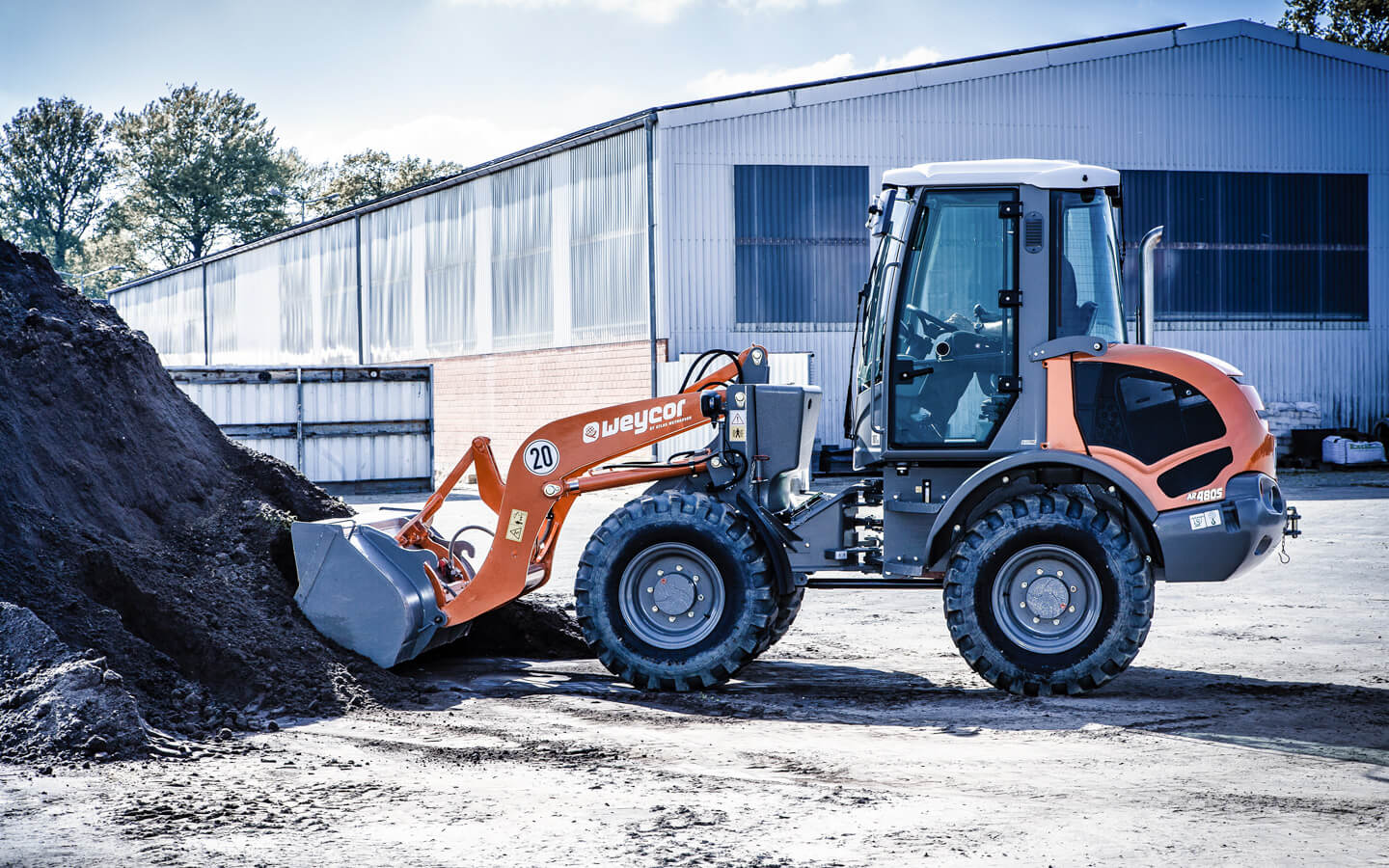

Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S
Wheel Loaders weycor AR 480 S

Visit weycor live at

Technical specs - AR 480 S weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.28 t
Standard tyres
16/70-20 MPT 14 PR
Bucket width
1.97 m
Bucket capacity
0.8 m³
Bucket capacity min.
0.8 m³
Steering mode
KL
Transport length
5.4 m
Transport width
1.95 m
Transport height
2.796 m
Travel speed
20 km/h
Max. discharge height
2.55 m
Turning radius outside
4.226 m
Lifting force
39 kN
Model series
AR
Engine manuf.
Deutz
Engine type
TD2.9 L4
Engine power
55.4 kW
Displacement
2.9 l
Revolutions at max torque
1800 rpm
Max. torque
260 Nm
No. of cylinders
4
Cylinder bore x stroke
92x110 mm
Emission level
V

More technical details, like: bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

weycor AR 480 S FAQ

When was the weycor AR 480 S manufactured?

The weycor AR 480 S was first produced in 2019.

How much does the weycor AR 480 S wheel loader weigh?

The weycor AR 480 S wheel loader weighs 6.28 tons.

What are the transport dimensions of the weycor AR 480 S wheel loader?

The weycor AR 480 S has a transport length of 5.4 meters, a transport width of 1.95 meters, and a transport height of 2.8 meters.

What is the travel speed of the weycor AR 480 S wheel loader?

The weycor AR 480 S has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 480 S wheel loader?

The weycor AR 480 S wheel loader is equipped with standard tyres sized 16/70-20 MPT 14 PR.

What are the maneuverability specifications of the Weycor AR 480 S wheel loader?

The Weycor AR 480 S wheel loader has an articulated-frame steering mode and an outside turning radius of 4.226 meters.

What are the power ratings of the weycor AR 480 S wheel loader?

There is no power rating data available for the weycor AR 480 S wheel loader in the provided source data.

What is the maximum discharge height of the weycor AR 480 S?

The weycor AR 480 S has a maximum discharge height of 2.55 meters.

What are the specifications of the bucket on the weycor AR 480 S wheel loader?

The bucket of the weycor AR 480 S has a capacity of 0.8 cubic meters, a minimum capacity of 0.8 cubic meters, and a width of 1.97 meters.

How much is a weycor AR 480 S Wheel loader (2019u20132025) worth?

The residual value of the weycor AR 480 S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
