AR 320 weycor AR 320 Specifications & Technical Data (2020—2026)

The Weycor AR 320 is a wheel loader manufactured since 2020. It has a weight of 2.5 tons and a transport length of 4.24 meters. Th…

The Weycor AR 320 is a wheel loader manufactured since 2020. It has a weight of 2.5 tons and a transport length of 4.24 meters. The bucket capacity is 0.34 cubic meters with a width of 1.35 meters. The maximum discharge height is 2.3 meters. It has a travel speed of 19 km/h and a transport width of 1.35 meters. The transport height is 2.336 meters. The lifting force is 21 kN and the turning radius outside is 3.242 meters. The minimum bucket capacity is also 0.34 cubic meters.

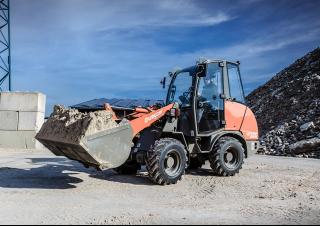

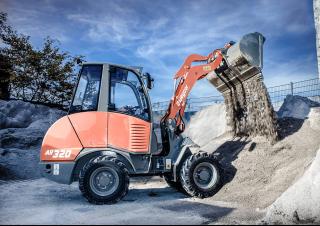

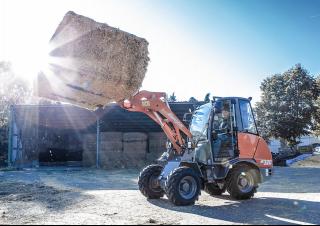

Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320
Wheel Loaders weycor AR 320

Visit weycor live at

Technical specs - AR 320 weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.5 t
Standard tyres
10.0/75-15.3 MPT
Bucket width
1.35 m
Bucket capacity
0.34 m³
Bucket capacity min.
0.34 m³
Steering mode
KL
Transport length
4.24 m
Transport width
1.35 m
Transport height
2.336 m
Travel speed
19 km/h
Max. discharge height
2.3 m
Turning radius outside
3.242 m
Lifting force
21 kN
Model series
AR
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
18.5 kW
Displacement
1.116 l
Revolutions at max torque
3000 rpm
Max. torque
96/1800 Nm
No. of cylinders
3
Emission level
IV

More technical details, like: bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

weycor AR 320 FAQ

When was the weycor AR 320 manufactured?

The weycor AR 320 was first produced in 2020.

How much does the weycor AR 320 weigh?

The weycor AR 320 weighs 2.5 tons.

What are the transport dimensions of the weycor AR 320 wheel loader?

The weycor AR 320 has a transport length of 4.24 meters, a transport width of 1.35 meters, and a transport height of 2.34 meters.

What is the travel speed of the weycor AR 320 wheel loader?

The weycor AR 320 has a travel speed of 19 km/h.

What are the undercarriage specifications of the Weycor AR 320 wheel loader?

The Weycor AR 320 wheel loader is equipped with standard tyres sized 10.0/75-15.3 MPT.

What are the maneuverability specifications of the weycor AR 320 wheel loader?

The weycor AR 320 wheel loader has an articulated-frame steering mode and an outside turning radius of 3.242 meters.

What is the lifting force of the weycor AR 320 wheel loader?

The weycor AR 320 wheel loader has a lifting force of 21 kN. No power rating data is provided for this model.

What is the material handling capacity of the weycor AR 320 in terms of discharge height?

The weycor AR 320 has a maximum discharge height of 2.3 meters.

What are the bucket specifications of the weycor AR 320 wheel loader?

The weycor AR 320 has a bucket capacity of 0.34 cubic meters, a minimum bucket capacity of 0.34 cubic meters, and a bucket width of 1.35 meters.

How much is a weycor AR 320 Wheel loader (2020u20132025) worth?

The residual value of the weycor AR 320 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
