AR 105 e weycor AR 105 e Specifications & Technical Data (2016—2019)

The Weycor AR 105 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 9.45 tons and a transport lengt…

The Weycor AR 105 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 9.45 tons and a transport length of 6.4 meters. The bucket capacity is 1.8 cubic meters with a width of 2.3 meters. The maximum discharge height is 2.93 meters. It has a travel speed of 20 km/h and a transport width of 2.23 meters. The transport height is 2.99 meters. The lifting force is 82 kN and the turning radius outside is 4.85 meters. The bucket capacity minimum is 1.8 cubic meters. It is equipped with a diesel particulate filter, quick hitch hydr., and quick hitch mech.

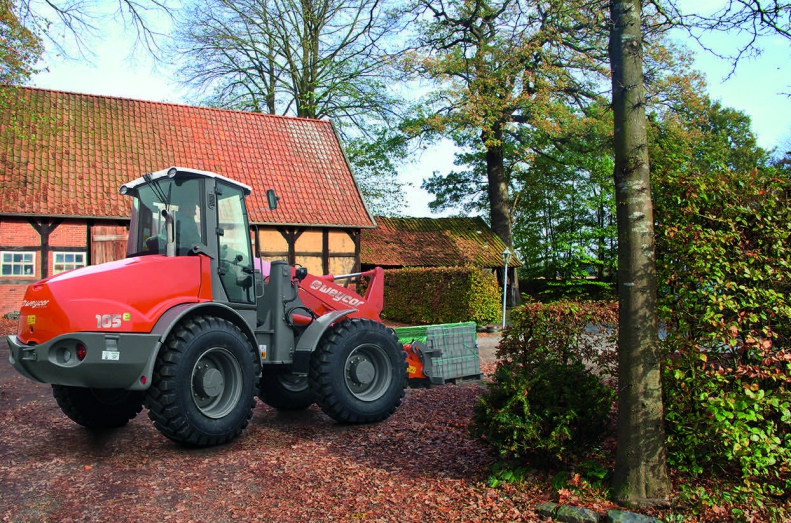

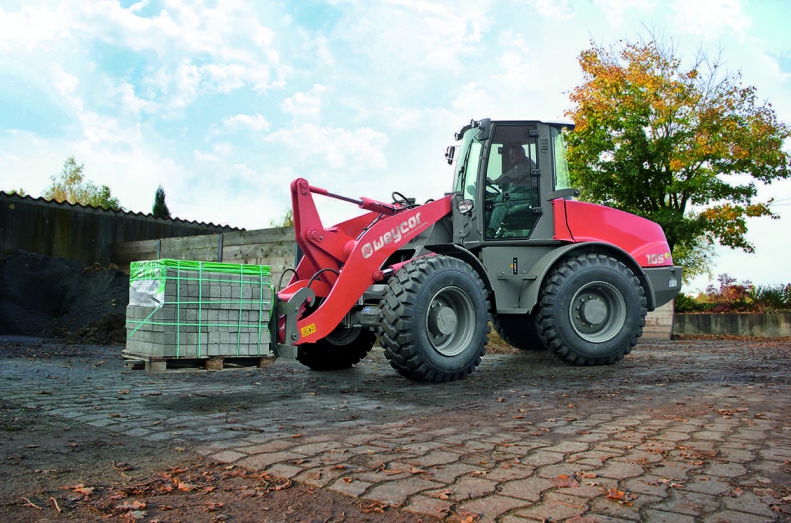

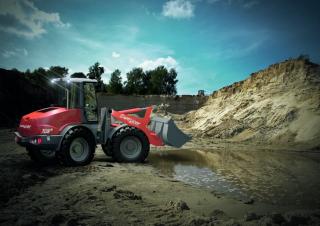

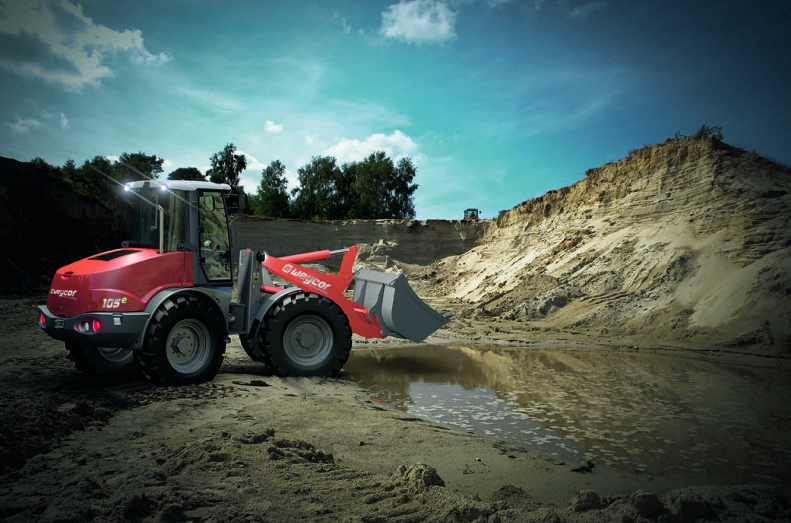

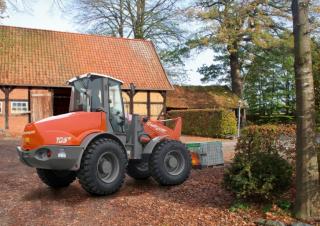

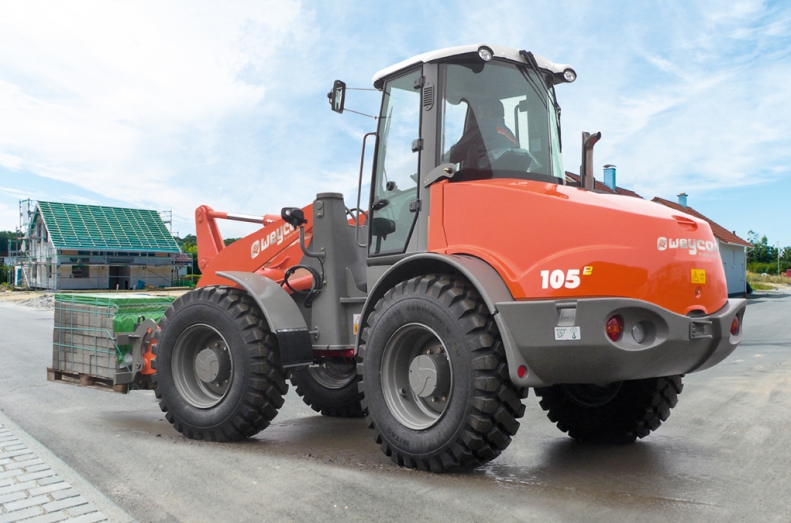

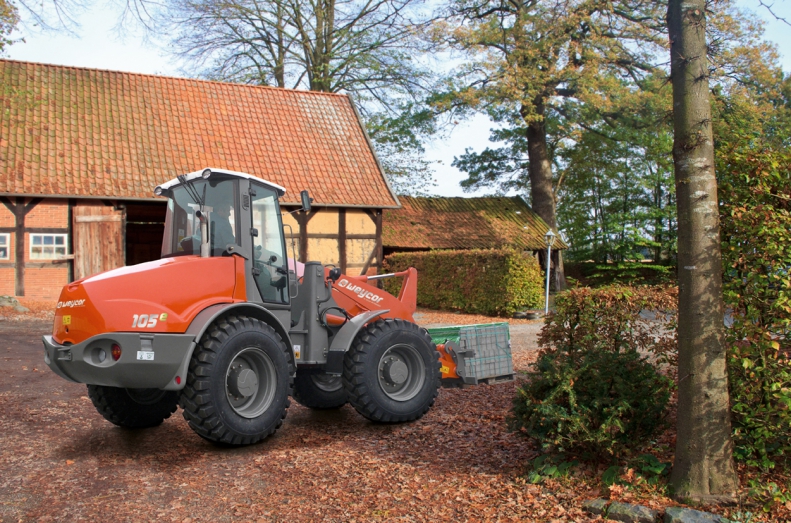

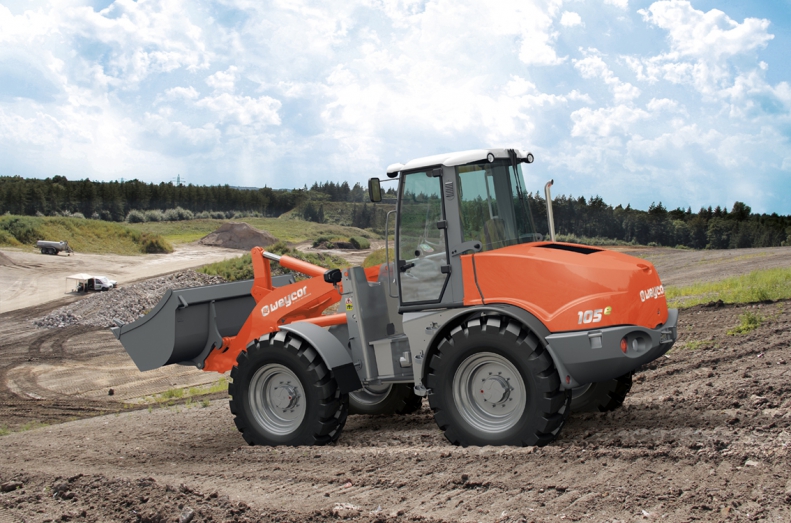

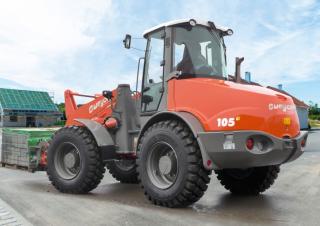

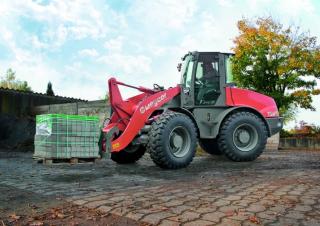

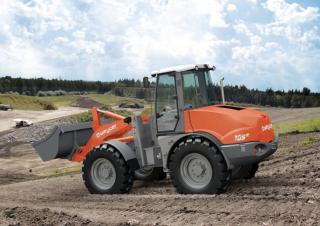

Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e
Wheel Loaders weycor AR 105 e

Visit weycor live at

Technical specs - AR 105 e weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.45 t
Standard tyres
17.5-25 EM
Bucket width
2.3 m
Bucket capacity
1.8 m³
Bucket capacity min.
1.8 m³
Steering mode
KL
Transport length
6.4 m
Transport width
2.23 m
Transport height
2.99 m
Travel speed
20 km/h
Max. discharge height
2.93 m
Turning radius outside
4.85 m
Lifting force
82 kN
Model series
AR
Engine manuf.
Deutz
Engine type
TCD4.1 L04
Engine power
104 kW
Displacement
4.04 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

weycor AR 105 e FAQ

When was the weycor AR 105 e manufactured?

The weycor AR 105 e was manufactured from 2016 to 2019.

How much does the weycor AR 105 e wheel loader weigh?

The weycor AR 105 e wheel loader weighs 9.45 tons.

What are the transport dimensions of the weycor AR 105 e wheel loader?

The weycor AR 105 e has a transport length of 6.4 meters, a transport width of 2.23 meters, and a transport height of 2.99 meters.

What is the travel speed of the weycor AR 105 e wheel loader?

The weycor AR 105 e has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 105 e wheel loader?

The weycor AR 105 e wheel loader is equipped with standard tyres sized 17.5-25 EM.

What are the maneuverability specifications of the Weycor AR 105 e wheel loader?

The Weycor AR 105 e has an articulated-frame steering mode and an outside turning radius of 4.85 meters.

What is the lifting force of the weycor AR 105 e wheel loader?

The weycor AR 105 e wheel loader has a lifting force of 82 kN.

What is the maximum discharge height of the weycor AR 105 e?

The weycor AR 105 e has a maximum discharge height of 2.93 meters.

What are the bucket specifications of the weycor AR 105 e wheel loader?

The weycor AR 105 e wheel loader has a bucket capacity of 1.8 cubic meters, a minimum bucket capacity of 1.8 cubic meters, and a bucket width of 2.3 meters.

How much is a weycor AR 105 e Wheel loader (2016u20132019) worth?

The residual value of the weycor AR 105 e depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
