5080 Weidemann 5080 Specifications & Technical Data (2014—2018)

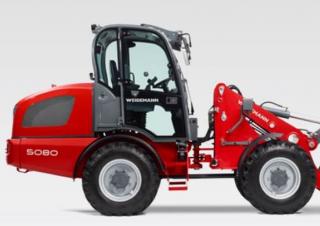

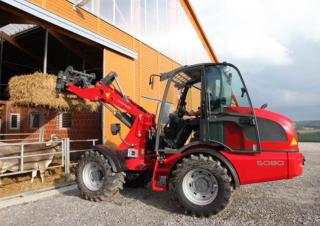

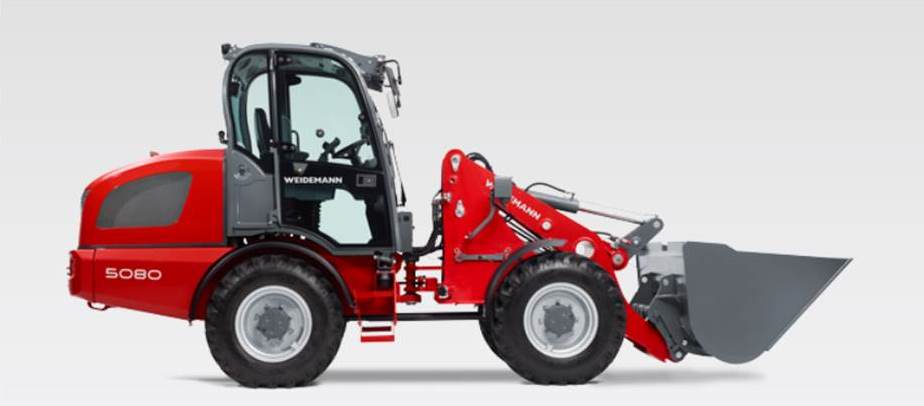

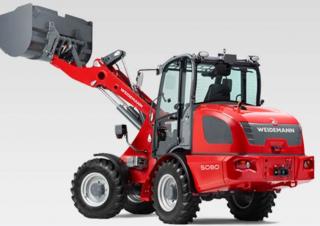

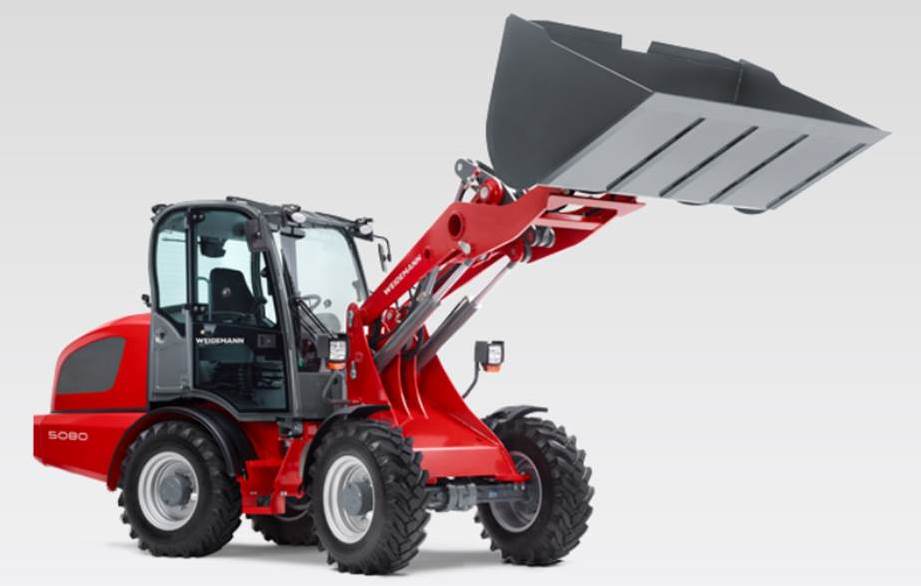

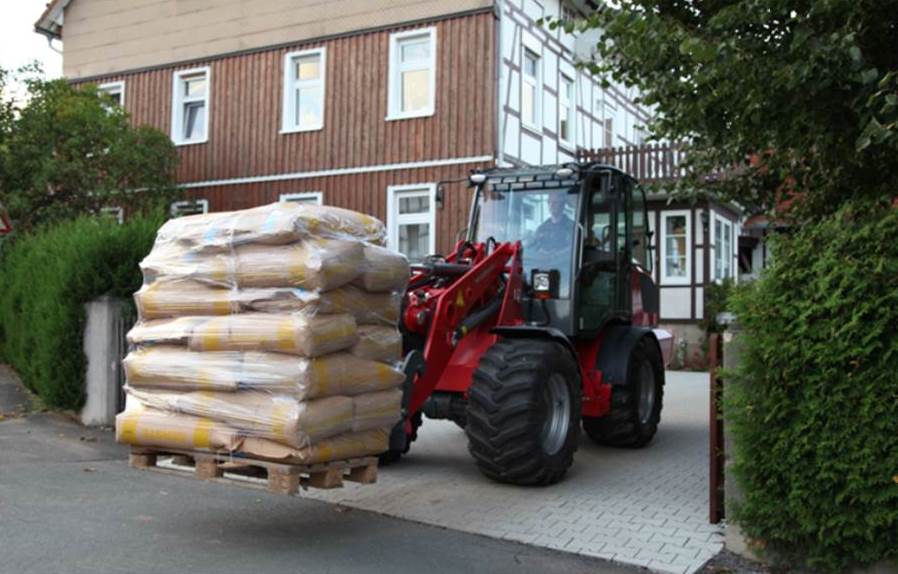

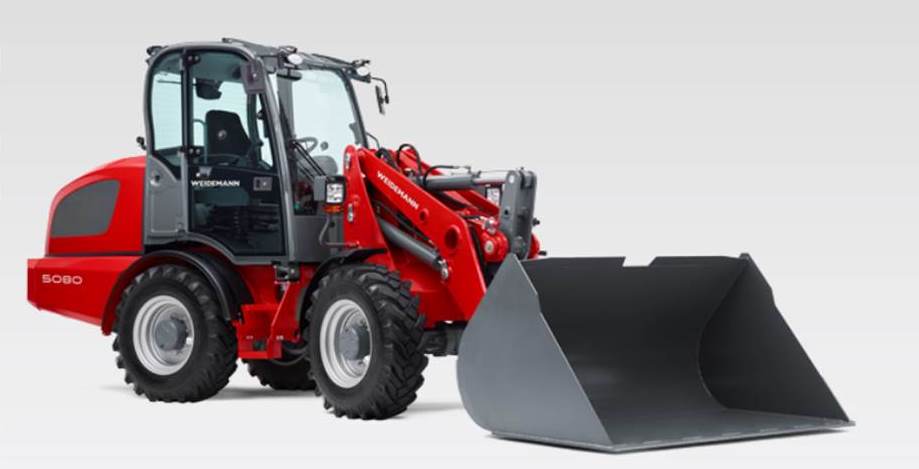

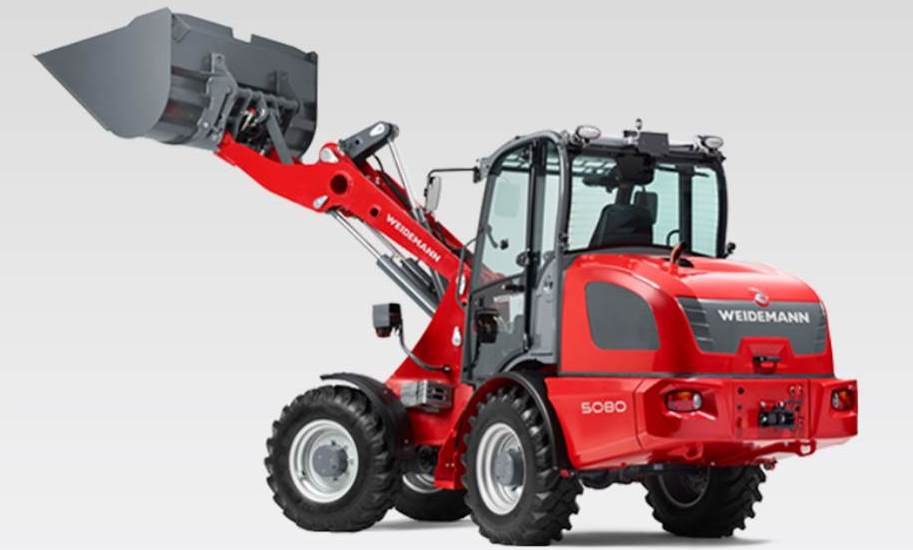

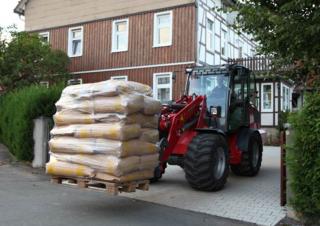

The Weidemann 5080 is a wheel loader manufactured from 2014 to 2018. It has a weight of 7 tons and a transport length of 6 meters.…

The Weidemann 5080 is a wheel loader manufactured from 2014 to 2018. It has a weight of 7 tons and a transport length of 6 meters. The maximum discharge height is 2.758 meters. The transport width is 1 meter and the transport height is 2 meters. It has a turning radius outside of 4 meters. The special equipment includes a diesel particulate filter and a quick hitch hydr.

5080

Years of manufacture: 2014—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 5080 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7 t

Standard tyres: 550/45-22.5 AS ET0

Steering mode: KL

Transport length: 6.127 m

Transport width: 1.99 m

Transport height: 2.694 m

Travel speed: 20 km/h

Max. discharge height: 2.758 m

Turning radius outside: 4.172 m

Engine manuf.: Perkins

Engine type: 854F-E34TAWF

Engine power: 55 kW

Displacement: 3.4 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 5080 FAQ

When was the Weidemann 5080 manufactured?

The Weidemann 5080 was manufactured from 2014 to 2018.

How much does the Weidemann 5080 weigh?

The Weidemann 5080 weighs 7 tons.

What are the transport dimensions of the Weidemann 5080 wheel loader?

The Weidemann 5080 has a transport length of 6.13 meters, a transport width of 1.99 meters, and a transport height of 2.69 meters.

What is the travel speed of the Weidemann 5080 wheel loader?

The Weidemann 5080 has a travel speed of 20 km/h.

What are the standard tyre specifications for the undercarriage of the Weidemann 5080?

The Weidemann 5080 is equipped with standard tyres sized 550/45-22.5 AS ET0 on its undercarriage.

What are the maneuverability specifications of the Weidemann 5080 wheel loader?

The Weidemann 5080 wheel loader has an articulated-frame steering system and an outside turning radius of 4.172 meters.

What is the maximum discharge height of the Weidemann 5080 wheel loader?

The Weidemann 5080 wheel loader has a maximum discharge height of 2.76 meters.

How much is a Weidemann 5080 Wheel loader (2014u20132018) worth?

The residual value of the Weidemann 5080 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
