4080LPT Weidemann 4080LPT Specifications & Technical Data (2016—2019)

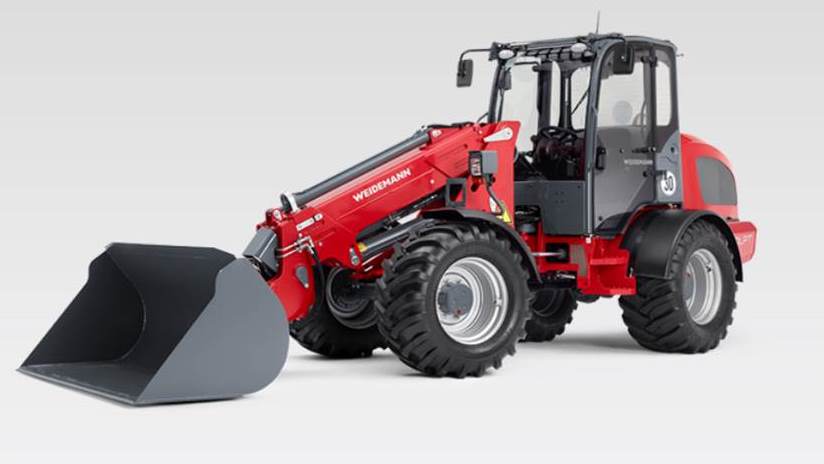

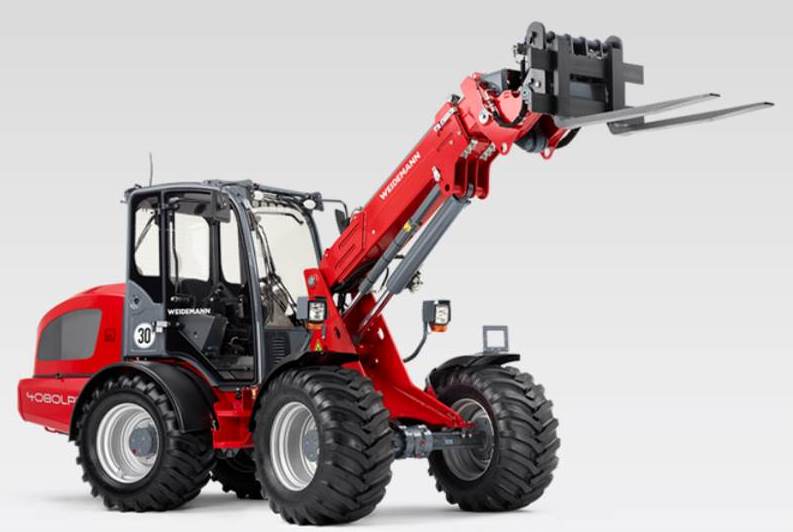

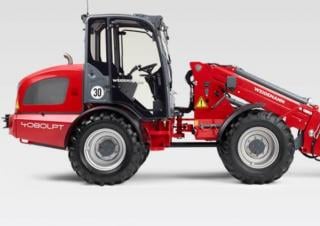

The Weidemann 4080LPT is a wheel loader manufactured from 2016 to 2019. It has a weight of 6 tons and a transport length of 5 mete…

The Weidemann 4080LPT is a wheel loader manufactured from 2016 to 2019. It has a weight of 6 tons and a transport length of 5 meters. The maximum discharge height is 4.23 meters and it can travel at a speed of 20 km/h. The transport width is 1 meter and the transport height is 2 meters. The turning radius outside is 4 meters. Special equipment includes a quick hitch hydraulic system and telescopic capabilities.

4080LPT

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4080LPT Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6 t

Standard tyres: 12.5-20 MPT ET 0

Steering mode: KL

Transport length: 5.929 m

Transport width: 1.74 m

Transport height: 2.495 m

Travel speed: 20 km/h

Max. discharge height: 4.23 m

Turning radius outside: 4.275 m

Model series: T

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 4080LPT FAQ

When was the Weidemann 4080LPT manufactured?

The Weidemann 4080LPT was manufactured from 2016 to 2019.

How much does the Weidemann 4080LPT weigh?

The Weidemann 4080LPT weighs 6 tons.

What are the transport dimensions of the Weidemann 4080LPT wheel loader?

The Weidemann 4080LPT has a transport length of 5.93 meters, a transport width of 1.74 meters, and a transport height of 2.5 meters.

What is the travel speed of the Weidemann 4080LPT wheel loader?

The Weidemann 4080LPT has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 4080LPT?

The Weidemann 4080LPT comes with standard tyres sized 12.5-20 MPT ET 0.

What are the maneuverability specifications of the Weidemann 4080LPT wheel loader?

The Weidemann 4080LPT has an articulated-frame steering system and an outside turning radius of 4.275 meters.

What is the material handling capacity of the Weidemann 4080LPT in terms of maximum discharge height?

The Weidemann 4080LPT has a maximum discharge height of 4.23 meters.
