4080LP Weidemann 4080LP Specifications & Technical Data (2016—2019)

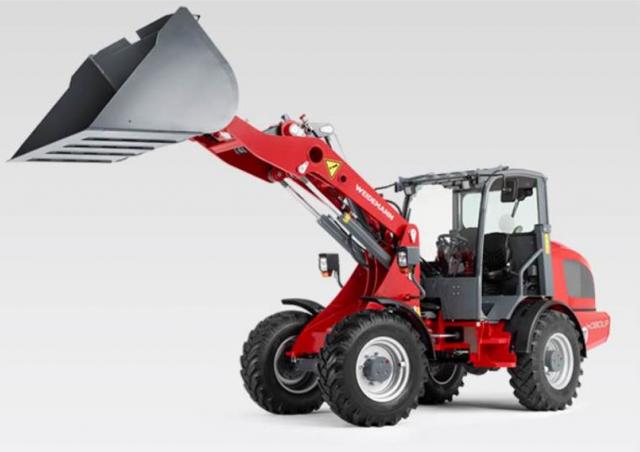

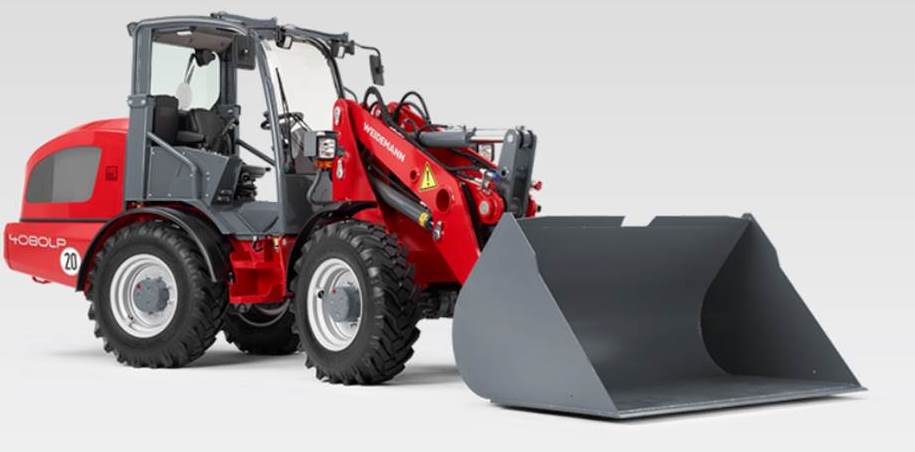

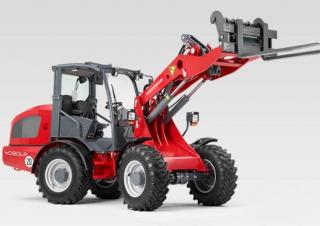

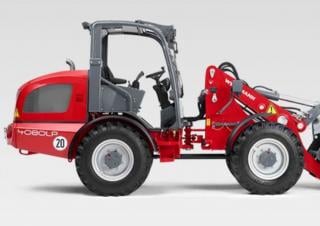

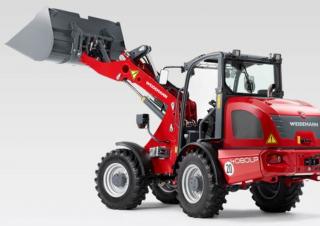

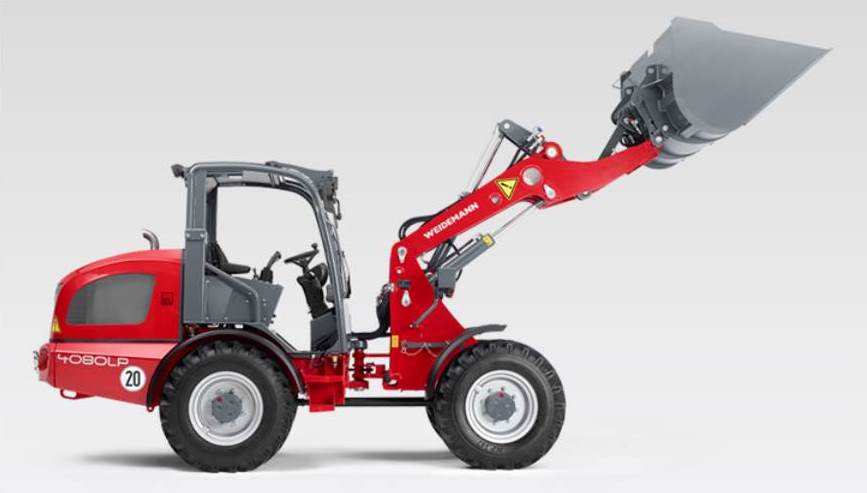

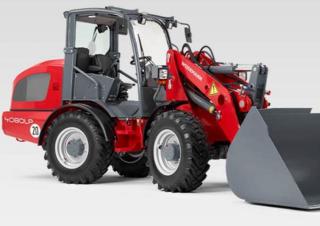

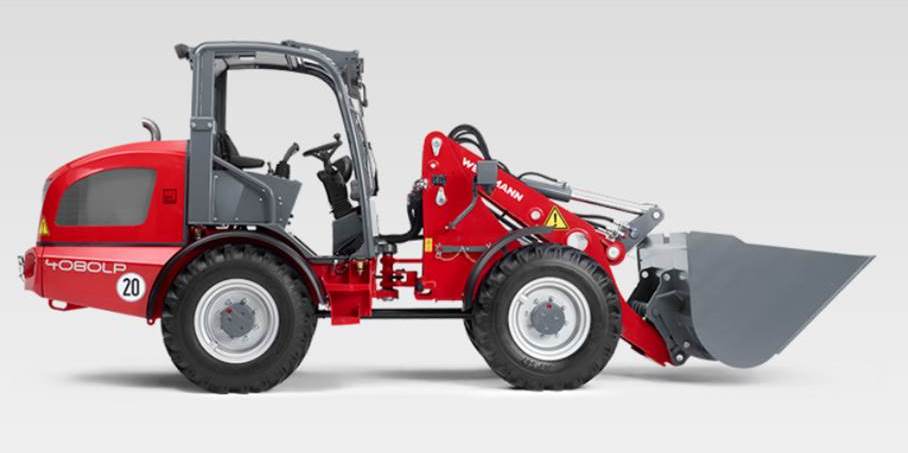

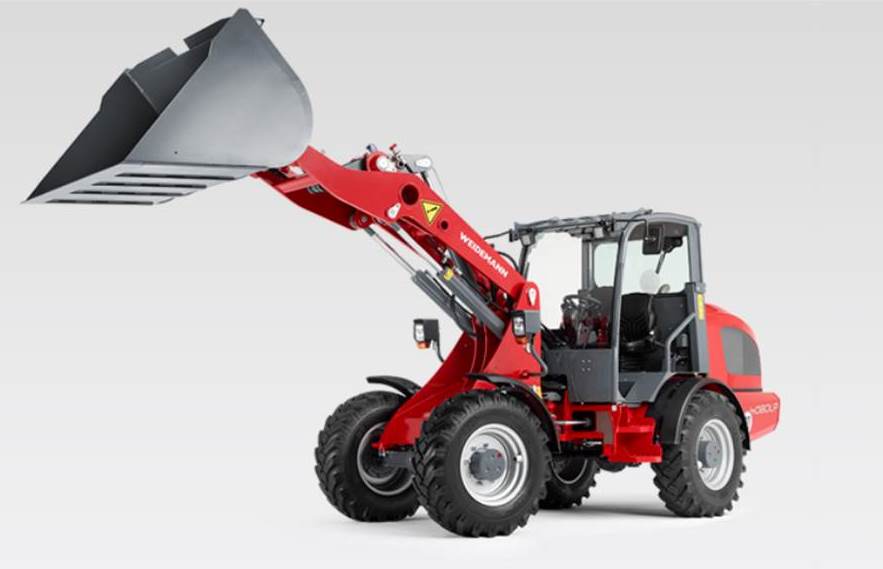

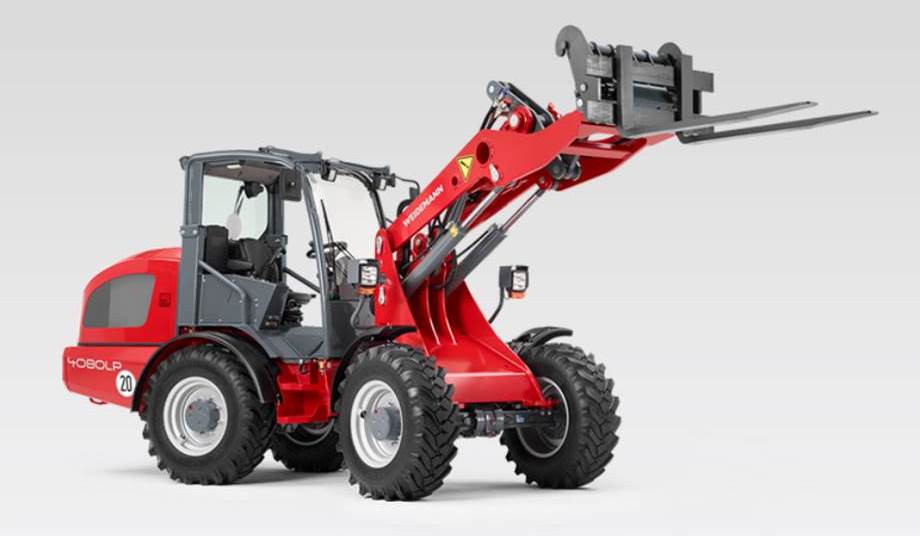

The Weidemann 4080LP is a wheel loader manufactured from 2016 to 2019. It has a weight of 5.8 tons and a transport length of 5 met…

The Weidemann 4080LP is a wheel loader manufactured from 2016 to 2019. It has a weight of 5.8 tons and a transport length of 5 meters. The maximum discharge height is 2.86 meters, and it can travel at a speed of 20 km/h. The transport width is 1 meter, and the transport height is 2 meters. The turning radius outside is 4 meters, and it is equipped with a quick hitch hydraulic mechanism.

4080LP

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4080LP Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 12.5-20 MPT ET0

Steering mode: KL

Transport length: 5.760 m

Transport width: 1.742 m

Transport height: 2.495 m

Travel speed: 20 km/h

Max. discharge height: 2.86 m

Turning radius outside: 4.242 m

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

4080LP Weidemann Specification for Europe (DE)

Weidemann 4080LP FAQ

When was the Weidemann 4080LP manufactured?

The Weidemann 4080LP was manufactured from 2016 to 2019.

How much does the Weidemann 4080LP weigh?

The Weidemann 4080LP weighs 5.8 tons.

What are the transport dimensions of the Weidemann 4080LP wheel loader?

The Weidemann 4080LP has a transport length of 5.76 meters, a transport width of 1.74 meters, and a transport height of 2.5 meters.

What is the travel speed of the Weidemann 4080LP wheel loader?

The Weidemann 4080LP has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 4080LP wheel loader?

The Weidemann 4080LP wheel loader is equipped with standard tyres sized 12.5-20 MPT ET0.

What are the maneuverability specifications of the Weidemann 4080LP wheel loader?

The Weidemann 4080LP has an articulated-frame steering mode and an outside turning radius of 4.242 meters.

What is the maximum discharge height of the Weidemann 4080LP?

The Weidemann 4080LP has a maximum discharge height of 2.86 meters.

How much is a Weidemann 4080LP Wheel loader (2016u20132019) worth?

The residual value of the Weidemann 4080LP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
