4070 CX 100 Weidemann 4070 CX 100 Specifications & Technical Data (2006—2008)

The Weidemann 4070 CX 100 is a wheel loader manufactured from 2006 to 2008. It has a weight of 5.73 tons and a transport length of…

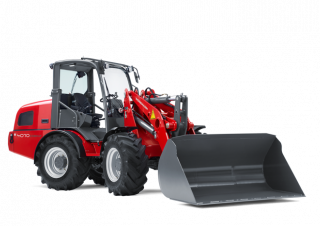

The Weidemann 4070 CX 100 is a wheel loader manufactured from 2006 to 2008. It has a weight of 5.73 tons and a transport length of 4.78 meters. The bucket capacity is 1 cubic meter, with a minimum capacity of 1 cubic meter. The transport width is 1.75 meters and the transport height is 2.62 meters. It is equipped with a quick hitch mechanism.

Wheel Loaders Weidemann 4070 CX 100

Technical specs - 4070 CX 100 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.73 t
Standard tyres
12.5-20
Bucket capacity
1 m³
Bucket capacity min.
1 m³
Steering mode
KL
Transport length
4.78 m
Transport width
1.75 m
Transport height
2.62 m
Model series
CX
Engine manuf.
Perkins
Engine type
1104C-44T
Engine power
74.4 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Weidemann 4070 CX 100 FAQ

When was the Weidemann 4070 CX 100 manufactured?

The Weidemann 4070 CX 100 was manufactured from 2006 to 2008.

How much does the Weidemann 4070 CX 100 weigh?

The Weidemann 4070 CX 100 weighs 5.73 tons.

What are the transport dimensions of the Weidemann 4070 CX 100 wheel loader?

The Weidemann 4070 CX 100 has a transport length of 4.78 meters, a transport width of 1.75 meters, and a transport height of 2.62 meters.

What are the undercarriage specifications of the Weidemann 4070 CX 100?

The Weidemann 4070 CX 100 is equipped with standard tyres sized 12.5-20.

What type of steering does the Weidemann 4070 CX 100 use for maneuverability?

The Weidemann 4070 CX 100 uses articulated-frame steering for maneuverability.

What is the bucket capacity of the Weidemann 4070 CX 100 wheel loader?

The Weidemann 4070 CX 100 wheel loader has a bucket capacity of 1 cubic meter.

How much is a Weidemann 4070 CX 100 Wheel loader (2006u20132008) worth?

The residual value of the Weidemann 4070 CX 100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
