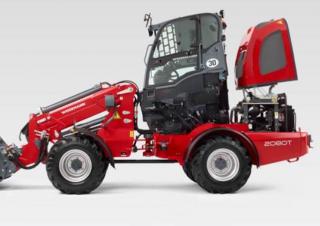

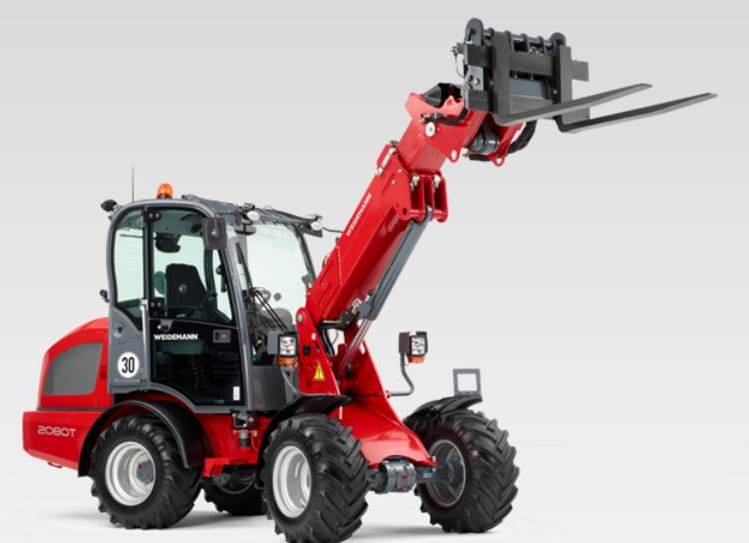

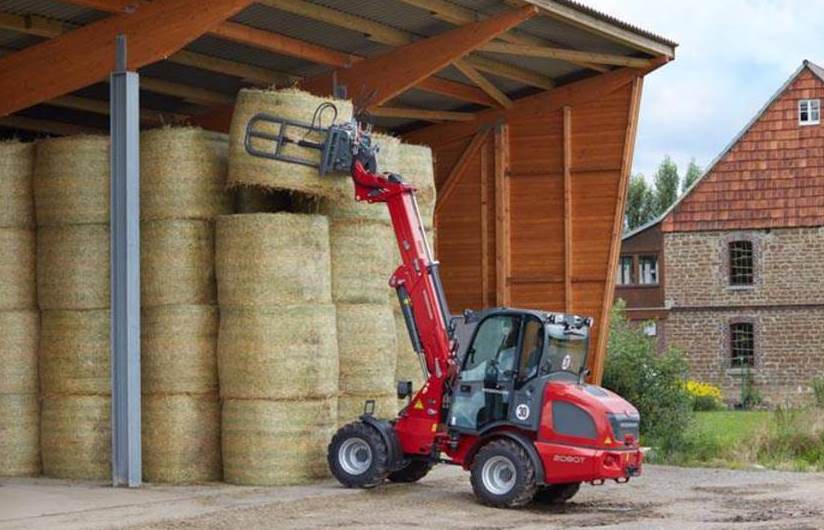

2080T Weidemann 2080T Specifications & Technical Data (2015—2019)

The Weidemann 2080T is a wheel loader manufactured from 2015 to 2019. It has a weight of 4.5 tons and a transport length of 5 mete…

The Weidemann 2080T is a wheel loader manufactured from 2015 to 2019. It has a weight of 4.5 tons and a transport length of 5 meters. The maximum discharge height is 3.46 meters, and it has a transport width of 1.41 meters and a transport height of 2 meters. The turning radius outside is 3 meters. Special equipment includes a diesel particulate filter, quick hitch hydraulic, and telescopic features.

2080T

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2080T Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.5 t

Standard tyres: 11.5/80-15.3 AS ET 40

Steering mode: KL

Transport length: 5.468 m

Transport width: 1.41 m

Transport height: 2.359 m

Travel speed: 20 km/h

Max. discharge height: 3.46 m

Turning radius outside: 3.761 m

Model series: T

Engine manuf.: Perkins

Engine type: 404F 22T

Engine power: 44.7 kW

Displacement: 2.216 l

Revolutions at max torque: 2800 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 2080T FAQ

When was the Weidemann 2080T manufactured?

The Weidemann 2080T was manufactured from 2015 to 2019.

How much does the Weidemann 2080T weigh?

The Weidemann 2080T weighs 4.5 tons.

What are the transport dimensions of the Weidemann 2080T wheel loader?

The Weidemann 2080T has a transport length of 5.47 meters, a transport width of 1.41 meters, and a transport height of 2.36 meters.

What is the travel speed of the Weidemann 2080T wheel loader?

The Weidemann 2080T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 2080T wheel loader?

The Weidemann 2080T wheel loader is equipped with standard tyres sized 11.5/80-15.3 AS ET 40.

What are the maneuverability specifications of the Weidemann 2080T wheel loader?

The Weidemann 2080T has an articulated-frame steering mode and an outside turning radius of 3.761 meters.

What is the maximum discharge height of the Weidemann 2080T?

The Weidemann 2080T has a maximum discharge height of 3.46 meters.

How much is a Weidemann 2080T Wheel loader (2015u20132019) worth?

The residual value of the Weidemann 2080T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
