2080 LP T Weidemann 2080 LP T Specifications & Technical Data (2019—2024)

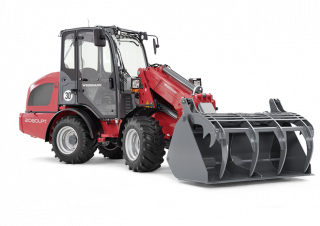

The Weidemann 2080 LP T is a wheel loader manufactured since 2019. It has a weight of 4.4 tons and a transport length of 5.5 meter…

The Weidemann 2080 LP T is a wheel loader manufactured since 2019. It has a weight of 4.4 tons and a transport length of 5.5 meters. The maximum discharge height is 3.465 meters and it can travel at a speed of 20 km/h. The transport width is 1.415 meters and the transport height is 2.4 meters. The turning radius outside is 3.795 meters.

2080 LP T

Years of manufacture: 2019—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2080 LP T Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.4 t

Standard tyres: 11.5/80-15.3 AS ET 40

Steering mode: KL

Transport length: 5.5 m

Transport width: 1.415 m

Transport height: 2.4 m

Travel speed: 20 km/h

Max. discharge height: 3.465 m

Turning radius outside: 3.795 m

Model series: T

Engine manuf.: Deutz

Engine type: TD2.9 L4 S5

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 260/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 2080 LP T FAQ

When was the Weidemann 2080 LP T manufactured?

The Weidemann 2080 LP T was first produced in 2019.

How much does the Weidemann 2080 LP T weigh?

The Weidemann 2080 LP T weighs 4.4 tons.

What are the transport dimensions of the Weidemann 2080 LP T wheel loader?

The Weidemann 2080 LP T has a transport length of 5.5 meters, a transport width of 1.42 meters, and a transport height of 2.4 meters.

What is the travel speed of the Weidemann 2080 LP T wheel loader?

The Weidemann 2080 LP T has a travel speed of 20 km/h.

What are the standard tyres used on the Weidemann 2080 LP T wheel loader?

The Weidemann 2080 LP T is equipped with standard tyres sized 11.5/80-15.3 AS ET 40.

What are the maneuverability specifications of the Weidemann 2080 LP T wheel loader?

The Weidemann 2080 LP T has an articulated-frame steering mode and an outside turning radius of 3.795 meters.

What is the material handling capacity of the Weidemann 2080 LP T in terms of discharge height?

The Weidemann 2080 LP T has a maximum discharge height of 3.47 meters.
