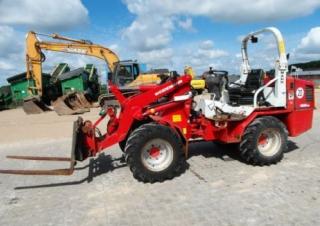

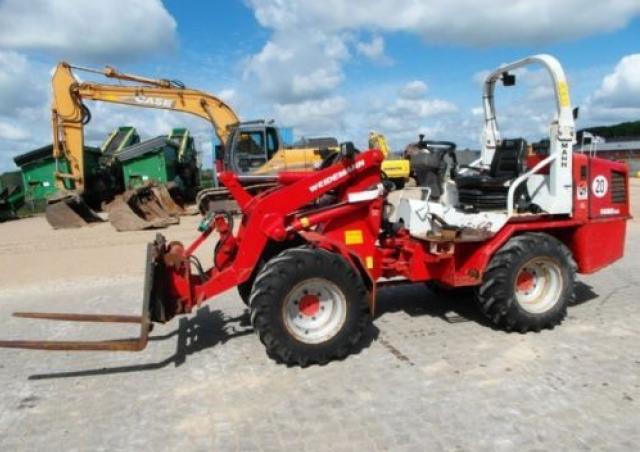

Weidemann 1490 Wheel Loader Specs & Dimensions (2002 - 2006)

Technical specs - 1490 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.4 t

Standard tyres: 11.5/80-15.3 AS

Bucket capacity: 0.45 m³

Bucket capacity min.: 0.45 m³

Steering mode: KL

Engine manuf.: Deutz

Engine type: BF4L2011

Engine power: 50 kW

Displacement: 3.11 l

Revolutions at max torque: 2500 rpm

More technical details, like: bucket width, bucket capacity max., transport length, transport width, transport height, travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, max. torque...

More technical details, like: bucket width, bucket capacity max., transport length, transport width, transport height, travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Weidemann 1490 FAQ

When was the Weidemann 1490 manufactured?

The Weidemann 1490 was manufactured from 2002 to 2006.

How much does the Weidemann 1490 weigh?

The Weidemann 1490 weighs 3.4 tons.

What are the undercarriage specifications of the Weidemann 1490?

The Weidemann 1490 is equipped with standard tyres sized 11.5/80-15.3 AS.

What is the steering mode of the Weidemann 1490?

The Weidemann 1490 has articulated-frame steering.

What is the bucket capacity of the Weidemann 1490 wheel loader?

The Weidemann 1490 wheel loader has a bucket capacity of 0.45 cubic meters.

How much is a Weidemann 1490 Wheel loader (2002u20132006) worth?

The residual value of the Weidemann 1490 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
