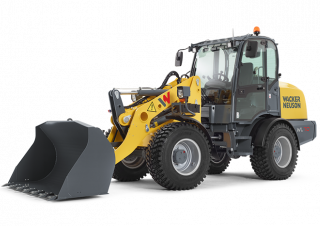

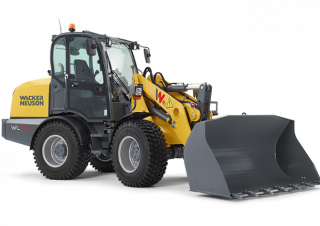

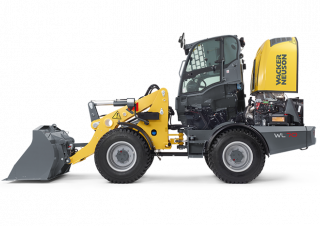

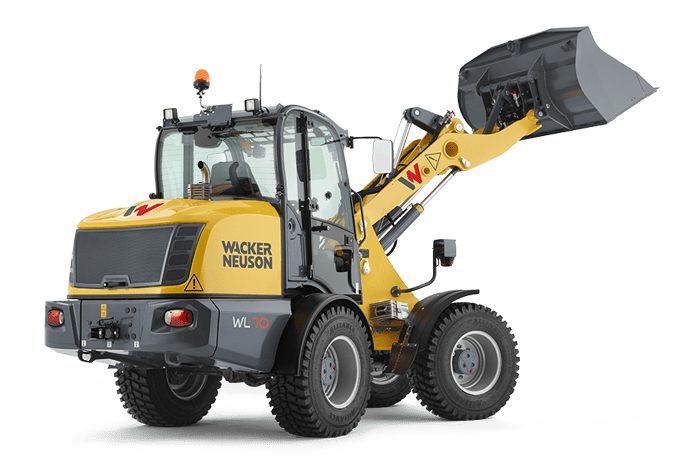

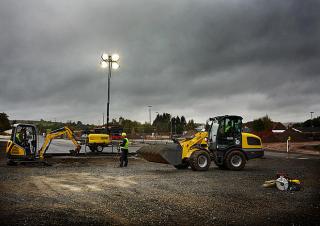

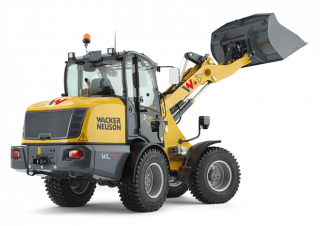

WL70 Wacker Neuson WL70 Specifications & Technical Data (2019—2023)

The Wacker Neuson WL70 is a wheel loader that has been manufactured since 2019. It has a weight of 7.14 tons and a transport lengt…

The Wacker Neuson WL70 is a wheel loader that has been manufactured since 2019. It has a weight of 7.14 tons and a transport length of 4.78 meters. The bucket capacity is 1.05 cubic meters, with a bucket width of 2 meters. The maximum discharge height is 2.84 meters. It has a travel speed of 28 km/h and a transport width of 1.829 meters. The transport height is 2.693 meters and the turning radius outside is 3.686 meters. The bucket capacity is a minimum of 1.05 cubic meters. It is equipped with a quick hitch hydr. for added convenience.

Visit Wacker Neuson live at

WL70

Years of manufacture: 2019—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - WL70 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.14 t

Standard tyres: 405/70 R 18 EM ET 0

Bucket width: 2 m

Bucket capacity: 1.05 m³

Steering mode: KL

Transport length: 4.78 m

Transport width: 1.829 m

Transport height: 2.693 m

Travel speed: 28 km/h

Max. discharge height: 2.84 m

Turning radius outside: 3.686 m

Model series: WL

Engine manuf.: Perkins

Engine type: 854E-E34TAWF

Engine power: 90 kW

Displacement: 3.4 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson WL70 FAQ

When was the Wacker Neuson WL70 manufactured?

The Wacker Neuson WL70 was manufactured from 2019 to 2023.

How much does the Wacker Neuson WL70 weigh?

The Wacker Neuson WL70 weighs 7.14 tons.

What are the transport dimensions of the Wacker Neuson WL70 wheel loader?

The Wacker Neuson WL70 has a transport length of 4.78 meters, a transport width of 1.83 meters, and a transport height of 2.69 meters.

What is the travel speed of the Wacker Neuson WL70 wheel loader?

The Wacker Neuson WL70 has a travel speed of 28 km/h.

What are the standard tyre specifications of the Wacker Neuson WL70 wheel loader?

The Wacker Neuson WL70 is equipped with standard tyres sized 405/70 R 18 EM ET 0.

What are the maneuverability specifications of the Wacker Neuson WL70 wheel loader?

The Wacker Neuson WL70 features articulated-frame steering and has an outside turning radius of 3.686 meters.

What is the maximum discharge height of the Wacker Neuson WL70?

The Wacker Neuson WL70 has a maximum discharge height of 2.84 meters.

What are the specifications of the bucket on the Wacker Neuson WL70 wheel loader?

The bucket of the Wacker Neuson WL70 has a capacity of 1.05 cubic meters and a width of 2 meters.
