WL34 Wacker Neuson WL34 Specifications & Technical Data (2014—2022)

The Wacker Neuson WL34 is a wheel loader that has been manufactured since 2014. It has a weight of 3.27 tons and a transport lengt…

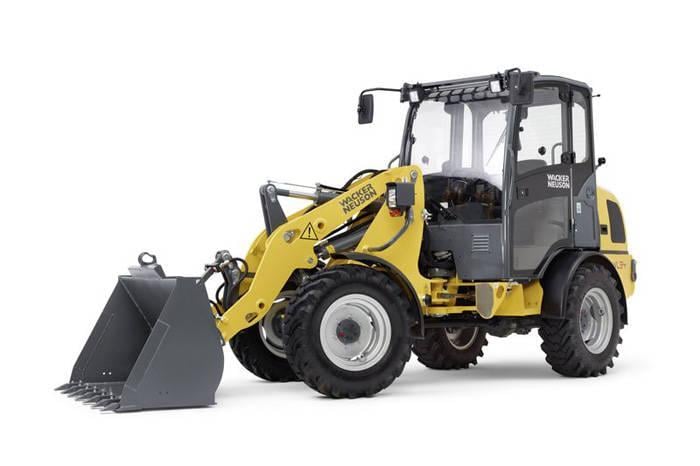

The Wacker Neuson WL34 is a wheel loader that has been manufactured since 2014. It has a weight of 3.27 tons and a transport length of 4.956 meters. The bucket capacity is 0.6 cubic meters with a bucket width of 1.65 meters. The maximum discharge height is 2.444 meters and it has a travel speed of 20 km/h. The transport width is 1.57 meters and the transport height is 2.248 meters. It has a lifting force of 37.06 kN and a turning radius outside of 3.219 meters. The special equipment included is a quick hitch hydr.

Visit Wacker Neuson live at

WL34

Years of manufacture: 2014—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - WL34 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.27 t

Standard tyres: 12.0/75-18 MPT ET 30

Bucket width: 1.65 m

Bucket capacity: 0.6 m³

Bucket capacity min.: 0.6 m³

Steering mode: KL

Transport length: 4.956 m

Transport width: 1.57 m

Transport height: 2.248 m

Travel speed: 20 km/h

Max. discharge height: 2.444 m

Turning radius outside: 3.219 m

Lifting force: 37.06 kN

Model series: WL

Engine manuf.: Perkins

Engine type: 404D-22

Engine power: 35.7 kW

Displacement: 2.216 l

Revolutions at max torque: 2600 rpm

No. of cylinders: 4

Emission level: III A

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson WL34 FAQ

When was the Wacker Neuson WL34 manufactured?

The Wacker Neuson WL34 was manufactured from 2014 to 2022.

How much does the Wacker Neuson WL34 weigh?

The Wacker Neuson WL34 weighs 3.27 tons.

What are the transport dimensions of the Wacker Neuson WL34 wheel loader?

The Wacker Neuson WL34 has a transport length of 4.96 meters, a transport width of 1.57 meters, and a transport height of 2.25 meters.

What is the travel speed of the Wacker Neuson WL34 wheel loader?

The Wacker Neuson WL34 has a travel speed of 20 km/h.

What are the standard tyres of the Wacker Neuson WL34?

The Wacker Neuson WL34 has standard tyres sized 12.0/75-18 MPT ET 30.

What are the maneuverability specifications of the Wacker Neuson WL34 wheel loader?

The Wacker Neuson WL34 wheel loader has an outside turning radius of 3.219 meters and uses articulated-frame steering.

What is the lifting force of the Wacker Neuson WL34 wheel loader?

The Wacker Neuson WL34 has a lifting force of 37.06 kN.

What is the maximum discharge height of the Wacker Neuson WL34?

The Wacker Neuson WL34 has a maximum discharge height of 2.44 meters.

What are the bucket specifications of the Wacker Neuson WL34 wheel loader?

The Wacker Neuson WL34 has a bucket capacity of 0.6 cubic meters, a minimum bucket capacity of 0.6 cubic meters, and a bucket width of 1.65 meters.

How much is a Wacker Neuson WL34 Wheel loader (2014u20132022) worth?

The residual value of the Wacker Neuson WL34 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
