13.63 C Venieri 13.63 C Specifications & Technical Data (2021—2026)

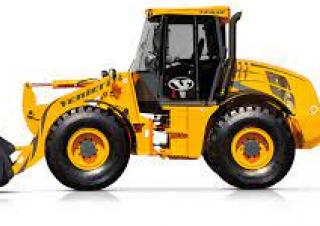

The Venieri 13.63 C is a wheel loader manufactured since 2021. It has a weight of 14.15 tons and a transport length of 6.95 meters…

The Venieri 13.63 C is a wheel loader manufactured since 2021. It has a weight of 14.15 tons and a transport length of 6.95 meters. The bucket capacity is 2.7 cubic meters, with a bucket width of 2.54 meters. The maximum discharge height is 3.95 meters, and it has a travel speed of 40 km/h. The transport width is 2.54 meters, and the transport height is 3.214 meters. The turning radius outside is 6.1 meters. Special equipment includes air conditioning, a diesel particulate filter, and a quick hitch hydraulic mechanism.

Wheel Loaders Venieri 13.63 C

Technical specs - 13.63 C Venieri

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.7 t
Standard tyres
20.5 x 25
Bucket width
2.54 m
Bucket capacity
2.7 m³
Bucket capacity min.
2.7 m³
Bucket capacity max.
3.5 m³
Steering mode
KL
Transport length
6.89 m
Transport width
2.54 m
Transport height
3.19 m
Travel speed
40 km/h
Max. discharge height
3.87 m
Turning radius outside
6.15 m
Lifting force
12000 kN
Engine manuf.
Deutz
Engine type
TCD6.1 L6
Engine power
135 kW
Displacement
6.1 l
Revolutions at max torque
2200 rpm
Max. torque
750 Nm
No. of cylinders
6
Cylinder bore x stroke
101x126 mm
Emission level
V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Venieri 13.63 C FAQ

When was the Venieri 13.63 C manufactured?

The Venieri 13.63 C was first produced in 2021.

How much does the Venieri 13.63 C wheel loader weigh?

The Venieri 13.63 C wheel loader weighs 13.7 tons.

What are the transport dimensions of the Venieri 13.63 C wheel loader?

The Venieri 13.63 C has a transport length of 6.89 meters, a transport width of 2.54 meters, and a transport height of 3.19 meters.

What is the travel speed of the Venieri 13.63 C wheel loader?

The Venieri 13.63 C has a travel speed of 40 km/h.

What is the standard tyre size of the Venieri 13.63 C wheel loader?

The Venieri 13.63 C wheel loader is equipped with standard tyres of size 20.5 x 25.

What are the maneuverability specifications of the Venieri 13.63 C wheel loader?

The Venieri 13.63 C wheel loader has an articulated-frame steering system and an outside turning radius of 6.15 meters.

What is the lifting force rating of the Venieri 13.63 C wheel loader?

The Venieri 13.63 C wheel loader has a lifting force rating of 12000 kN.

What is the maximum discharge height of the Venieri 13.63 C?

The Venieri 13.63 C has a maximum discharge height of 3.87 meters.

What are the bucket specifications of the Venieri 13.63 C wheel loader?

The Venieri 13.63 C wheel loader has a bucket capacity ranging from 2.7 to 3.5 cubic meters and a bucket width of 2.54 meters.

How much is a Venieri 13.63 C Wheel loader (2021u20132025) worth?

The residual value of the Venieri 13.63 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
