3448 L Thaler 3448 L Specifications & Technical Data (2020—2026)

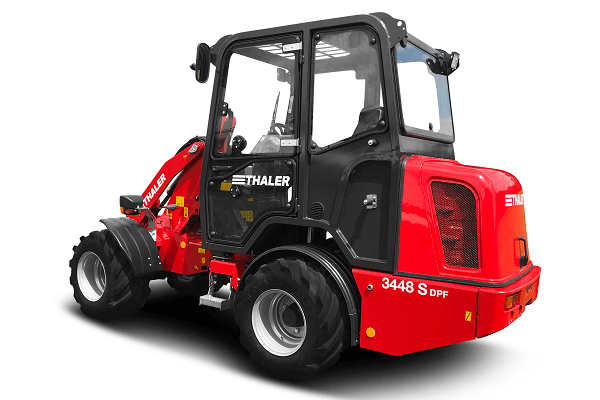

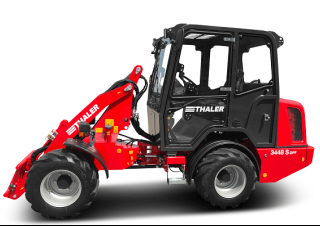

The Thaler 3448 L is a wheel loader manufactured by Thaler since 2020. It has a weight of 2.7 tons and a transport length of 3.45 …

The Thaler 3448 L is a wheel loader manufactured by Thaler since 2020. It has a weight of 2.7 tons and a transport length of 3.45 meters. The bucket capacity is 0.403 cubic meters with a width of 1.6 meters. The maximum discharge height is 1.99 meters and it has a travel speed of 20 km/h. The transport width is 1.16 meters and the transport height is 2.27 meters. The turning radius outside is 2.382 meters. It is equipped with a diesel particulate filter and a quick hitch hydr.

3448 L

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3448 L Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.7 t

Standard tyres: 10.0/75-15.3

Bucket width: 1.6 m

Bucket capacity: 0.403 m³

Bucket capacity min.: 0.403 m³

Steering mode: KL

Transport length: 3.45 m

Transport width: 1.16 m

Transport height: 2.27 m

Travel speed: 20 km/h

Max. discharge height: 1.99 m

Turning radius outside: 2.382 m

Model series: 2020

Engine manuf.: Yanmar

Engine type: k.A.

Engine power: 35.4 kW

Displacement: 2.22 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 4

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Thaler 3448 L FAQ

When was the Thaler 3448 L manufactured?

The Thaler 3448 L was first produced in 2020.

How much does the Thaler 3448 L wheel loader weigh?

The Thaler 3448 L wheel loader weighs 2.7 tons.

What are the transport dimensions of the Thaler 3448 L wheel loader?

The Thaler 3448 L has a transport length of 3.45 meters, a transport width of 1.16 meters, and a transport height of 2.27 meters.

What is the travel speed of the Thaler 3448 L wheel loader?

The Thaler 3448 L wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Thaler 3448 L wheel loader?

The Thaler 3448 L wheel loader is equipped with standard tyres sized 10.0/75-15.3.

What are the maneuverability specifications of the Thaler 3448 L wheel loader?

The Thaler 3448 L wheel loader has an articulated-frame steering system and an outside turning radius of 2.382 meters.

What is the maximum discharge height of the Thaler 3448 L wheel loader?

The Thaler 3448 L wheel loader has a maximum discharge height of 1.99 meters.

What are the specifications of the bucket on the Thaler 3448 L wheel loader?

The Thaler 3448 L wheel loader has a bucket capacity of 0.4 cubic meters, a minimum bucket capacity of 0.4 cubic meters, and a bucket width of 1.6 meters.
