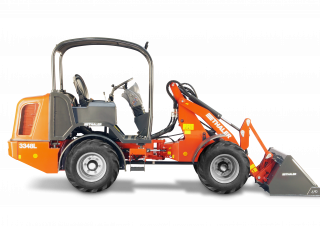

3348 L Thaler 3348 L Specifications & Technical Data (2016—2020)

The Thaler 3348 L is a wheel loader manufactured by Thaler from 2016 to 2020. It has a weight of 2.71 tons and a transport length …

The Thaler 3348 L is a wheel loader manufactured by Thaler from 2016 to 2020. It has a weight of 2.71 tons and a transport length of 3.34 meters. The bucket capacity is 0.403 cubic meters with a width of 1.6 meters. The maximum discharge height is 1.985 meters and it has a travel speed of 20 km/h. The transport width is 1.16 meters and the transport height is 2.26 meters. The turning radius outside is 2.382 meters. The bucket capacity is a minimum of 0.403 cubic meters. It is equipped with a quick hitch hydr., telescopic feature.

3348 L

Years of manufacture: 2016—2020

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3348 L Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.71 t

Standard tyres: 10.0/75-15.3

Bucket width: 1.6 m

Bucket capacity: 0.403 m³

Bucket capacity min.: 0.403 m³

Steering mode: KL

Transport length: 3.34 m

Transport width: 1.16 m

Transport height: 2.26 m

Travel speed: 20 km/h

Max. discharge height: 1.985 m

Turning radius outside: 2.382 m

Model series: 2016

Engine manuf.: Yanmar

Engine type: k.A.

Engine power: 35.4 kW

Displacement: 2.22 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 4

Emission level: IIIA

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Thaler 3348 L FAQ

When was the Thaler 3348 L manufactured?

The Thaler 3348 L was manufactured from 2016 to 2020.

How much does the Thaler 3348 L wheel loader weigh?

The Thaler 3348 L wheel loader weighs 2.71 tons.

What are the transport dimensions of the Thaler 3348 L wheel loader?

The Thaler 3348 L has a transport length of 3.34 meters, a transport width of 1.16 meters, and a transport height of 2.26 meters.

What is the travel speed of the Thaler 3348 L wheel loader?

The Thaler 3348 L has a travel speed of 20 km/h.

What are the standard tyres of the Thaler 3348 L wheel loader?

The Thaler 3348 L wheel loader is equipped with standard tyres sized 10.0/75-15.3.

What are the maneuverability specifications of the Thaler 3348 L wheel loader?

The Thaler 3348 L wheel loader has an articulated-frame steering system and an outside turning radius of 2.382 meters.

What is the maximum discharge height of the Thaler 3348 L wheel loader?

The Thaler 3348 L wheel loader has a maximum discharge height of 1.99 meters.

What are the specifications of the bucket on the Thaler 3348 L wheel loader?

The Thaler 3348 L wheel loader has a bucket capacity of 0.4 cubic meters, a minimum bucket capacity of 0.4 cubic meters, and a bucket width of 1.6 meters.
