3348 H Thaler 3348 H Specifications & Technical Data (2016—2020)

The Thaler 3348 H is a wheel loader manufactured by Thaler from 2016 to 2020. It has a weight of 2.78 tons and a transport length …

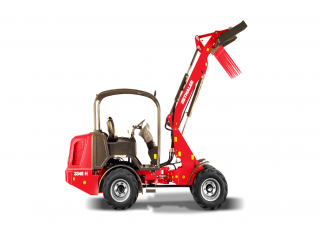

The Thaler 3348 H is a wheel loader manufactured by Thaler from 2016 to 2020. It has a weight of 2.78 tons and a transport length of 4.095 meters. The bucket capacity is 0.403 cubic meters with a bucket width of 1.6 meters. The maximum discharge height is 2.59 meters and it has a travel speed of 20 km/h. The transport width is 1.16 meters and the transport height is 2.26 meters. The turning radius outside is 2.382 meters. The machine is equipped with a quick hitch hydr. for added convenience.

Wheel Loaders Thaler 3348 H

Technical specs - 3348 H Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.78 t
Standard tyres
10.0/75-15.3
Bucket width
1.6 m
Bucket capacity
0.403 m³
Bucket capacity min.
0.403 m³
Steering mode
KL
Transport length
4.095 m
Transport width
1.16 m
Transport height
2.26 m
Travel speed
20 km/h
Max. discharge height
2.59 m
Turning radius outside
2.382 m
Model series
2016
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
35.4 kW
Displacement
2.22 l
Revolutions at max torque
3000 rpm
No. of cylinders
4
Emission level
IIIA

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Thaler 3348 H FAQ

When was the Thaler 3348 H manufactured?

The Thaler 3348 H was manufactured from 2016 to 2020.

How much does the Thaler 3348 H wheel loader weigh?

The Thaler 3348 H wheel loader weighs 2.78 tons.

What are the transport dimensions of the Thaler 3348 H wheel loader?

The Thaler 3348 H has a transport length of 4.1 meters, a transport width of 1.16 meters, and a transport height of 2.26 meters.

What is the travel speed of the Thaler 3348 H wheel loader?

The Thaler 3348 H wheel loader has a travel speed of 20 km/h.

What are the undercarriage tyre specifications of the Thaler 3348 H wheel loader?

The Thaler 3348 H wheel loader is equipped with standard tyres sized 10.0/75-15.3.

What are the maneuverability specifications of the Thaler 3348 H wheel loader?

The Thaler 3348 H wheel loader has an articulated-frame steering system and an outside turning radius of 2.382 meters.

What is the maximum discharge height of the Thaler 3348 H wheel loader?

The Thaler 3348 H wheel loader has a maximum discharge height of 2.59 meters.

What are the bucket specifications of the Thaler 3348 H wheel loader?

The Thaler 3348 H wheel loader has a bucket capacity of 0.4 cubic meters, a minimum bucket capacity of 0.4 cubic meters, and a bucket width of 1.6 meters.

How much is a Thaler 3348 H Wheel loader (2016u20132020) worth?

The residual value of the Thaler 3348 H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
