3248 T-5A Thaler 3248 T-5A Specifications & Technical Data (2019—2020)

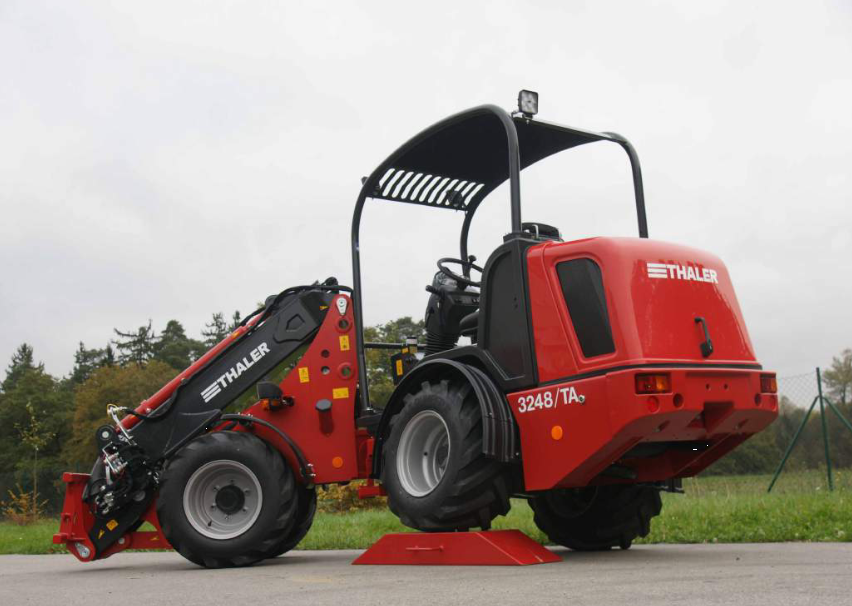

The Thaler 3248 T-5A is a wheel loader manufactured by Thaler from 2019 to 2020. It has a weight of 3.49 tons and a transport leng…

The Thaler 3248 T-5A is a wheel loader manufactured by Thaler from 2019 to 2020. It has a weight of 3.49 tons and a transport length of 4.21 meters. The bucket capacity is 0.43 cubic meters with a width of 1.7 meters. The maximum discharge height is 3.27 meters. It has a travel speed of 20 km/h and a transport width of 1.66 meters. The transport height is 2.26 meters and the turning radius outside is 2.51 meters. The bucket capacity is a minimum of 0.43 cubic meters. It is equipped with a quick hitch hydr., telescopic.

3248 T-5A

Years of manufacture: 2019—2020

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3248 T-5A Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.49 t

Standard tyres: 400/50-15

Bucket width: 1.7 m

Bucket capacity: 0.43 m³

Bucket capacity min.: 0.43 m³

Transport length: 4.21 m

Transport width: 1.66 m

Transport height: 2.26 m

Travel speed: 20 km/h

Max. discharge height: 3.27 m

Turning radius outside: 2.51 m

Model series: 2019

Engine manuf.: Yanmar

Engine type: k.A.

Engine power: 35.4 kW

Displacement: 2.22 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 4

Emission level: IIIA

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Thaler 3248 T-5A FAQ

When was the Thaler 3248 T-5A manufactured?

The Thaler 3248 T-5A was manufactured from 2019 to 2020.

How much does the Thaler 3248 T-5A wheel loader weigh?

The Thaler 3248 T-5A wheel loader weighs 3.49 tons.

What are the transport dimensions of the Thaler 3248 T-5A wheel loader?

The Thaler 3248 T-5A has a transport length of 4.21 meters, a transport width of 1.66 meters, and a transport height of 2.26 meters.

What is the travel speed of the Thaler 3248 T-5A wheel loader?

The Thaler 3248 T-5A has a travel speed of 20 km/h.

What are the undercarriage specifications of the Thaler 3248 T-5A wheel loader?

The Thaler 3248 T-5A wheel loader is equipped with standard tyres sized 400/50-15.

What is the turning radius of the Thaler 3248 T-5A wheel loader?

The Thaler 3248 T-5A has an outside turning radius of 2.51 meters.

What is the maximum discharge height of the Thaler 3248 T-5A wheel loader?

The Thaler 3248 T-5A wheel loader has a maximum discharge height of 3.27 meters.

What are the specifications of the primary work tool bucket on the Thaler 3248 T-5A wheel loader?

The Thaler 3248 T-5A is equipped with a bucket that has a capacity of 0.43 cubic meters and a width of 1.7 meters.
