2838 H Thaler 2838 H Specifications & Technical Data (2019—2026)

The Thaler 2838 H is a wheel loader manufactured by Thaler since 2019. It has a weight of 2.17 tons and a transport length of 3.8 …

The Thaler 2838 H is a wheel loader manufactured by Thaler since 2019. It has a weight of 2.17 tons and a transport length of 3.8 meters. The bucket capacity is 0.35 cubic meters with a width of 1.4 meters. The maximum discharge height is 2.59 meters. It has a travel speed of 18 km/h and a transport width of 1.16 meters. The transport height is 2.24 meters and the turning radius outside is 2.4 meters. The bucket capacity remains at a minimum of 0.35 cubic meters. It is equipped with a diesel particulate filter and a quick hitch hydr.

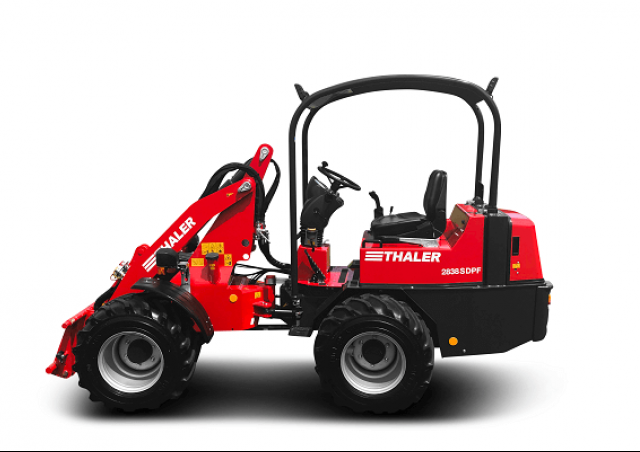

Wheel Loaders Thaler 2838 H

Technical specs - 2838 H Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.17 t
Standard tyres
10.0/75-15.3-AS Profil
Bucket width
1.4 m
Bucket capacity
0.35 m³
Bucket capacity min.
0.35 m³
Steering mode
KL
Transport length
3.8 m
Transport width
1.16 m
Transport height
2.24 m
Travel speed
18 km/h
Max. discharge height
2.59 m
Turning radius outside
2.4 m
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
28.2 kW
Displacement
1.64 l
Revolutions at max torque
3000 rpm
No. of cylinders
3
Emission level
V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Thaler 2838 H FAQ

When was the Thaler 2838 H manufactured?

The Thaler 2838 H was first produced in 2019.

How much does the Thaler 2838 H weigh?

The Thaler 2838 H weighs 2.17 tons.

What are the transport dimensions of the Thaler 2838 H wheel loader?

The Thaler 2838 H has a transport length of 3.8 meters, a transport width of 1.16 meters, and a transport height of 2.24 meters.

What is the travel speed of the Thaler 2838 H wheel loader?

The Thaler 2838 H has a travel speed of 18 km/h.

What are the undercarriage specifications of the Thaler 2838 H wheel loader?

The Thaler 2838 H wheel loader is equipped with standard tyres sized 10.0/75-15.3-AS Profil.

What are the maneuverability specifications of the Thaler 2838 H wheel loader?

The Thaler 2838 H has an articulated-frame steering system and an outside turning radius of 2.4 meters.

What is the maximum discharge height of the Thaler 2838 H wheel loader?

The Thaler 2838 H wheel loader has a maximum discharge height of 2.59 meters.

What are the specifications of the bucket on the Thaler 2838 H wheel loader?

The Thaler 2838 H wheel loader has a bucket capacity of 0.35 cubic meters, a minimum bucket capacity of 0.35 cubic meters, and a bucket width of 1.4 meters.
