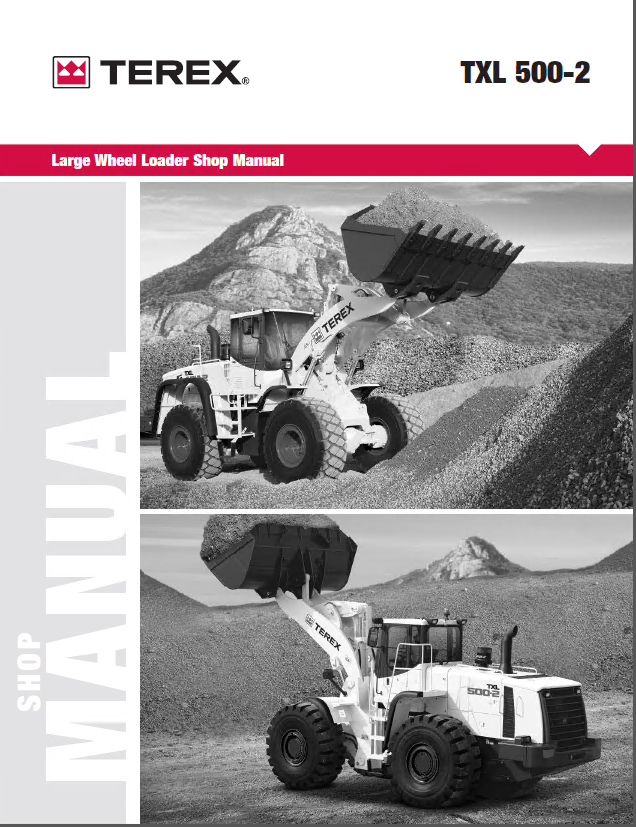

TXL 500-2 Terex TXL 500-2 Specifications & Technical Data (2006—2023)

Transmission

Type: “Full Power Shift” transmission. It can be used in manual or automatic modes. Equipped with a modulation system allowing soft gear shifting and inversion of travel direction. The gear and direction shifting is operated by a single lever to the left of the steering wheel. A travel direction control is also mounted on the hydraulic joystick. The transmission can be de-clutched by the operation of the brake pedal to increase the power available to the hydraulic pumps.

Axles

The front and rear axles with planetary hub reductions are built on the base of very reputed components. Fitted as standard, the front and rear limited slip differentials ensure the traction is optimal in all circumstances.

Engine

Coolant filter, crankcase ventilation oiltrap system, electric driven fuel feeding pump, external drains for engine oil and coolant, hydraulically driven fan with bi-direction flow for core cleaning proportional to fluid temperature, mode selector switch for the engine power (Standard / Economy mode), preheating of induction air, three stage air cleaner with TURBO-2 pre-cleaner, inner filter, and external plugging indicator as at the dashboard, self-diagnosis function, two fuel filters, and water separator with fuel filter.

Drive line and brake system

Dual brake circuits with accumulator, dual service brake pedals, gear box which can be declutched when braking, gear box with diagnosis and monitoring indicator, and electronic plug for a fast adjustment. Kickdown and travelling direction selection can be done via the lever at the left of the steering wheel or on the joystick. Limited slip differential on front and rear axles, mode selector switch for the transmission (Manual / Auto 1<>4 / Auto 2<>4), parking brake on the transmission, electric-hydraulic secondary brake system, and starting safety system. Tires: 29.5-25-22PR (L3).

Lifting and hydraulic system

Automatic boom kick out Automatic bucket return to dig Fast couplers for hydraulic check FNR mono lever with 3rd function lever for third section General purpose bucket 6.3 yd³ (4.8 m³) SAE, heaped Hydraulic control valve with two sections Robust Z bar lifting system Variable piston and load sensing hydraulic system

Hydraulic

Emergency steering pump driven by electric motor Hydraulic 3rd function control valve Three hydraulic levers for 3 sections function Load isolation system (LIS) Two hydraulic levers for 2 sections function

Cab

The modular cab allows excellent visibility. Optimal ventilation is obtained by numerous ventilation outlets. Touch buttons control the air re-circulation air conditioning and heating systems. The air in the cab is filtered, and all necessary information is centralized in front of the operator. The main functions are actuated via switches located on a console at the right of the operator. Generous storage places are well located, and the cab, mounted on viscous elements and equipped with an air suspended seat, offers better comfort for the operator.
