TL 80 Terex TL 80 Specifications & Technical Data (2015—2016)

The Terex TL 80 is a wheel loader manufactured by Terex from 2015 to 2016. It has a weight of 4.9 tons and a transport length of 4…

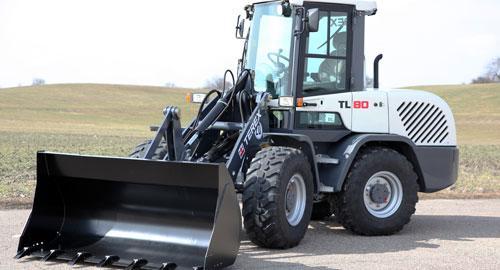

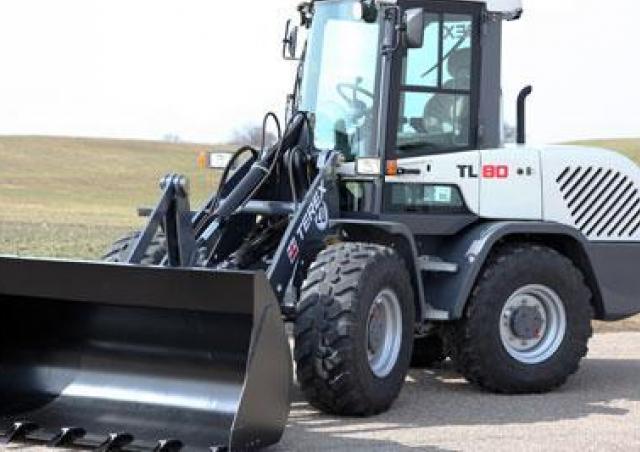

The Terex TL 80 is a wheel loader manufactured by Terex from 2015 to 2016. It has a weight of 4.9 tons and a transport length of 4.96 meters. The bucket capacity is 0.8 cubic meters with a bucket width of 1.85 meters. The maximum discharge height is 2.55 meters. The transport width is 1.85 meters and the transport height is 2.67 meters. It has a lifting force of 48 kN and a turning radius outside of 4.14 meters. The special equipment includes a quick hitch mechanism and telescopic capabilities.

TL 80

Years of manufacture: 2015—2016

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 80 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.9 t

Standard tyres: 405/70 R 18

Bucket width: 1.85 m

Bucket capacity: 0.8 m³

Steering mode: KL

Transport length: 4.96 m

Transport width: 1.85 m

Transport height: 2.67 m

Travel speed: 36 km/h

Max. discharge height: 2.55 m

Turning radius outside: 4.14 m

Lifting force: 48 kN

Model series: TL

More technical details, like: bucket capacity min., bucket capacity max., engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Terex TL 80 FAQ

When was the Terex TL 80 manufactured?

The Terex TL 80 was manufactured from 2015 to 2016.

How much does the Terex TL 80 weigh?

The Terex TL 80 weighs 4.9 tons.

What are the transport dimensions of the Terex TL 80 wheel loader?

The Terex TL 80 has a transport length of 4.96 meters, a transport width of 1.85 meters, and a transport height of 2.67 meters.

What is the travel speed of the Terex TL 80 wheel loader?

The Terex TL 80 wheel loader has a travel speed of 36 km/h.

What is the standard tyre size of the Terex TL 80 wheel loader?

The Terex TL 80 wheel loader is equipped with standard tyres sized 405/70 R 18.

What are the maneuverability specifications of the Terex TL 80 wheel loader?

The Terex TL 80 wheel loader has an articulated-frame steering mode and an outside turning radius of 4.14 meters.

What is the lifting force of the Terex TL 80 wheel loader?

The Terex TL 80 wheel loader has a lifting force of 48 kN.

What is the maximum discharge height of the Terex TL 80?

The Terex TL 80 has a maximum discharge height of 2.55 meters.

What are the bucket specifications of the Terex TL 80 wheel loader?

The Terex TL 80 wheel loader has a bucket capacity of 0.8 cubic meters and a bucket width of 1.85 meters.

How much is a Terex TL 80 Wheel loader (2015u20132016) worth?

The residual value of the Terex TL 80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
