TL 70 S Terex TL 70 S Specifications & Technical Data (2014—2014)

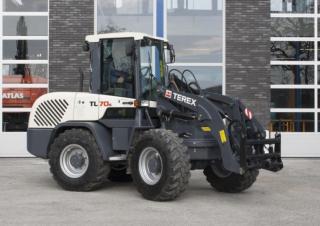

The Terex TL 70 S is a wheel loader manufactured by Terex in 2014. It has a weight of 5.2 tons and a transport length of 4.96 mete…

The Terex TL 70 S is a wheel loader manufactured by Terex in 2014. It has a weight of 5.2 tons and a transport length of 4.96 meters. The bucket capacity is 0.7 cubic meters, with a bucket width of 1.85 meters. The maximum discharge height is 2.6 meters. It has a travel speed of 36 km/h and a transport width and height of 1.85 meters and 2.67 meters respectively. The lifting force is 44.6 kN and the turning radius outside is 4.15 meters. The maximum bucket capacity is 1 cubic meter, while the minimum is 0.7 cubic meters.

Wheel Loaders Terex TL 70 S

Technical specs - TL 70 S Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.2 t
Standard tyres
12.5-20 MPT 10
Bucket width
1.85 m
Bucket capacity
0.7 m³
Bucket capacity min.
0.7 m³
Bucket capacity max.
1 m³
Steering mode
KL
Transport length
4.96 m
Transport width
1.85 m
Transport height
2.67 m
Travel speed
36 km/h
Max. discharge height
2.6 m
Turning radius outside
4.15 m
Lifting force
44.6 kN
Model series
TL
Engine manuf.
Deutz
Engine type
D2011 L4
Engine power
44 kW
Displacement
3.1 l
Revolutions at max torque
2400 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex TL 70 S FAQ

When was the Terex TL 70 S manufactured?

The Terex TL 70 S was manufactured in 2014.

How much does the Terex TL 70 S wheel loader weigh?

The Terex TL 70 S wheel loader weighs 5.2 tons.

What are the transport dimensions of the Terex TL 70 S wheel loader?

The Terex TL 70 S has a transport length of 4.96 meters, a transport width of 1.85 meters, and a transport height of 2.67 meters.

What is the travel speed of the Terex TL 70 S wheel loader?

The Terex TL 70 S has a travel speed of 36 km/h.

What are the undercarriage specifications of the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader is equipped with standard tyres sized 12.5-20 MPT 10.

What are the maneuverability specifications of the Terex TL 70 S wheel loader?

The Terex TL 70 S has an articulated-frame steering system and an outside turning radius of 4.15 meters.

What is the lifting force of the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader has a lifting force of 44.6 kN.

What is the maximum discharge height of the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader has a maximum discharge height of 2.6 meters.

What are the bucket specifications of the Terex TL 70 S wheel loader?

The Terex TL 70 S wheel loader has a bucket capacity ranging from 0.7 to 1 cubic meters and a bucket width of 1.85 meters.
