TL 260 Terex TL 260 Specifications & Technical Data (2006—2016)

The Terex TL 260 is a wheel loader manufactured by Terex from 2006 to 2016. It has a weight of 14.4 tons and a transport length of…

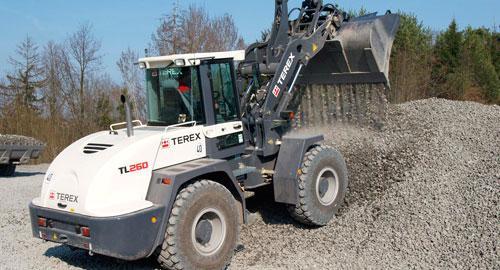

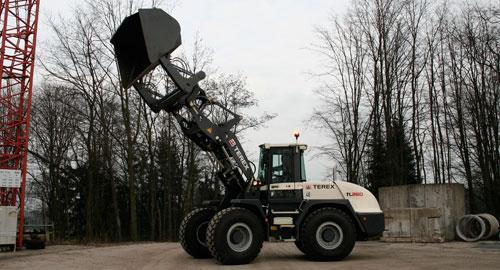

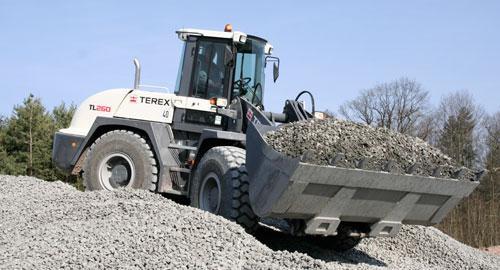

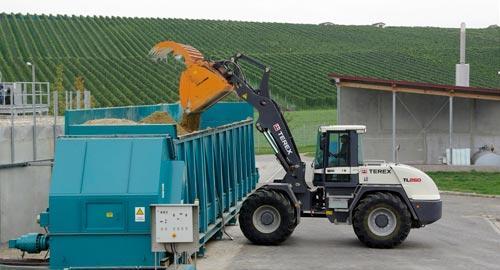

The Terex TL 260 is a wheel loader manufactured by Terex from 2006 to 2016. It has a weight of 14.4 tons and a transport length of 7.23 meters. The bucket capacity is 2.5 cubic meters with a width of 2.5 meters. The maximum discharge height is 2.92 meters. It has a travel speed of 40 km/h and a transport width of 2.5 meters. The transport height is 3.26 meters. The lifting force is 141 kN and the turning radius outside is 6.08 meters. The bucket capacity ranges from a minimum of 2.5 cubic meters to a maximum of 4.5 cubic meters. It is equipped with a quick hitch mechanism.

TL 260

Years of manufacture: 2006—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 260 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.4 t

Standard tyres: 20.5-25

Bucket width: 2.5 m

Bucket capacity: 2.5 m³

Bucket capacity min.: 2.5 m³

Bucket capacity max.: 4.5 m³

Steering mode: KL

Transport length: 7.23 m

Transport width: 2.5 m

Transport height: 3.26 m

Travel speed: 40 km/h

Max. discharge height: 2.92 m

Turning radius outside: 6.08 m

Lifting force: 141 kN

Model series: TL

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 128 kW

Displacement: 6.7 l

Revolutions at max torque: 2200 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Terex TL 260 FAQ

When was the Terex TL 260 manufactured?

The Terex TL 260 was manufactured from 2006 to 2016.

How much does the Terex TL 260 wheel loader weigh?

The Terex TL 260 wheel loader weighs 14.4 tons.

What are the transport dimensions of the Terex TL 260 wheel loader?

The Terex TL 260 has a transport length of 7.23 meters, a transport width of 2.5 meters, and a transport height of 3.26 meters.

What is the travel speed of the Terex TL 260 wheel loader?

The Terex TL 260 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Terex TL 260 wheel loader?

The Terex TL 260 wheel loader is equipped with standard tyres sized 20.5-25.

What are the maneuverability specifications of the Terex TL 260 wheel loader?

The Terex TL 260 wheel loader has an articulated-frame steering system and an outside turning radius of 6.08 meters.

What is the lifting force of the Terex TL 260 wheel loader?

The Terex TL 260 wheel loader has a lifting force of 141 kN.

What is the maximum discharge height of the Terex TL 260 wheel loader?

The Terex TL 260 wheel loader has a maximum discharge height of 2.92 meters.

What are the specifications of the bucket on the Terex TL 260 wheel loader?

The Terex TL 260 wheel loader has a bucket with a capacity ranging from 2.5 to 4.5 cubic meters and a width of 2.5 meters.
