TL 120 Terex TL 120 Specifications & Technical Data (2014—2016)

The Terex TL 120 is a wheel loader manufactured by Terex from 2014 to 2016. It has a weight of 7 tons and a transport length of 5.…

The Terex TL 120 is a wheel loader manufactured by Terex from 2014 to 2016. It has a weight of 7 tons and a transport length of 5.63 meters. The bucket capacity is 1.2 cubic meters, with a bucket width of 2.1 meters. The maximum discharge height is 2.75 meters. It has a travel speed of 36 km/h and a transport width of 2.1 meters. The transport height is 2.78 meters. The lifting force is 71 kN, and the turning radius outside is 4.64 meters. The bucket capacity ranges from 1.2 to 1.8 cubic meters. It is equipped with a quick hitch mechanism and telescopic capabilities.

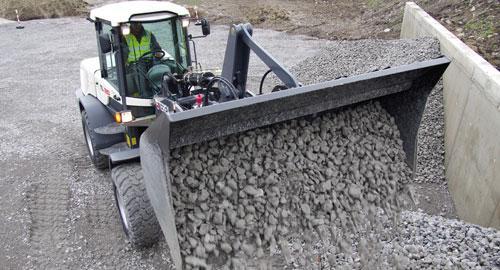

Wheel Loaders Terex TL 120
Wheel Loaders Terex TL 120
Wheel Loaders Terex TL 120
Wheel Loaders Terex TL 120

Technical specs - TL 120 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Standard tyres
405/70 R20
Bucket width
2.1 m
Bucket capacity
1.2 m³
Bucket capacity min.
1.2 m³
Bucket capacity max.
1.8 m³
Steering mode
KL
Transport length
5.63 m
Transport width
2.1 m
Transport height
2.78 m
Travel speed
36 km/h
Max. discharge height
2.75 m
Turning radius outside
4.64 m
Lifting force
71 kN
Model series
TL
Engine manuf.
Deutz
Engine type
TCD3.6 L04
Engine power
74.4 kW
Displacement
3.6 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
IIIB

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TL 120 FAQ

When was the Terex TL 120 manufactured?

The Terex TL 120 was manufactured from 2014 to 2016.

How much does the Terex TL 120 wheel loader weigh?

The Terex TL 120 wheel loader weighs 7 tons.

What are the transport dimensions of the Terex TL 120 wheel loader?

The Terex TL 120 has a transport length of 5.63 meters, a transport width of 2.1 meters, and a transport height of 2.78 meters.

What is the travel speed of the Terex TL 120 wheel loader?

The Terex TL 120 has a travel speed of 36 km/h.

What are the undercarriage specifications of the Terex TL 120 wheel loader?

The Terex TL 120 wheel loader is equipped with standard tyres sized 405/70 R20.

What are the maneuverability specifications of the Terex TL 120 wheel loader?

The Terex TL 120 wheel loader has an articulated-frame steering mode and an outside turning radius of 4.64 meters.

What is the lifting force of the Terex TL 120 wheel loader?

The Terex TL 120 wheel loader has a lifting force of 71 kN.

What is the maximum discharge height of the Terex TL 120?

The Terex TL 120 has a maximum discharge height of 2.75 meters.

What are the specifications of the bucket on the Terex TL 120 wheel loader?

The Terex TL 120 wheel loader has a bucket with a capacity ranging from 1.2 to 1.8 cubic meters and a width of 2.1 meters.

How much is a Terex TL 120 Wheel loader (2014u20132016) worth?

The residual value of the Terex TL 120 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
