TL 100 Terex TL 100 Specifications & Technical Data (2015—2016)

The Terex TL 100 is a wheel loader manufactured by Terex from 2015 to 2016. It has a weight of 5.8 tons and a transport length of …

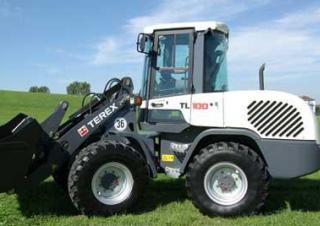

The Terex TL 100 is a wheel loader manufactured by Terex from 2015 to 2016. It has a weight of 5.8 tons and a transport length of 5.31 meters. The bucket capacity is 1 cubic meter, with a bucket width of 1.95 meters. The maximum discharge height is 2.64 meters. It has a travel speed of 20 km/h and a transport width of 1.95 meters. The transport height is 2.76 meters. The lifting force is 61 kN. The turning radius outside is 4.45 meters. The machine is equipped with a quick hitch mechanism and telescopic capabilities. The maximum bucket capacity is 1.55 cubic meters, while the minimum is 1 cubic meter.

TL 100

Years of manufacture: 2015—2016

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 100 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 405/70 R 20

Bucket width: 1.95 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Bucket capacity max.: 1.55 m³

Steering mode: KL

Transport length: 5.31 m

Transport width: 1.95 m

Transport height: 2.76 m

Travel speed: 20 km/h

Max. discharge height: 2.64 m

Turning radius outside: 4.45 m

Lifting force: 61 kN

Model series: TL

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 55.4 kW

Displacement: 3.6 l

Max. torque: 390/1300 Nm

Cylinder bore x stroke: 98x120 mm

Emission level: Tier 4

More technical details, like: dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Terex TL 100 FAQ

When was the Terex TL 100 manufactured?

The Terex TL 100 was manufactured from 2015 to 2016.

How much does the Terex TL 100 weigh?

The Terex TL 100 weighs 5.8 tons.

What are the transport dimensions of the Terex TL 100 wheel loader?

The Terex TL 100 has a transport length of 5.31 meters, a transport width of 1.95 meters, and a transport height of 2.76 meters.

What is the travel speed of the Terex TL 100 wheel loader?

The Terex TL 100 has a travel speed of 20 km/h.

What are the undercarriage tyre specifications of the Terex TL 100 wheel loader?

The Terex TL 100 wheel loader has standard tyres sized 405/70 R 20.

What are the maneuverability specifications of the Terex TL 100 wheel loader?

The Terex TL 100 wheel loader has an outside turning radius of 4.45 meters and features articulated-frame steering.

What is the lifting force of the Terex TL 100 wheel loader?

The Terex TL 100 wheel loader has a lifting force of 61 kN.

What is the material handling capacity of the Terex TL 100 in terms of maximum discharge height?

The Terex TL 100 has a maximum discharge height of 2.64 meters.

What are the specifications of the bucket on the Terex TL 100 wheel loader?

The Terex TL 100 wheel loader has a bucket with a capacity ranging from 1 to 1.55 cubic meters and a width of 1.95 meters.
