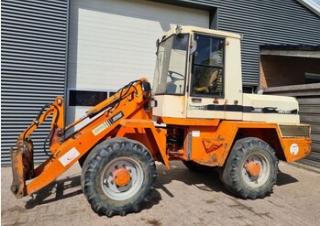

SKL 863 Terex-Schaeff SKL 863 Specifications & Technical Data (1998—2004)

The Terex-Schaeff SKL 863 is a wheel loader manufactured from 1998 to 2004. It has a weight of 8.1 tons and a transport length of …

The Terex-Schaeff SKL 863 is a wheel loader manufactured from 1998 to 2004. It has a weight of 8.1 tons and a transport length of 5.973 meters. The bucket capacity is 2.4 cubic meters with a width of 2.2 meters. The maximum discharge height is 2.75 meters. It has a travel speed of 20 km/h and a transport width of 2.2 meters. The transport height is 2.96 meters. The lifting force is 82.68 kN. The turning radius outside is 4.9 meters. It is equipped with a quick hitch mechanism.

Wheel Loaders Terex-Schaeff SKL 863

Technical specs - SKL 863 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Standard tyres
405/80 R 25
Bucket width
2.2 m
Bucket capacity
2.4 m³
Bucket capacity min.
2.4 m³
Steering mode
KL
Transport length
5.973 m
Transport width
2.2 m
Transport height
2.96 m
Travel speed
20 km/h
Max. discharge height
2.75 m
Turning radius outside
4.9 m
Lifting force
82.68 kN
Model series
SKL
Engine manuf.
Perkins
Engine type
1004.4
Engine power
74 kW
Displacement
4 l
Revolutions at max torque
2200 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex-Schaeff SKL 863 FAQ

When was the Terex-Schaeff SKL 863 manufactured?

The Terex-Schaeff SKL 863 was manufactured from 1998 to 2004.

How much does the Terex-Schaeff SKL 863 weigh?

The Terex-Schaeff SKL 863 weighs 8.1 tons.

What are the transport dimensions of the Terex-Schaeff SKL 863 wheel loader?

The Terex-Schaeff SKL 863 has a transport length of 5.97 meters, a transport width of 2.2 meters, and a transport height of 2.96 meters.

What is the travel speed of the Terex-Schaeff SKL 863 wheel loader?

The Terex-Schaeff SKL 863 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Terex-Schaeff SKL 863 wheel loader?

The Terex-Schaeff SKL 863 wheel loader is equipped with standard tyres sized 405/80 R 25.

What are the maneuverability specifications of the Terex-Schaeff SKL 863 wheel loader?

The Terex-Schaeff SKL 863 has an articulated-frame steering mode and an outside turning radius of 4.9 meters.

What is the lifting force of the Terex-Schaeff SKL 863 wheel loader?

The Terex-Schaeff SKL 863 wheel loader has a lifting force of 82.68 kN.

What is the maximum discharge height of the Terex-Schaeff SKL 863?

The Terex-Schaeff SKL 863 has a maximum discharge height of 2.75 meters.

What are the specifications of the bucket on the Terex-Schaeff SKL 863 wheel loader?

The Terex-Schaeff SKL 863 wheel loader has a bucket capacity of 2.4 cubic meters, a minimum bucket capacity of 2.4 cubic meters, and a bucket width of 2.2 meters.
