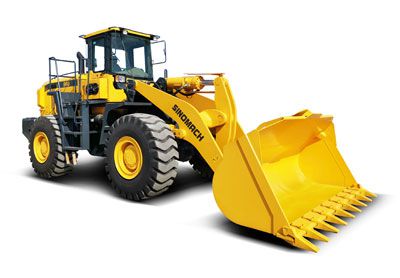

Technical specs - 966 Sinomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.5 t

Standard tyres: 23.5-25-20PR L-3

Bucket width: 3.048 m

Bucket capacity: 3.7 m³

Bucket capacity min.: 3.7 m³

Transport length: 8.714 m

Transport width: 2.9 m

Transport height: 3.55 m

Travel speed: 35.37 km/h

Max. discharge height: 3.325 m

Turning radius outside: 6.24 m

Lifting force: 180 kN

Engine manuf.: Shangchai

Engine type: SC11CB240.1G2B1

Engine power: 178 kW

No. of cylinders: 2

More technical details, like: bucket capacity max., steering mode, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

966 Sinomach Specification for Global (EN)

Sinomach 966 FAQ

When was the Sinomach 966 manufactured?

The Sinomach 966 was first produced in 2023.

How much does the Sinomach 966 wheel loader weigh?

The Sinomach 966 wheel loader weighs 19.5 tons.

What are the transport dimensions of the Sinomach 966 wheel loader?

The Sinomach 966 has a transport length of 8.71 meters, a transport width of 2.9 meters, and a transport height of 3.55 meters.

What is the travel speed of the Sinomach 966 wheel loader?

The Sinomach 966 wheel loader has a travel speed of 35.37 km/h.

What are the undercarriage tyre specifications of the Sinomach 966 wheel loader?

The Sinomach 966 wheel loader is equipped with standard tyres sized 23.5-25-20PR L-3.

What is the turning radius of the Sinomach 966 wheel loader?

The Sinomach 966 wheel loader has an outside turning radius of 6.24 meters.

What are the power ratings of the Sinomach 966 wheel loader?

The source data does not provide power ratings for the Sinomach 966 wheel loader.

What is the material handling capacity of the Sinomach 966 in terms of discharge height?

The Sinomach 966 has a maximum discharge height of 3.33 meters.

What are the specifications of the bucket on the Sinomach 966 wheel loader?

The Sinomach 966 wheel loader has a bucket capacity of 3.7 cubic meters, a minimum bucket capacity of 3.7 cubic meters, and a bucket width of 3.05 meters.
