668D SEM 668D Specifications & Technical Data (2020—2026)

The SEM 668D is a wheel loader manufactured since 2020. It has a weight of 20.117 tons and a transport length of 8.541 meters. The…

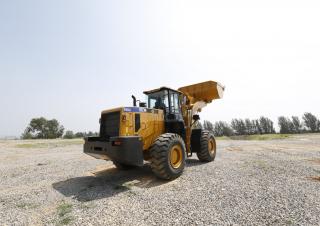

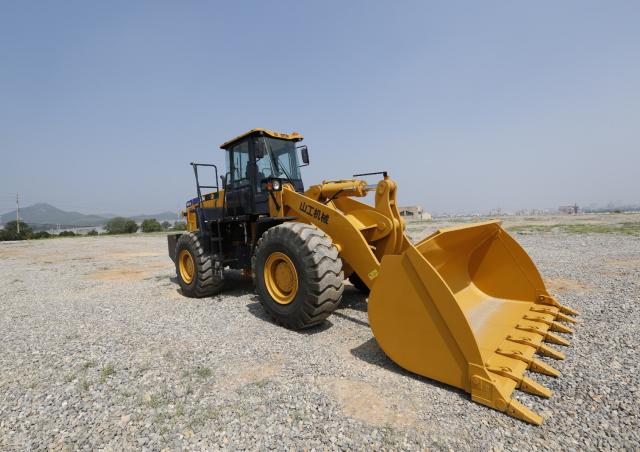

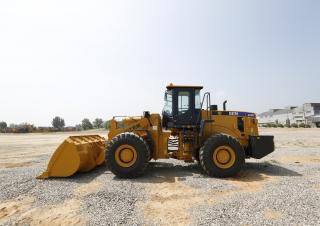

The SEM 668D is a wheel loader manufactured since 2020. It has a weight of 20.117 tons and a transport length of 8.541 meters. The bucket width is 3.092 meters and the maximum discharge height is 3.051 meters. It has a travel speed of 32 km/h and a transport width and height of 3.092 meters and 3.458 meters, respectively. The bucket capacity ranges from 2.9 to 5.5 cubic meters.

668D

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 668D SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.117 t

Standard tyres: 23.5-25

Bucket width: 3.092 m

Bucket capacity min.: 2.9 m³

Bucket capacity max.: 5.5 m³

Steering mode: KL

Transport length: 8.541 m

Transport width: 3.092 m

Transport height: 3.458 m

Travel speed: 32 km/h

Max. discharge height: 3.051 m

Engine manuf.: Weichai

Engine type: WD10G240E21

Engine power: 178 kW

Displacement: 9.726 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity, turning radius outside, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

668D SEM Specification for Europe (EN)

SEM 668D FAQ

When was the SEM 668D manufactured?

The SEM 668D was first produced in 2020.

How much does the SEM 668D wheel loader weigh?

The SEM 668D wheel loader weighs 20.12 tons.

What are the transport dimensions of the SEM 668D wheel loader?

The SEM 668D has a transport length of 8.54 meters, a transport width of 3.09 meters, and a transport height of 3.46 meters.

What is the travel speed of the SEM 668D wheel loader?

The SEM 668D wheel loader has a travel speed of 32 km/h.

What are the undercarriage specifications of the SEM 668D wheel loader?

The SEM 668D wheel loader is equipped with standard tyres sized 23.5-25.

What is the steering mode of the SEM 668D wheel loader?

The SEM 668D wheel loader uses articulated-frame steering.

What is the maximum discharge height of the SEM 668D wheel loader?

The SEM 668D wheel loader has a maximum discharge height of 3.05 meters.

What are the bucket specifications of the SEM 668D wheel loader?

The SEM 668D wheel loader has a bucket with a maximum capacity of 5.5 cubic meters, a minimum capacity of 2.9 cubic meters, and a width of 3.09 meters.
