636D SEM 636D Specifications & Technical Data (2020—2026)

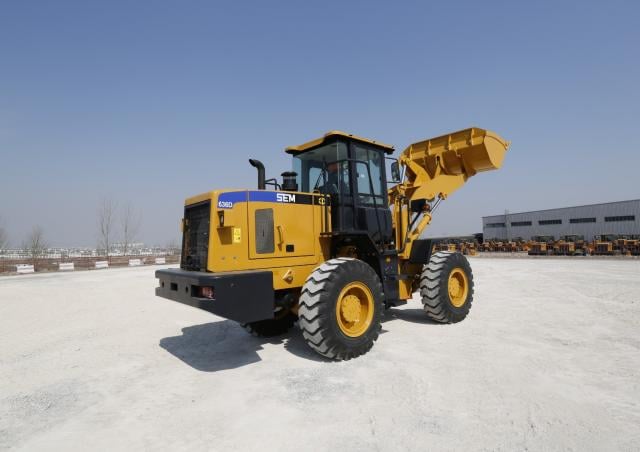

The SEM 636D Wheel Loader, manufactured since 2020, is a construction machine with a weight of 10.133 tons. It has a transport len…

The SEM 636D Wheel Loader, manufactured since 2020, is a construction machine with a weight of 10.133 tons. It has a transport length of 7.422 meters and a bucket width of 2.354 meters. The maximum discharge height is 2.989 meters. The transport width is 2.354 meters and the transport height is 3.182 meters. The bucket capacity ranges from a minimum of 1.5 cubic meters to a maximum of 2.5 cubic meters.

636D

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 636D SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.133 t

Standard tyres: 17.5-25

Bucket width: 2.354 m

Bucket capacity min.: 1.5 m³

Bucket capacity max.: 2.5 m³

Steering mode: KL

Transport length: 7.422 m

Transport width: 2.354 m

Transport height: 3.182 m

Max. discharge height: 2.989 m

Model series: D

Engine manuf.: Weichai

Engine type: WP6G125E22

Engine power: 92 kW

Displacement: 6.754 l

Revolutions at max torque: 2200 rpm

Max. torque: 500 Nm

No. of cylinders: 6

Cylinder bore x stroke: 105x130 mm

More technical details, like: bucket capacity, travel speed, turning radius outside, lifting force, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

636D SEM Specification for Europe (EN)

SEM 636D FAQ

When was the SEM 636D manufactured?

The SEM 636D was first produced in 2020.

How much does the SEM 636D wheel loader weigh?

The SEM 636D wheel loader weighs 10.13 tons.

What are the transport dimensions of the SEM 636D wheel loader?

The SEM 636D has a transport length of 7.42 meters, a transport width of 2.35 meters, and a transport height of 3.18 meters.

What are the tyre specifications of the SEM 636D wheel loader?

The SEM 636D wheel loader is equipped with standard tyres sized 17.5-25.

What is the steering mode of the SEM 636D wheel loader?

The SEM 636D wheel loader uses articulated-frame steering.

What is the maximum discharge height of the SEM 636D wheel loader?

The SEM 636D wheel loader has a maximum discharge height of 2.99 meters.

What are the specifications of the bucket on the SEM 636D wheel loader?

The SEM 636D wheel loader's bucket has a maximum capacity of 2.5 cubic meters, a minimum capacity of 1.5 cubic meters, and a width of 2.35 meters.
