LG956L SDLG LG956L Specifications & Technical Data (2013—2018)

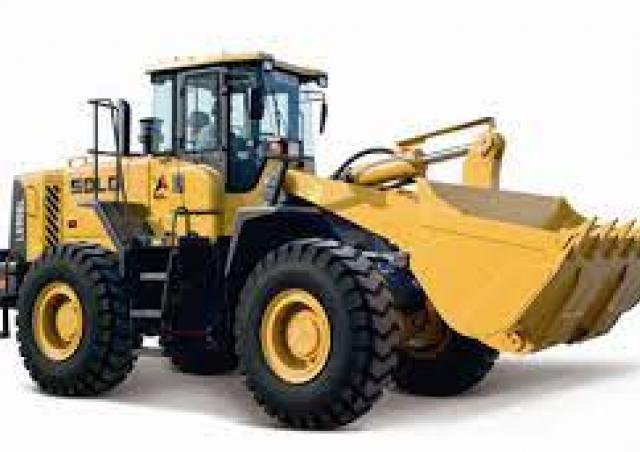

The SDLG LG956L is a wheel loader manufactured by SDLG from 2013 to 2018. It has a weight of 17 tons and a transport length of 8 m…

The SDLG LG956L is a wheel loader manufactured by SDLG from 2013 to 2018. It has a weight of 17 tons and a transport length of 8 meters. The bucket capacity is 2 cubic meters with a width of 3 meters. The maximum discharge height is 3 meters. It has a travel speed of 40 km/h and a transport width and height of 3 meters. The lifting force of this machine is 180 kN and it has a turning radius outside of 6 meters.

Wheel Loaders SDLG LG956L

Technical specs - LG956L SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.25 t
Standard tyres
23.5-25
Bucket width
3.09 m
Bucket capacity
2.7 m³
Steering mode
KL
Transport length
8.04 m
Transport width
3.06 m
Transport height
3.38 m
Travel speed
40.5 km/h
Max. discharge height
3.18 m
Turning radius outside
6.75 m
Lifting force
180 kN
Engine manuf.
N/A
Engine type
WD10G220E23
Engine power
162 kW
Max. torque
890 Nm
No. of cylinders
6
Cylinder bore x stroke
126x130 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

SDLG LG956L FAQ

When was the SDLG LG956L manufactured?

The SDLG LG956L was manufactured from 2013 to 2018.

How much does the SDLG LG956L wheel loader weigh?

The SDLG LG956L wheel loader weighs 17.25 tons.

What are the transport dimensions of the SDLG LG956L wheel loader?

The SDLG LG956L has a transport length of 8.04 meters, a transport width of 3.06 meters, and a transport height of 3.38 meters.

What is the travel speed of the SDLG LG956L wheel loader?

The SDLG LG956L wheel loader has a travel speed of 40.5 km/h.

What are the standard tyre specifications for the SDLG LG956L wheel loader?

The SDLG LG956L wheel loader is equipped with standard tyres sized 23.5-25.

What are the maneuverability specifications of the SDLG LG956L wheel loader?

The SDLG LG956L has an articulated-frame steering mode and an outside turning radius of 6.75 meters.

What is the lifting force rating of the SDLG LG956L wheel loader, given that no engine power rating is provided?

The SDLG LG956L wheel loader has a lifting force rating of 180 kN; no engine power rating is provided in the available data.

What is the material handling capacity of the SDLG LG956L in terms of maximum discharge height?

The SDLG LG956L has a maximum discharge height of 3.18 meters.

What are the bucket specifications of the SDLG LG956L wheel loader?

The SDLG LG956L wheel loader has a bucket capacity of 2.7 cubic meters and a bucket width of 3.09 meters.

How much is a SDLG LG956L Wheel loader (2013u20132018) worth?

The residual value of the SDLG LG956L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

SDLG LG956L overview

Engine / Powertrain / Drivetrain

Main specifications and characters

Under the working conditions of loading machine, the fuel consumption is reduced by 7.8%, and the operating efficiency gains by 11.7%, thus an annual fuel consumption saving of more than 3500 RMB. Superb traction power With the machine keeps low gravity and engine, the power of inserting into material is more than 16.5 ton, the traction force is equipped with highest power. Perfect bucketing and grabbing capability and stability Equipped with turning-cylinder, the breakout force reach 175kN. With long wheelbase, lifting force of ground reach 15.4 ton. High rigid axle equipped more, increase the machine’s stability. Overturning loading capability is 5% higher. High rigidity structure can be competent for more complicated working condition, the frame experienced high intensity test for 200,000 times can still work reliably.
