9660 T-2 Schäffer 9660 T-2 Specifications & Technical Data (2021—2026)

The Schäffer 9660 T-2 is a telescopic wheel loader manufactured by Schäffer since 2021. With a weight of 13 tons, it has a transpo…

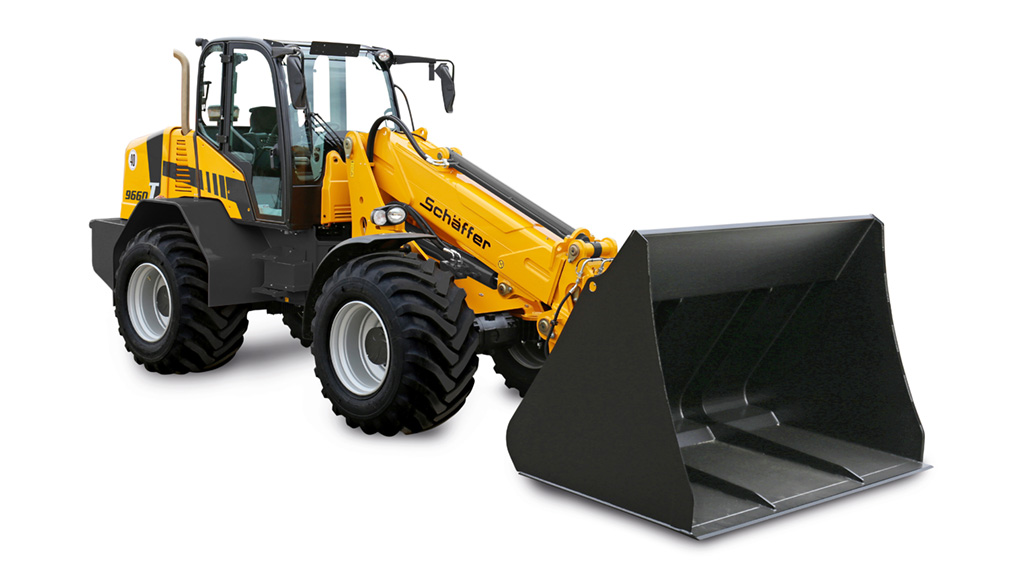

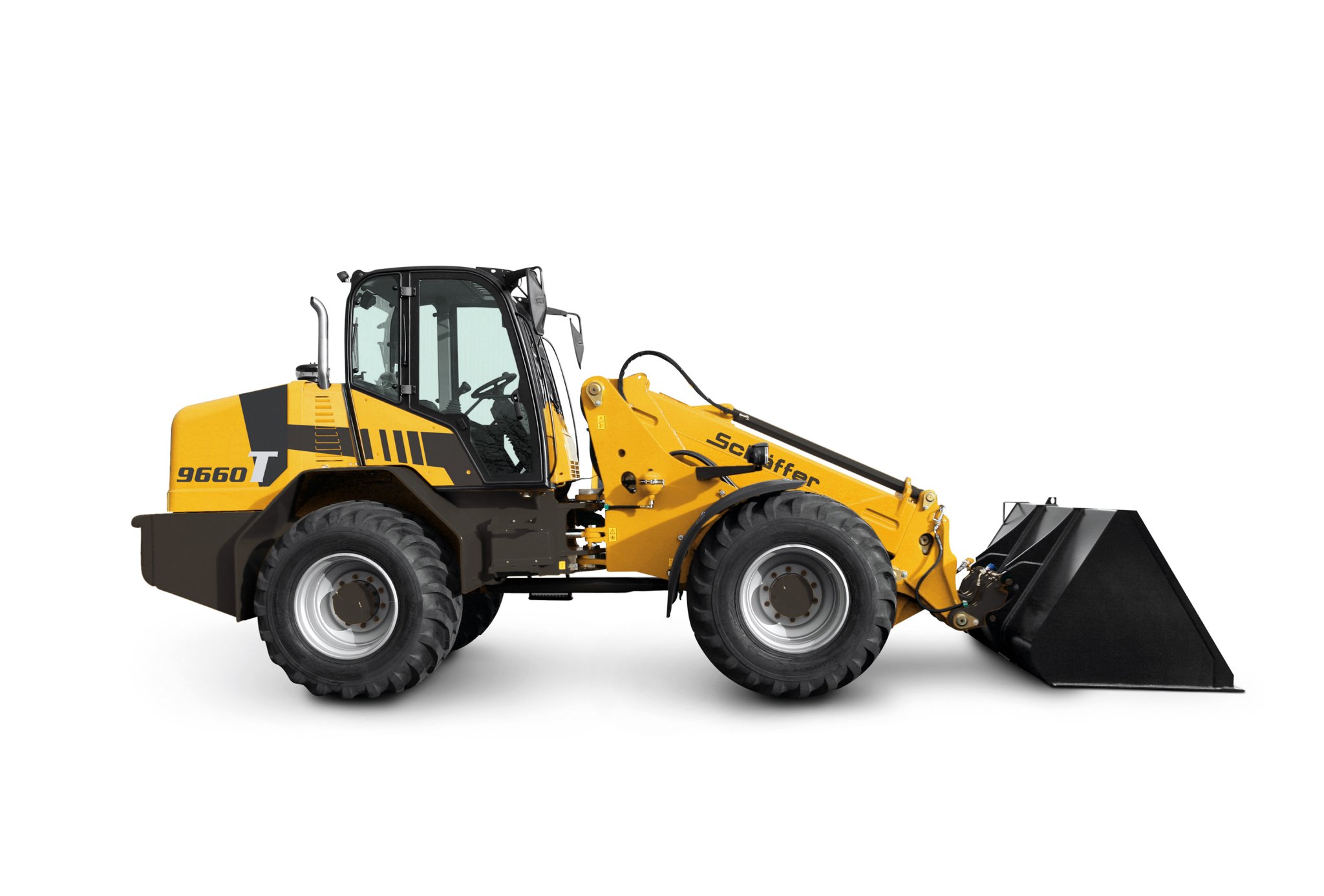

The Schäffer 9660 T-2 is a telescopic wheel loader manufactured by Schäffer since 2021. With a weight of 13 tons, it has a transport length of 6.75 meters and a transport width of 2.29 meters. The machine has a maximum discharge height of 5.1 meters and a travel speed of 30 km/h. Its transport height is 2.97 meters, and it has a turning radius outside of 4.65 meters. The special equipment of this construction machine is its telescopic feature.

9660 T-2

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 9660 T-2 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13 t

Standard tyres: 500/70-R24 AS

Steering mode: KL

Transport length: 6.75 m

Transport width: 2.29 m

Transport height: 2.97 m

Travel speed: 30 km/h

Max. discharge height: 5.1 m

Turning radius outside: 4.65 m

Lifting force: 51.87 kN

Engine manuf.: Deutz

Engine type: TCD5.2

Engine power: 130 kW

Displacement: 5.2 l

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

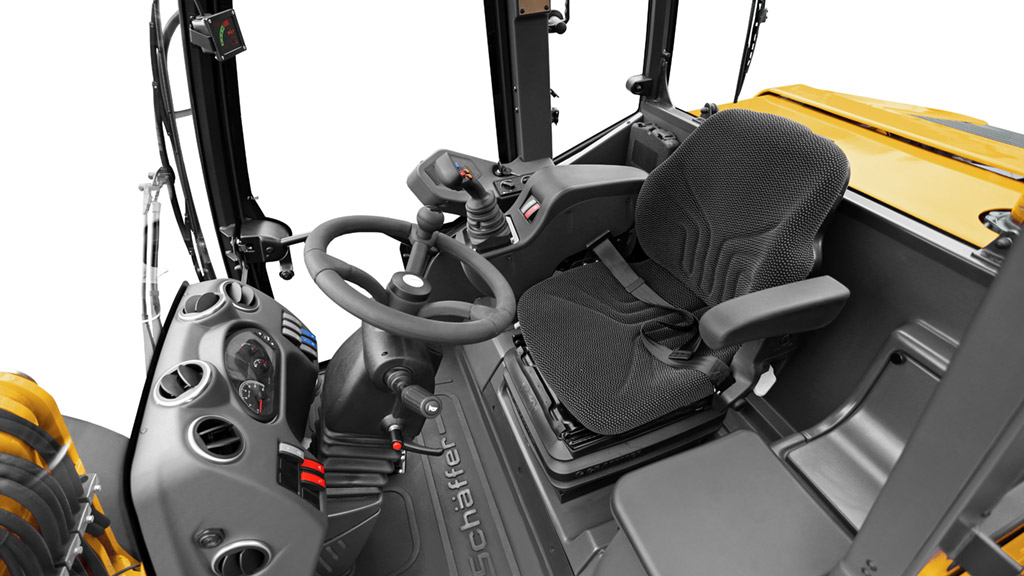

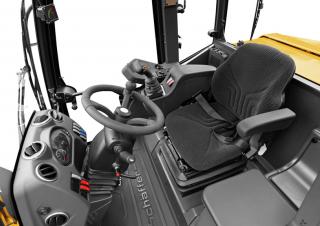

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 9660 T-2 FAQ

When was the Schu00e4ffer 9660 T-2 manufactured?

The Schu00e4ffer 9660 T-2 was first produced in 2021.

How much does the Schu00e4ffer 9660 T-2 weigh?

The Schu00e4ffer 9660 T-2 weighs 13 tons.

What are the transport dimensions of the Schu00e4ffer 9660 T-2 wheel loader?

The Schu00e4ffer 9660 T-2 has a transport length of 6.75 meters, a transport width of 2.29 meters, and a transport height of 2.97 meters.

What is the travel speed of the Schu00e4ffer 9660 T-2 wheel loader?

The Schu00e4ffer 9660 T-2 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Schu00e4ffer 9660 T-2 wheel loader?

The Schu00e4ffer 9660 T-2 wheel loader is equipped with standard tyres sized 500/70-R24 AS.

What are the maneuverability specifications of the Schu00e4ffer 9660 T-2 wheel loader?

The Schu00e4ffer 9660 T-2 has an articulated-frame steering system and an outside turning radius of 4.65 meters.

What is the lifting force of the Schu0000e4ffer 9660 T-2 wheel loader?

The Schu0000e4ffer 9660 T-2 wheel loader has a lifting force of 51.87 kN.

What is the maximum discharge height of the Schu00e4ffer 9660 T-2?

The Schu00e4ffer 9660 T-2 has a maximum discharge height of 5.1 meters.

How much is a Schu00e4ffer 9660 T-2 Wheel loader (2021u20132025) worth?

The residual value of the Schu00e4ffer 9660 T-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
