9660 T Schäffer 9660 T Specifications & Technical Data (2016—2021)

The Schäffer 9660 T is a telescopic wheel loader manufactured by Schäffer from 2016 to 2021. With a weight of 11 tons, it has a tr…

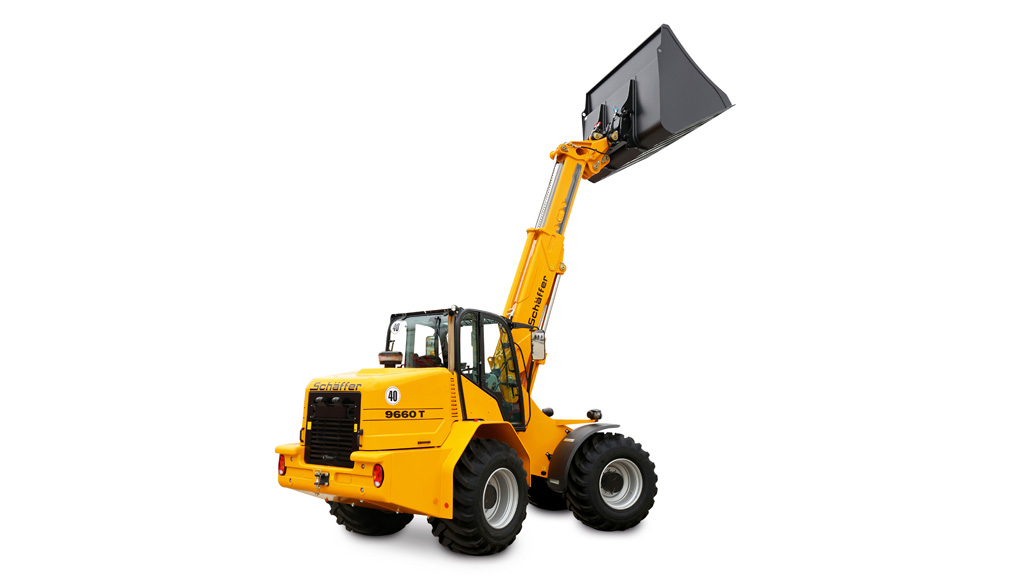

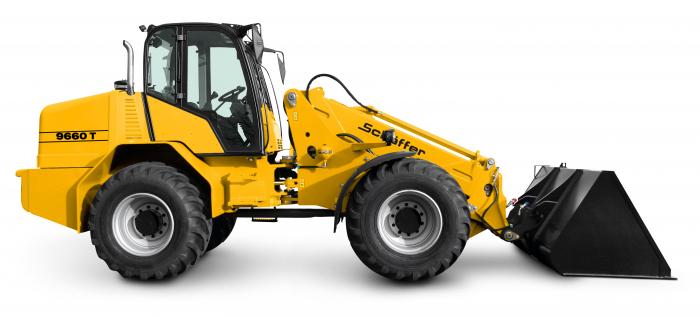

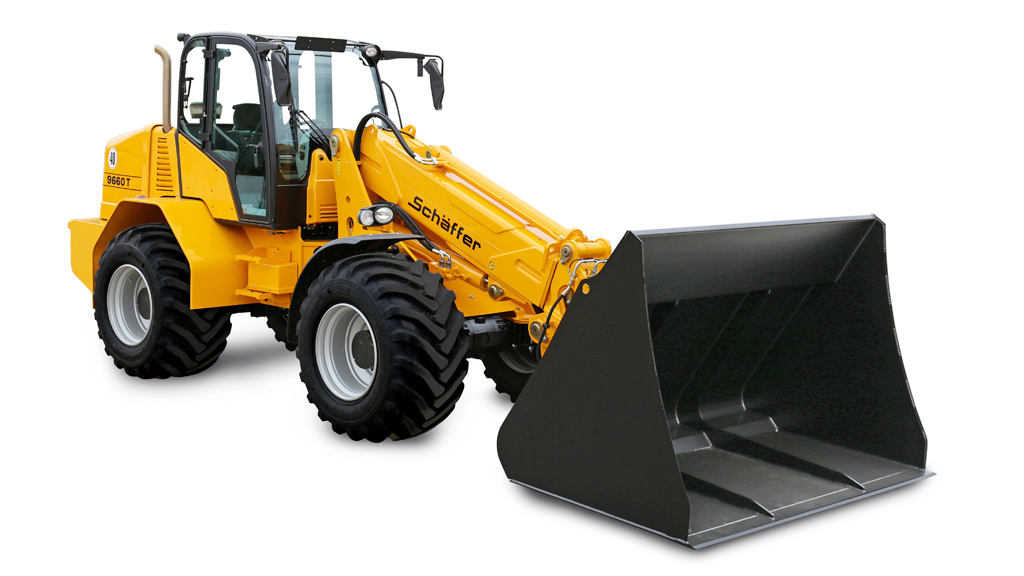

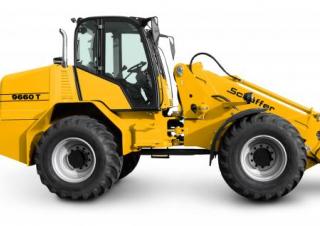

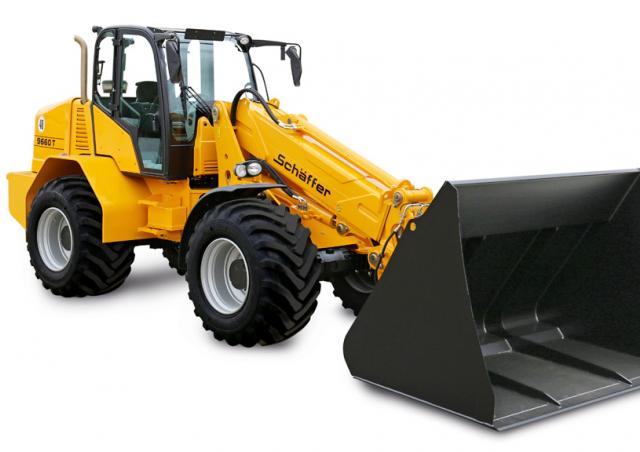

The Schäffer 9660 T is a telescopic wheel loader manufactured by Schäffer from 2016 to 2021. With a weight of 11 tons, it has a transport length of 6.75 meters and a transport width of 2.29 meters. The machine has a maximum discharge height of 5.1 meters and a travel speed of 30 km/h. Its transport height is 2.97 meters, and it has a turning radius outside of 4.65 meters. The special equipment of this construction machine is its telescopic feature.

9660 T

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 9660 T Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11 t

Standard tyres: 500/70-24 AS

Steering mode: KL

Transport length: 6.75 m

Transport width: 2.29 m

Transport height: 2.97 m

Travel speed: 30 km/h

Max. discharge height: 5.1 m

Turning radius outside: 4.65 m

Lifting force: 51.87 kN

Engine manuf.: Deutz

Engine type: N/A

Engine power: 115 kW

Displacement: 3.6 l

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 9660 T FAQ

When was the Schu00e4ffer 9660 T manufactured?

The Schu00e4ffer 9660 T was manufactured from 2016 to 2021.

How much does the Schu00e4ffer 9660 T wheel loader weigh?

The Schu00e4ffer 9660 T wheel loader weighs 11 tons.

What are the transport dimensions of the Schu00e4ffer 9660 T wheel loader?

The Schu00e4ffer 9660 T has a transport length of 6.75 meters, a transport width of 2.29 meters, and a transport height of 2.97 meters.

What is the travel speed of the Schu00e4ffer 9660 T wheel loader?

The Schu00e4ffer 9660 T wheel loader has a travel speed of 30 km/h.

What are the undercarriage tyre specifications of the Schu00e4ffer 9660 T wheel loader?

The Schu00e4ffer 9660 T wheel loader is equipped with standard tyres sized 500/70-24 AS.

What are the maneuverability specifications of the Schu00e4ffer 9660 T wheel loader?

The Schu00e4ffer 9660 T has an outside turning radius of 4.65 meters and features articulated-frame steering.

What is the lifting force of the Schu00e4ffer 9660 T wheel loader?

The Schu00e4ffer 9660 T wheel loader has a lifting force of 51.87 kN.

What is the maximum discharge height of the Schu00e4ffer 9660 T?

The Schu00e4ffer 9660 T has a maximum discharge height of 5.1 meters.
